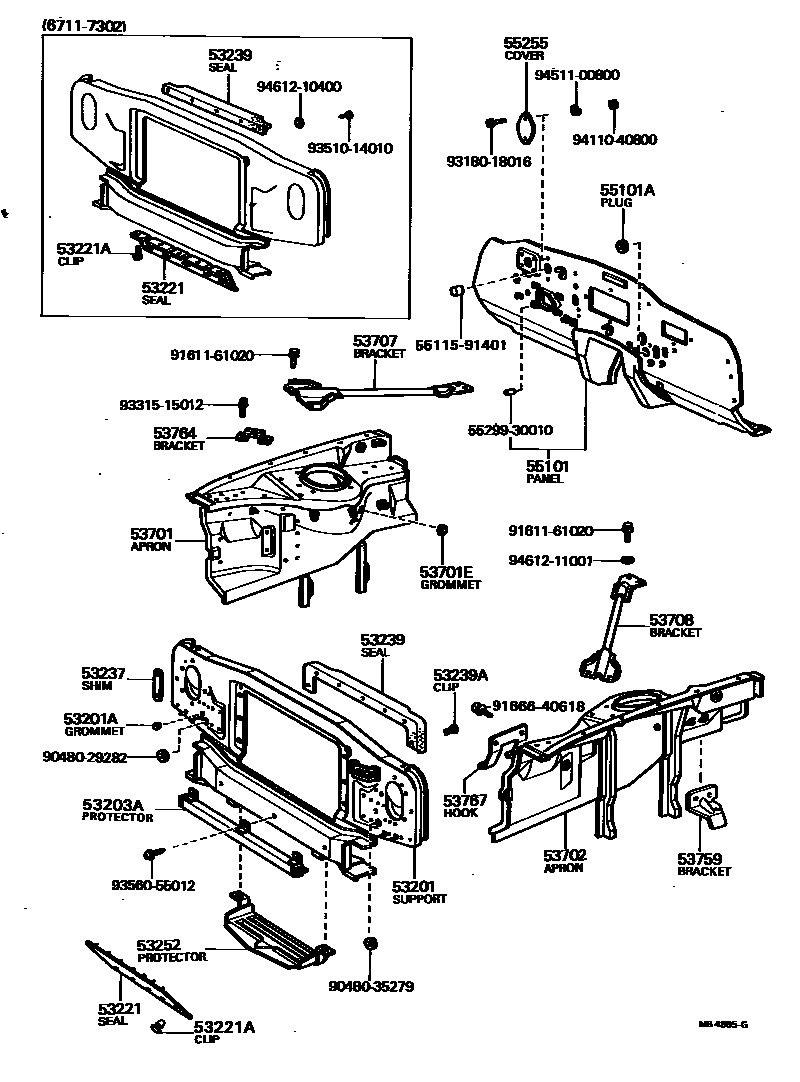

Toyota CENTURY — FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53201AGROMMET(FOR RADIATOR & FRONT APRON SUPPORT)
53203APROTECTOR, FRONT HARNESS
53221SEAL, MEMBER FRONT BODY MOUNTING TO FRONT FRAME
53221ACLIP(FOR MEMBER FRONT BODY MOUNTING TO FRONT FRAME SEAL)
53237SHIM, HEADLAMP
53239SEAL, RADIATOR & FRONT FENDER APRON
53239ACLIP(FOR RADIATOR & FRONT FENDER APRON SEAL)
53252PROTECTOR, OIL COOLER
53701APRON SUB-ASSY, FRONT FENDER, RH
53701EGROMMET(FOR FRONT FENDER APRON)
OD=15
53702APRON SUB-ASSY, FRONT FENDER, LH
53707BRACKET SUB-ASSY, ENGINE COMPARTMENT STRAINER, RH
53708BRACKET SUB-ASSY, ENGINE COMPARTMENT STRAINER, LH
53759BRACKET, FLEXIBLE HOSE MOUNTING, NO.1
53764BRACKET, INSPECTION SOCKET
53767HOOK, AIR CLEANER
55101PANEL SUB-ASSY, DASH
W/O CONSOLE
W/CONSOLE
55101APLUG, HOLE, NO.1(FOR DASH PANEL)
OD=15,ID=7
ACCELERATOR,OD=15
55255COVER, CLUTCH MASTER CYLINDER HOLE
5511591401
main55115-91401
5529930010CAP, TEE NUT(FOR 6MM)
main55299-30010
9048029282
main90480-29282
9048035279
main90480-35279
9161161020
main91611-61020
9166640618
main91666-40618
9318018016
main93180-18016
9331515012
main93315-15012
9351014010
main93510-14010
9356055012
main93560-55012
9411040800
main94110-40800
9451100800
main94511-00800
9461210400
main94612-10400
9461211001
main94612-11001
34 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota CENTURY
This section contains 34 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CENTURY. Key components include: SUPPORT SUB-ASSY, RADIATOR, GROMMET(FOR RADIATOR & FRONT APRON SUPPORT), PROTECTOR, FRONT HARNESS, SEAL, MEMBER FRONT BODY MOUNTING TO FRONT FRAME, CLIP(FOR MEMBER FRONT BODY MOUNTING TO FRONT FRAME SEAL).
