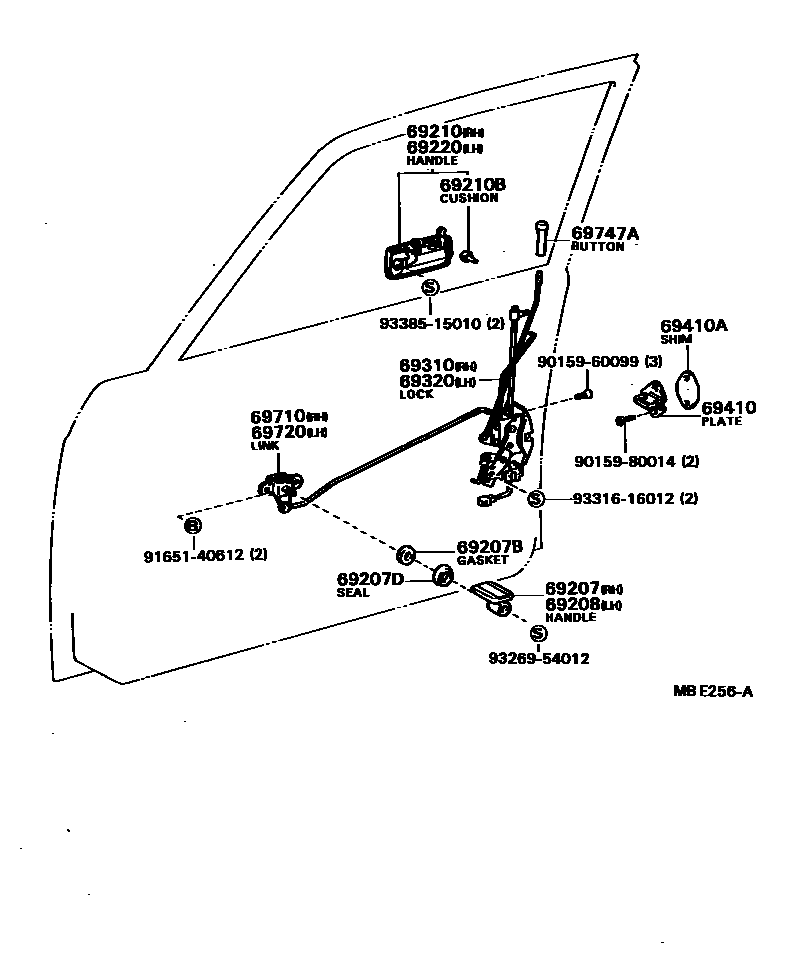

Toyota CENTURY — FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69206-91401i198210-198709

69207BGASKET(FOR FRONT DOOR INSIDE HANDLE)

main90430-11136×2i198210-198709

69207DSEAL(FOR FRONT DOOR INSIDE HANDLE)

main69265-91401×2i198210-198709

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69207-91402i198210-198709

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-40030i198210-198709

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021×2i198210-198709

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-40030i198210-198709

69310LOCK ASSY, FRONT DOOR, RH

main69310-40080i198210-198709

69320LOCK ASSY, FRONT DOOR, LH

main69320-40080i198210-198709

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12040×2i198210-198709

69410ASHIM, FRONT DOOR LOCK STRIKER PLATE

main69413-30010×2i198210-198709

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69710-40030i198210-198709

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69720-40030i198210-198709

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69077-91401×2i198508-198709

main69770-91401×2i198210-198508

9015960099

main90159-60099

9015980014

main90159-80014

9165140612

main91651-40612

9326954012

main93269-54012

9331616012

main93316-16012

9338515010

main93385-15010

20 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE for Toyota CENTURY

This section contains 20 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CENTURY. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, GASKET(FOR FRONT DOOR INSIDE HANDLE), SEAL(FOR FRONT DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
