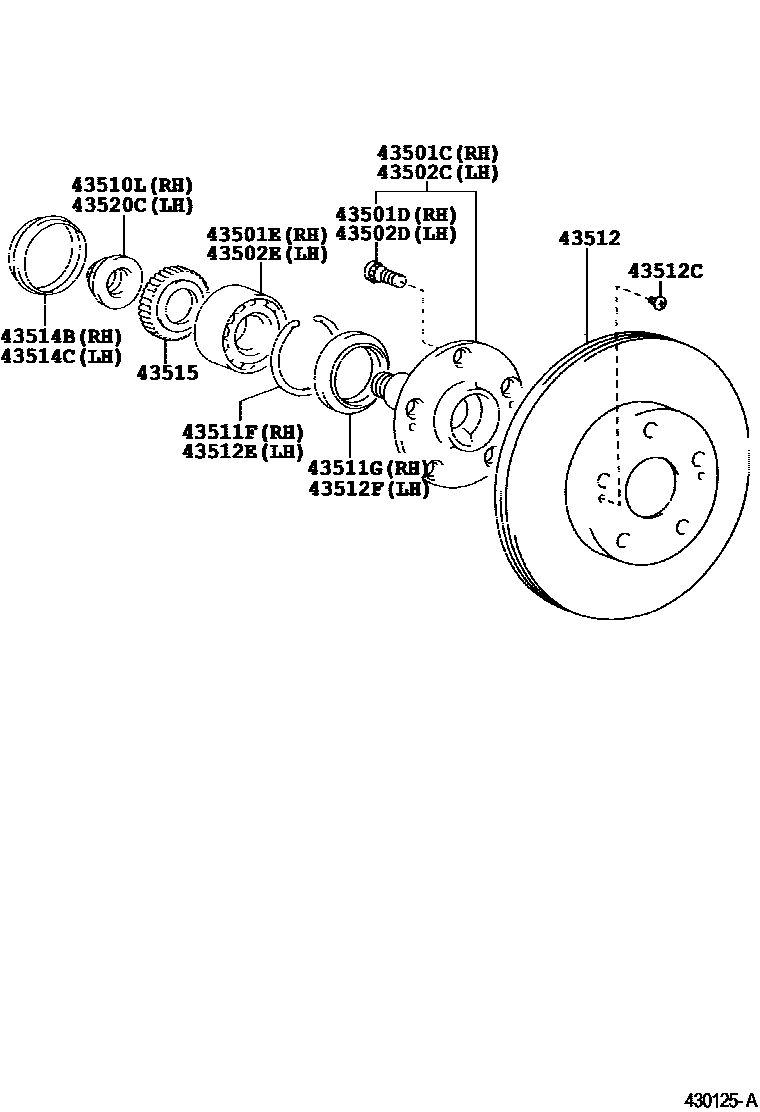

Toyota CENTURY — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-50021i200501-201503

main43502-50022i201504

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201504

main90942-02070×5i200501-201503

43501EBEARING (FOR FRONT AXLE HUB RH)

main90903-63006i199704-199707

main90903-63011i199707-200501

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-50021i200501-201503

main43502-50022i201504

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i201504

main90942-02070×5i199704-200501

43502EBEARING (FOR FRONT AXLE HUB LH)

main90903-63006i199704-199707

main90903-63011i199707-200501

43510LNUT (FOR STEERING KNUCKLE RH)

main90179-24005i199704-200501

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-82001i199704-200501

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90311-50016i199704-200501

43512DISC, FRONT

main43512-50152×2i199704-200501

43512CSCREW (FOR FRONT DISC)

main90155-60002×4i199704-200501

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-82001i199704-200501

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90311-50016i199704-200501

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-50010i199704-200501

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-50010i199704-200501

43515ROTOR, SKID CONTROL, FRONT

main43515-50010×2i199704-200501

43520CNUT (FOR STEERING KNUCKLE LH)

main90179-24005i199704-200501

17 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CENTURY

This section contains 17 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CENTURY. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH).
