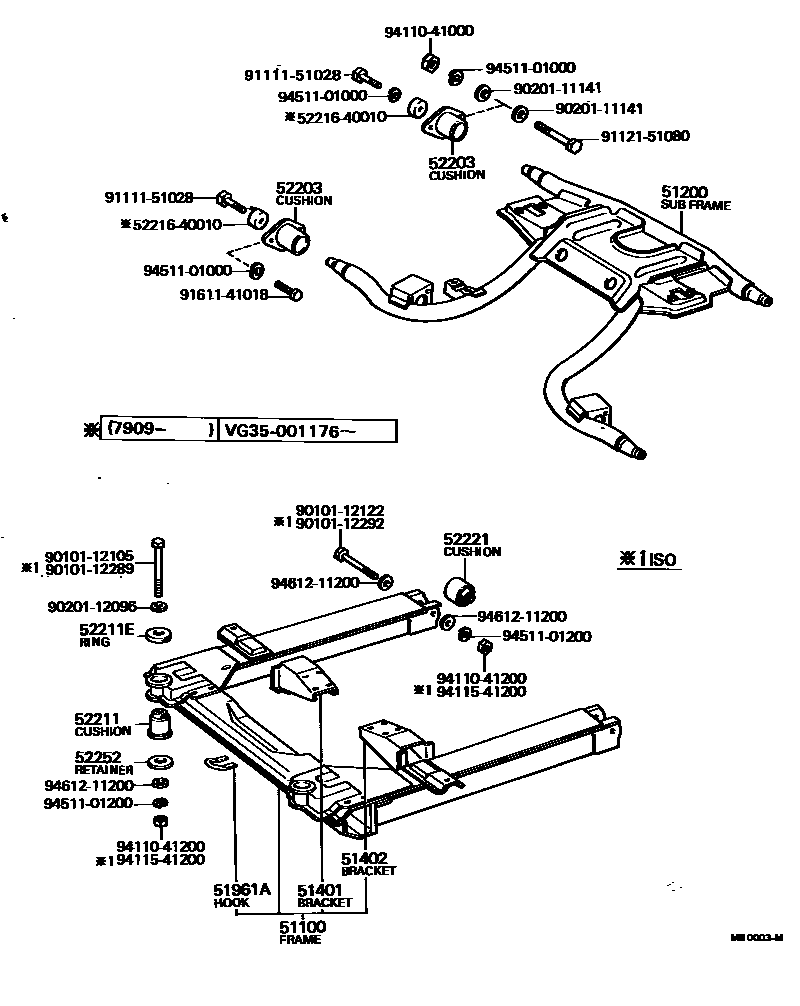

Toyota CENTURY — FRAME
51100FRAME ASSY
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51961AHOOK, NO.3
52203CUSHION SUB-ASSY, REAR FRAME
52211CUSHION, BODY MOUNTING, NO.1 UPPER
52211ERING(FOR BODY MOUNTING NO.1 CUSHION)
52221CUSHION, BODY MOUNT, NO.2 UPPER
52252RETAINER, FRONT FRAME REBOUND STOPPER
5221640010SPACER, BODY MOUNTING
main52216-40010
9010112105
main90101-12105
9010112122
main90101-12122
9010112289
main90101-12289
9010112292
main90101-12292
9020111141
main90201-11141
9020112096
main90201-12096
9111151028
main91111-51028
9112151080
main91121-51080
9161141018
main91611-41018
9411041000
main94110-41000
9411041200
main94110-41200
9411541200
main94115-41200
9451101000
main94511-01000
9451101200
main94511-01200
9461211200
main94612-11200
26 parts on this diagram · 1 diagram in section
FRAME for Toyota CENTURY
This section contains 26 genuine Toyota parts for the FRAME system of the Toyota CENTURY. Key components include: FRAME ASSY, SUB FRAME ASSY, REAR, BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH, BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH, HOOK, NO.3.
