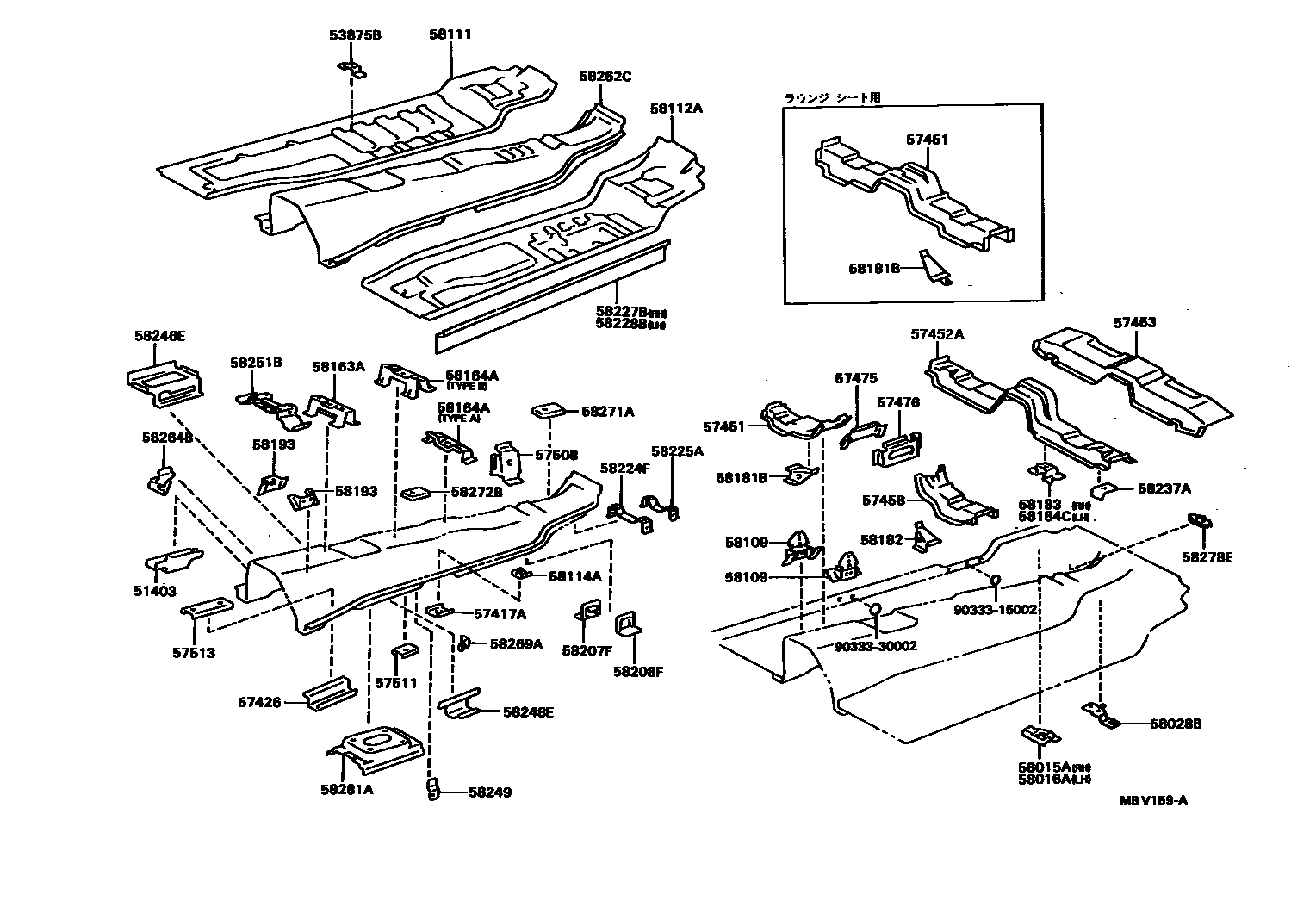

Toyota CENTURY — FLOOR PAN & LOWER BACK PANEL
51403BRACKET SUB-ASSY, ENGINE REAR MOUNTING
53875BBRACKET, AIR DUCT CLAMP
57417AREINFORCEMENT, FRONT FLOOR UNDER
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57451MEMBER, FRONT FLOOR CROSS
57452AMEMBER, FRONT FLOOR CROSS, NO.2
57453MEMBER, FRONT FLOOR CROSS, NO.3
57458MEMBER, FRONT FLOOR CROSS, NO.1
57475PLATE, FRONT FLOOR CROSSMEMBER
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57508REINFORCEMENT SUB-ASSY, SAFETY BAND ANCHORAGE
57511REINFORCEMENT, FRONT FLOOR, CENTER
57513REINFORCEMENT, FRONT FLOOR, LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58028BREINFORCE SUB-ASSY, SEAT BELT ANCHOR, LH
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58111PAN, FRONT FLOOR
58112APANEL, FRONT FLOOR, LH
58114AREINFORCEMENT, FRONT FLOOR PANEL
58163ARETAINER, CONSOLE BOX MOUNTING, NO.1
58164ARETAINER, CONSOLE BOX MOUNTING
58181BBRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH
58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH
58183BRACKET, FRONT SEAT MOUNTING, INNER
58184CBRACKET, FRONT SEAT MOUNTING, INNER LH
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58207FCLAMP SUB-ASSY, PARKING BRAKE CABLE, RH
58208FCLAMP SUB-ASSY, PARKING BRAKE CABLE, LH
58224FREINFORCEMENT, HEADER PANEL, NO.3
58225ABRACKET, CENTER MOUNTING
58227BPLATE, FRONT FLOOR PANEL SIDE, RH
58228BPLATE, FRONT FLOOR PANEL SIDE, LH
58237ABRACKET, FRONT SEAT
58246EREINFORCE, PARKING BRAKE EQUALIZER MOUNTING
58248EREINFORCEMENT, PARKING BRAKE EQUALIZER SUPPORT, LH
58249HANGER, PARKING BRAKE RETURN SPRING
58251BBRACE, FLOOR PANEL, FRONT
58262CCOVER, TRANSMISSION, REAR
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58269ABRACKET, PARKING BRAKE CABLE GUIDE, NO.3
58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58272BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4
58278EREINFORCEMENT, SIDE FLOOR, NO.2
58281ACOVER, TRANSMISSION AUXILIARY
9033315002
main90333-15002
9033330002
main90333-30002
47 parts on this diagram · 3 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota CENTURY
This section contains 73 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota CENTURY. Key components include: BRACKET SUB-ASSY, ENGINE REAR MOUNTING, BRACKET, AIR DUCT CLAMP, CAP, TEE NUT(FOR 6MM), REINFORCEMENT, FRONT FLOOR UNDER, REINFORCEMENT, FRONT FLOOR, NO.2 LH.
