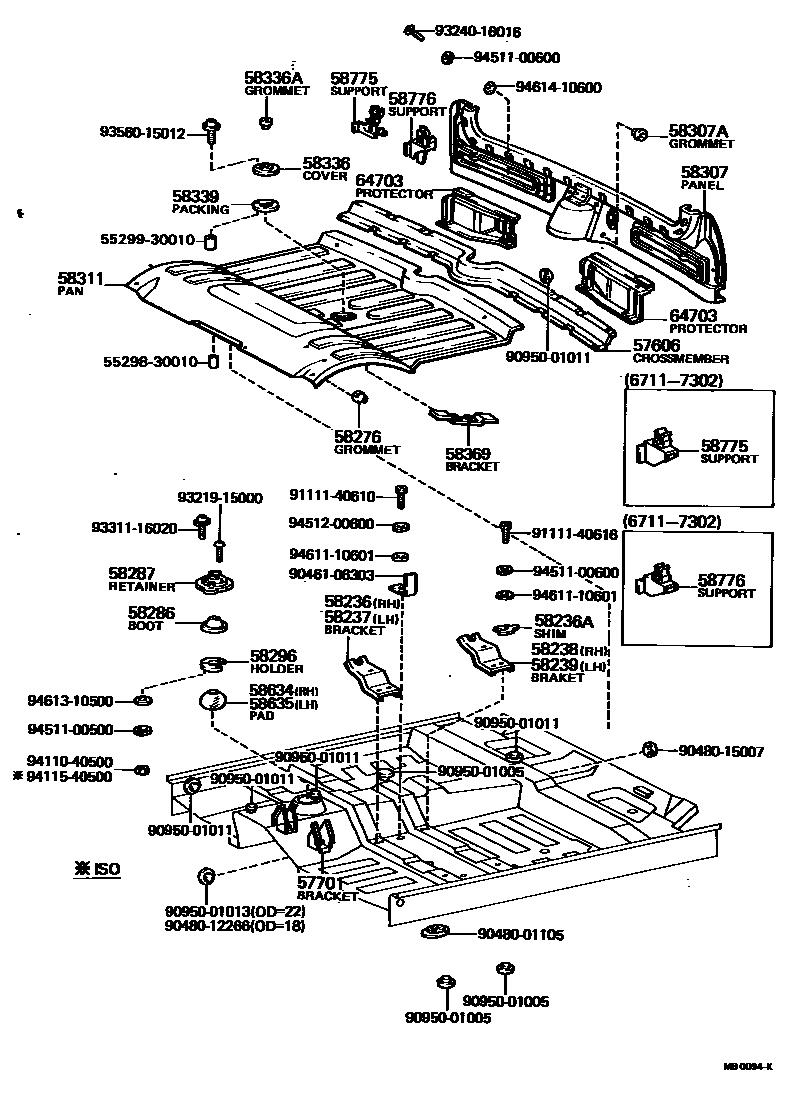

Toyota CENTURY — FLOOR PAN & LOWER BACK PANEL
57606CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER
57701BRACKET SUB-ASSY, ENGINE REAR SUPPORT
RH
LH
58236BRACKET, FRONT SEAT, INNER FRONT RH
58236ASHIM, FRONT SEAT BRACKET
T=2.3
T=1.6
T=1.2
58237BRACKET, FRONT SEAT, INNER FRONT LH
58238BRACKET, FRONT SEAT, INNER REAR RH
58239BRACKET, FRONT SEAT, INNER REAR LH
58276GROMMET, SAFETY BAND ANCHORAGE NUT
OUTER
INNER
INNER
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
58296HOLDER, SHIFT & SELECT LEVER BOOT
58307PANEL SUB-ASSY, BODY LOWER BACK
58307AGROMMET(FOR BODY LOWER BACK PANEL)
OD=15,ID=7
OD=20,ID=9
OD=21,ID=7
58311PAN, REAR FLOOR
58336COVER, INSPECTION HOLE
58336AGROMMET(FOR INSPECTION HOLE COVER)
58339PACKING, INSPECTION HOLE
58369BRACKET, INSULATOR HEAT
58634PAD, COVER SHIFTING LEVER HOLE SILENCER, RH
58635PAD, COVER SHIFTING LEVER HOLE SILENCER, LH
58775SUPPORT, JACK HANDLE ROD, NO.1
58776SUPPORT, JACK HANDLE ROD, NO.2
64703PROTECTOR SUB-ASSY, REAR COMBINATION LAMP
RH
LH
5529830010CAP, TEE NUT(FOR 8MM)
main55298-30010
5529930010CAP, TEE NUT(FOR 6MM)
main55299-30010
9046106303
main90461-06303
9048001105
main90480-01105
9048012266
main90480-12266
9048015007
main90480-15007
9095001005
main90950-01005
9095001011
main90950-01011
9095001013
main90950-01013
9111140610
main91111-40610
9111140616
main91111-40616
9321915000
main93219-15000
9324016016
main93240-16016
9331116020
main93311-16020
9356015012
main93560-15012
9411040500
main94110-40500
9411540500
main94115-40500
9451100500
main94511-00500
9451100600
main94511-00600
9451200600
main94512-00600
9461110601
main94611-10601
9461310500
main94613-10500
9461410600
main94614-10600
46 parts on this diagram · 2 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota CENTURY
This section contains 62 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota CENTURY. Key components include: CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER, BRACKET SUB-ASSY, ENGINE REAR SUPPORT, REINFORCEMENT SUB-ASSY, SAFETY BELT ANCER INSIDE, REAR, BRACKET, FRONT SEAT, INNER FRONT RH, SHIM, FRONT SEAT BRACKET.
