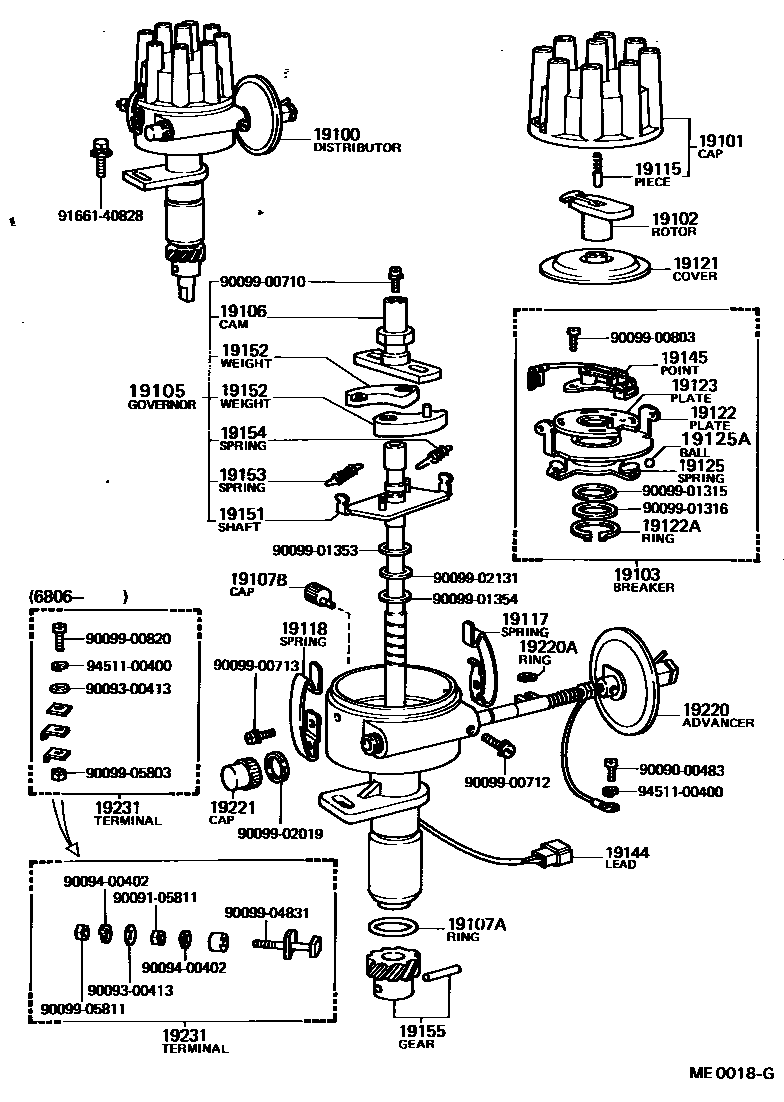

Toyota CENTURY — DISTRIBUTOR
19100DISTRIBUTOR ASSY
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19103BREAKER SUB-ASSY, DISTRIBUTOR
19105GOVERNOR SUB-ASSY
19106CAM SUB-ASSY, DISTRIBUTOR
19107ARING, O, DISTRIBUTOR HOUSING
19107BCAP, OIL(FOR DISTRIBUTOR HOUSING)
19115PIECE, DISTRIBUTOR CAP, CENTER
19117SPRING, DISTRIBUTOR CAP, A
19118SPRING, DISTRIBUTOR CAP, B
19121COVER, DUST PROOF
19122PLATE, STATIONARY, DISTRIBUTOR
19122ARING, SNAP(FOR DISTRIBUTOR STATIONARY PLATE)
19123PLATE, DISTRIBUTOR BREAKER
19125SPRING(FOR DISTRIBUTOR STATIONARY PLATE)
19125ABALL, DISTRIBUTOR STATIONARY PLATE
19144LEAD, DISTRIBUTOR BREAKER
19145POINT, DISTRIBUTOR
19151SHAFT, GOVERNOR
19152WEIGHT, GOVERNOR
19153SPRING, GOVERNOR, A
19154SPRING, GOVERNOR, B
19155GEAR, SPIRAL, DISTRIBUTOR
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
19221CAP, ADJUSTER, DISTRIBUTOR
19231TERMINAL, DISTRIBUTOR
9009000483
main90090-00483
9009105811
main90091-05811
9009300413
main90093-00413
9009400402
main90094-00402
9009900710
main90099-00710
9009900712
main90099-00712
9009900713
main90099-00713
9009900803
main90099-00803
9009900820
main90099-00820
9009901315
main90099-01315
9009901316
main90099-01316
9009901353
main90099-01353
9009901354
main90099-01354
9009902019
main90099-02019
9009902131
main90099-02131
9009904831
main90099-04831
9009905803
main90099-05803
9009905811
main90099-05811
9166140828
main91661-40828
9451100400
main94511-00400
48 parts on this diagram · 3 diagrams in section
DISTRIBUTOR for Toyota CENTURY
This section contains 64 genuine Toyota parts for the DISTRIBUTOR system of the Toyota CENTURY. Key components include: DISTRIBUTOR ASSY, TAPE, SEALING, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, BREAKER SUB-ASSY, DISTRIBUTOR.
