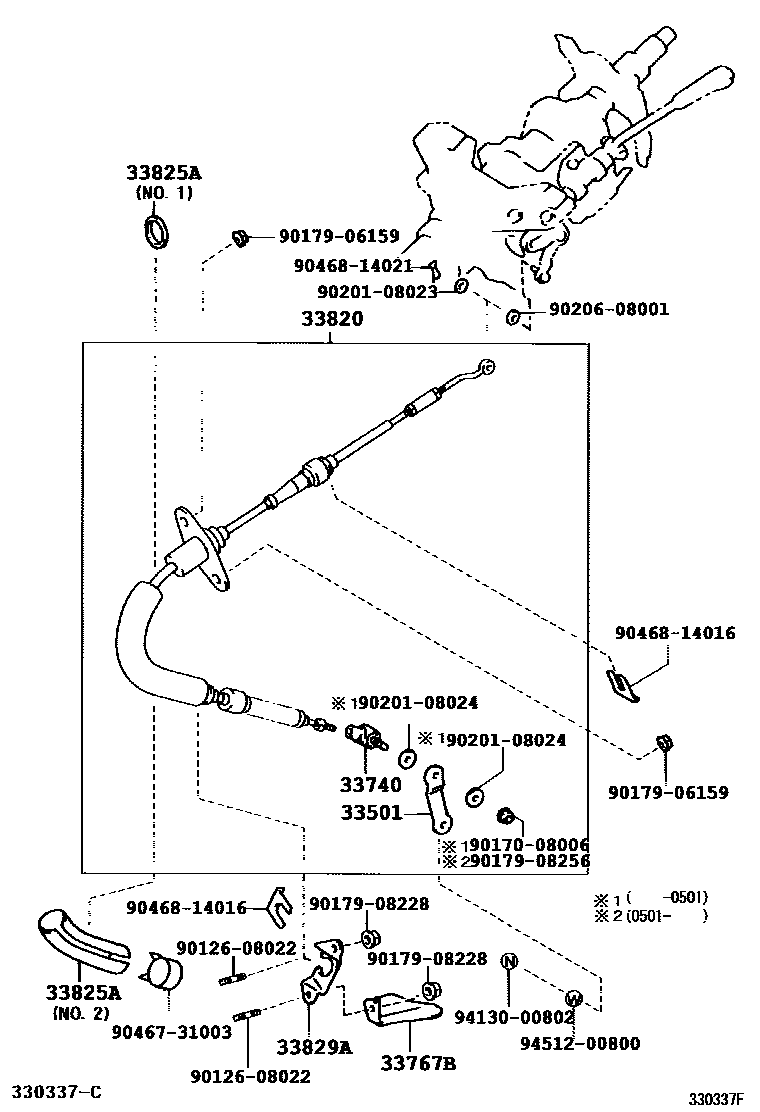

Toyota CENTURY — CONTROL SHAFT & CROSSSHAFT
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33740END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33767BINSULATOR, CONNECTING ROD HEAT (FOR COLUMN SHIFT)
33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33825AINSULATOR, TRANSMISSION CONTROL CABLE
33829ASUPPORT, TRANSMISSION CONTROL CABLE
9012608022
main90126-08022
9017008006
main90170-08006
9017906159
main90179-06159
9017908228
main90179-08228
9017908256
main90179-08256
9020108023
main90201-08023
9020108024
main90201-08024
9020608001
main90206-08001
9046731003
main90467-31003
9046814016
main90468-14016
9046814021
main90468-14021
9413000802
main94130-00802
9451200800
main94512-00800
19 parts on this diagram · 1 diagram in section
CONTROL SHAFT & CROSSSHAFT for Toyota CENTURY
This section contains 19 genuine Toyota parts for the CONTROL SHAFT & CROSSSHAFT system of the Toyota CENTURY. Key components include: SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT), END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT), INSULATOR, CONNECTING ROD HEAT (FOR COLUMN SHIFT), CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT), INSULATOR, TRANSMISSION CONTROL CABLE.
