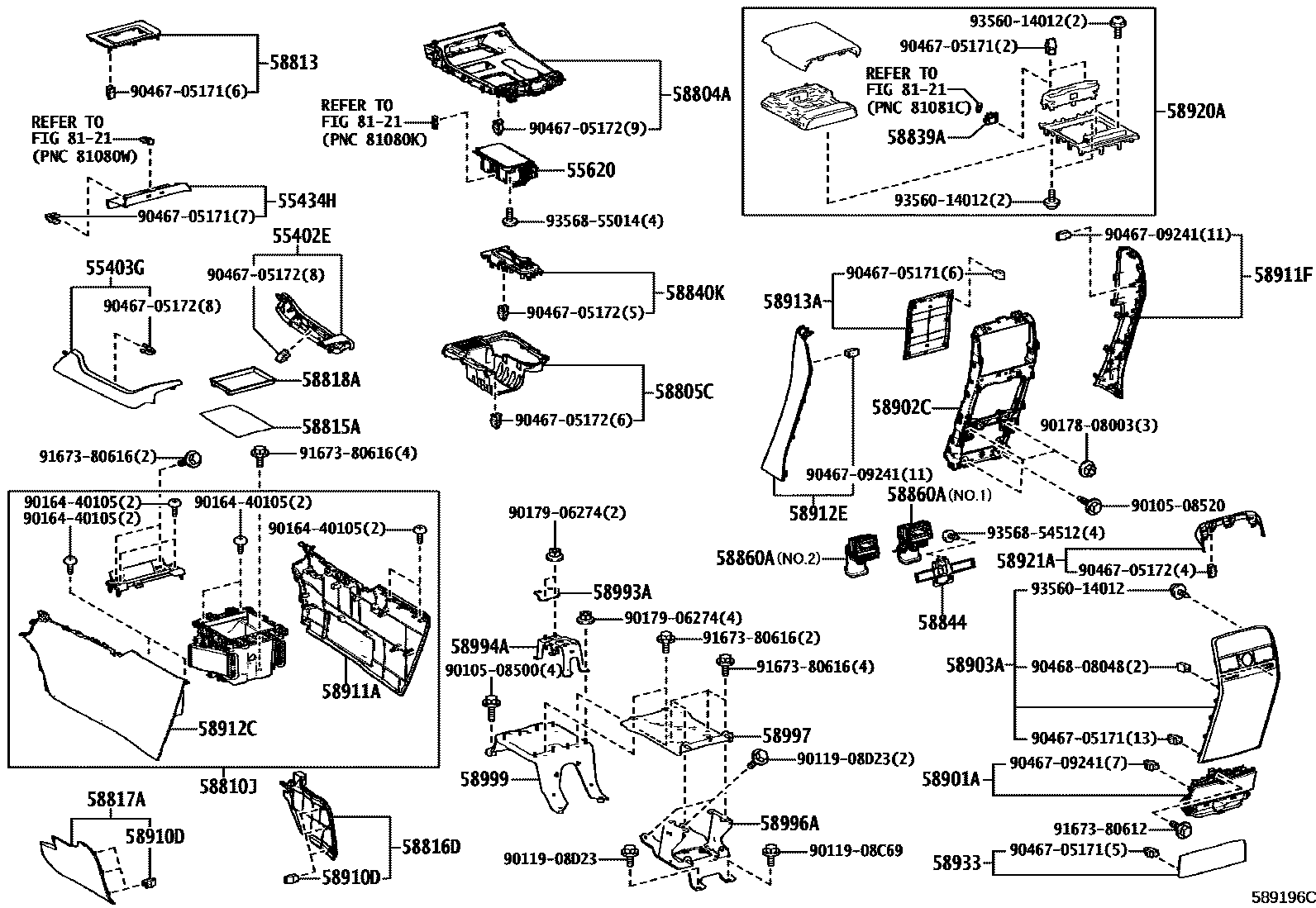

Toyota CENTURY — CONSOLE BOX & BRACKET
55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM4#
55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM4#
55434HPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55620HOLDER ASSY, INSTRUMENT PANEL CUP
BLACK,TRIM0#,2#,4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM0#,2#,4#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58810JBOX ASSY, CONSOLE
DK.GRAY,TRIM0#
BLACK,TRIM2#,4#
58813BOX, CONSOLE, UPPER
BLACK,TRIM0#,2#,4#
58815ACARPET, CONSOLE BOX
58816DINSERT, CONSOLE BOX, FRONT NO.1
DK.GRAY,TRIM0#
BLACK,TRIM2#,4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
DK.GRAY,TRIM0#
BLACK,TRIM2#,4#
58818ACOVER, CONSOLE BOX, FR
58839ACOVER, CONSOLE BOX HOLE
58840KCOVER ASSY, SHIFTING HOLE
58844BEZEL, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
BLACK,TRIM0#,2#,4#
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58903APANEL SUB-ASSY, CONSOLE REAR END
DARK BROWN,TRIM0#,2#,4#
58910DCLIP(FOR CONSOLE BOX)
58911APANEL, BOX SIDE, NO.1
DK.GRAY,TRIM0#
BLACK,TRIM2#,4#
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM4#
58911FPANEL, BOX SIDE, NO.3
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM4#
58912CPANEL, BOX SIDE, NO.2
DK.GRAY,TRIM0#
BLACK,TRIM2#,4#
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM4#
58912EPANEL, BOX SIDE, NO.4
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM4#
58913APANEL, BOX, NO.3
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM4#
58920AARMREST ASSY, REAR CONSOLE
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM4#
58921APANEL, REAR CONSOLE, UPPER
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM4#
58933GARNISH, CONSOLE REAR END PANEL
BLACK,TRIM0#,2#,4#
58993ABRACKET, CONSOLE BOX MOUNTING, LOWER
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
58999BRACKET, STEREO SUPPORT, NO.2
8121INTERIOR LAMP
9010508500
main90105-08500
9010508520
main90105-08520
9011908C69
main90119-08C69
9011908D23
main90119-08D23
9016440105
main90164-40105
9017808003
main90178-08003
9017906274
main90179-06274
9046705171
main90467-05171
9046705172
main90467-05172
9046709241
main90467-09241
9046808048
main90468-08048
9167380612
main91673-80612
9167380616
main91673-80616
9356014012
main93560-14012
9356854512
main93568-54512
9356855014
main93568-55014
50 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota CENTURY
This section contains 85 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CENTURY. Key components include: PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1, PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2, PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER, HOLDER ASSY, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER.
