Toyota CENTURY — CONSOLE BOX & BRACKET
58084COVER SUB-ASSY, CONSOLE, REAR
58810CONSOLE ASSY
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
58829POCKET, CONSOLE BOX
58890BOX ASSY, TRASH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
58903APANEL SUB-ASSY, CONSOLE REAR END
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
MOQUTTE,GRAY,GRAY,TRIM1#
MOQUTTE,BLUE,BLUE,TRIM8#
MOQUTTE,BEIGE,BEIGE,TRIM4#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,DARK BROWN,BROWN,TRIM4#
9324915010
main93249-15010
9338516016
main93385-16016
9354015012
main93540-15012
9356055016
main93560-55016
11 parts on this diagram · 1 diagram in section

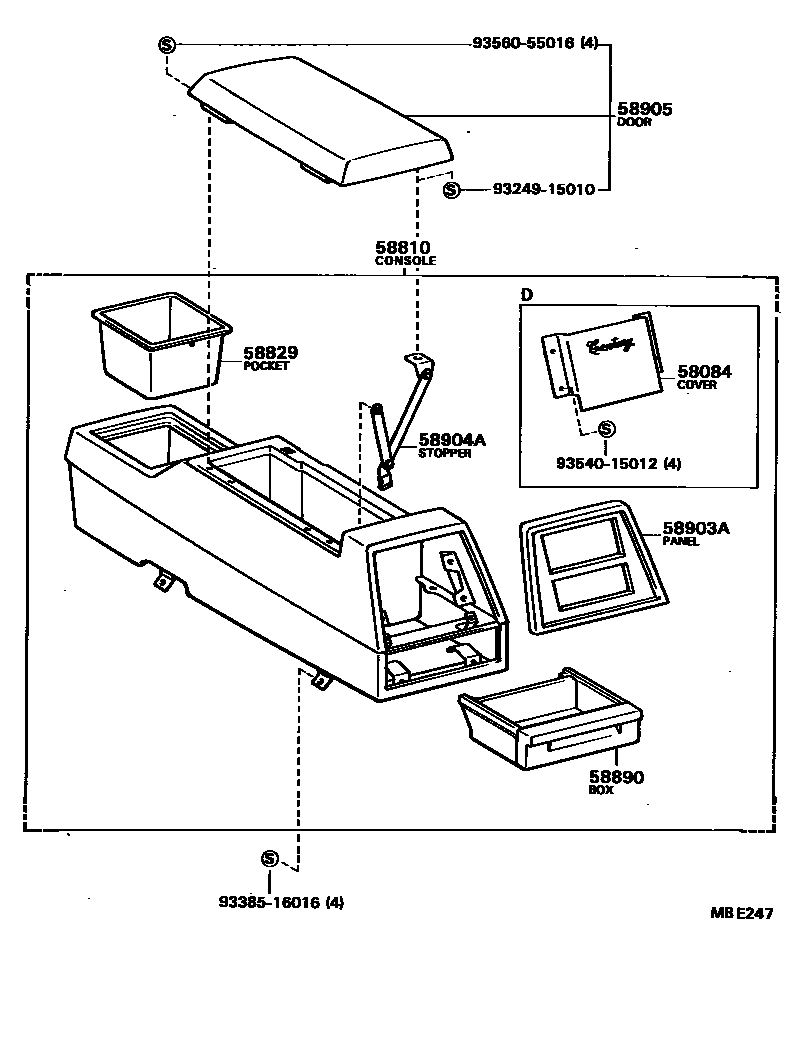

CONSOLE BOX & BRACKET for Toyota CENTURY
This section contains 11 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CENTURY. Key components include: COVER SUB-ASSY, CONSOLE, REAR, CONSOLE ASSY, POCKET, CONSOLE BOX, BOX ASSY, TRASH, PANEL SUB-ASSY, CONSOLE REAR END.
