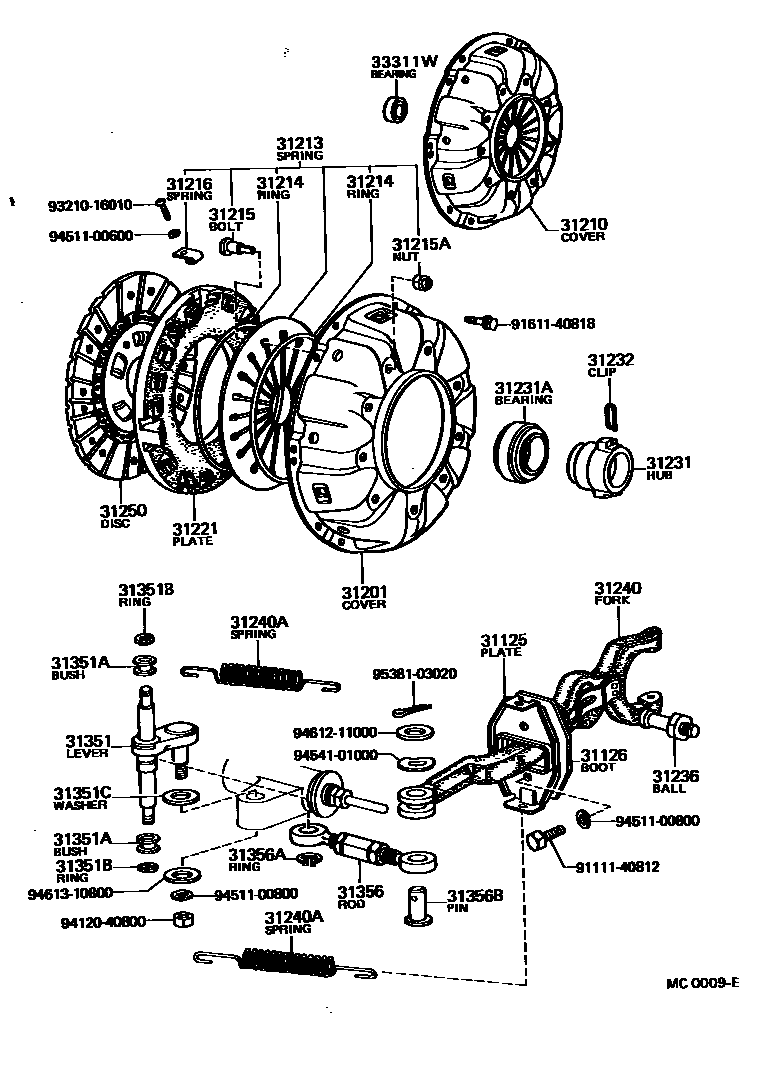

Toyota CENTURY — CLUTCH & RELEASE FORK
31125PLATE, RELEASE FORK BOOT
31126BOOT, CLUTCH RELEASE FORK
31201COVER SUB-ASSY, CLUTCH
31210COVER ASSY, CLUTCH
31213SPRING, CLUTCH DIAPHRAGM
31214RING, CLUTCH PIVOT
31215BOLT, CLUTCH DIAPHRAGM SPRING SET
31215ANUT(FOR CLUTCH DIAPHRAGM SPRING SETTING BOLT)
31216SPRING, CLUTCH RETRACTING
31221PLATE, CLUTCH PRESSURE
31231HUB, CLUTCH RELEASE BEARING
31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)
31232CLIP OR SPRING, RELEASE BEARING HUB
31240FORK ASSY, CLUTCH RELEASE
31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
31250DISC ASSY, CLUTCH
31351LEVER, OVER CENTER
31351ABUSH(FOR OVER CENTER LEVER)
31351BRING, E(FOR OVER CENTER LEVER)
31351CWASHER(FOR OVER CENTER LEVER)
31356ROD, OVER CENTER ADJUSTING
31356ARING, SNAP(FOR OVER CENTER ADJUSTING ROD)
31356BPIN, W/HOLE(FOR OVER CENTER ADJUSTING ROD)
33311WBEARING (FOR INPUT SHAFT)
9111140812
main91111-40812
9161140818
main91611-40818
9321016010
main93210-16010
9412040800
main94120-40800
9451100600
main94511-00600
9451100800
main94511-00800
9454101000
main94541-01000
9461211000
main94612-11000
9461310800
main94613-10800
9538103020
main95381-03020
35 parts on this diagram · 2 diagrams in section
CLUTCH & RELEASE FORK for Toyota CENTURY
This section contains 42 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CENTURY. Key components include: PLATE, RELEASE FORK BOOT, BOOT, CLUTCH RELEASE FORK, COVER SUB-ASSY, CLUTCH, COVER ASSY, CLUTCH, SPRING, CLUTCH DIAPHRAGM.
