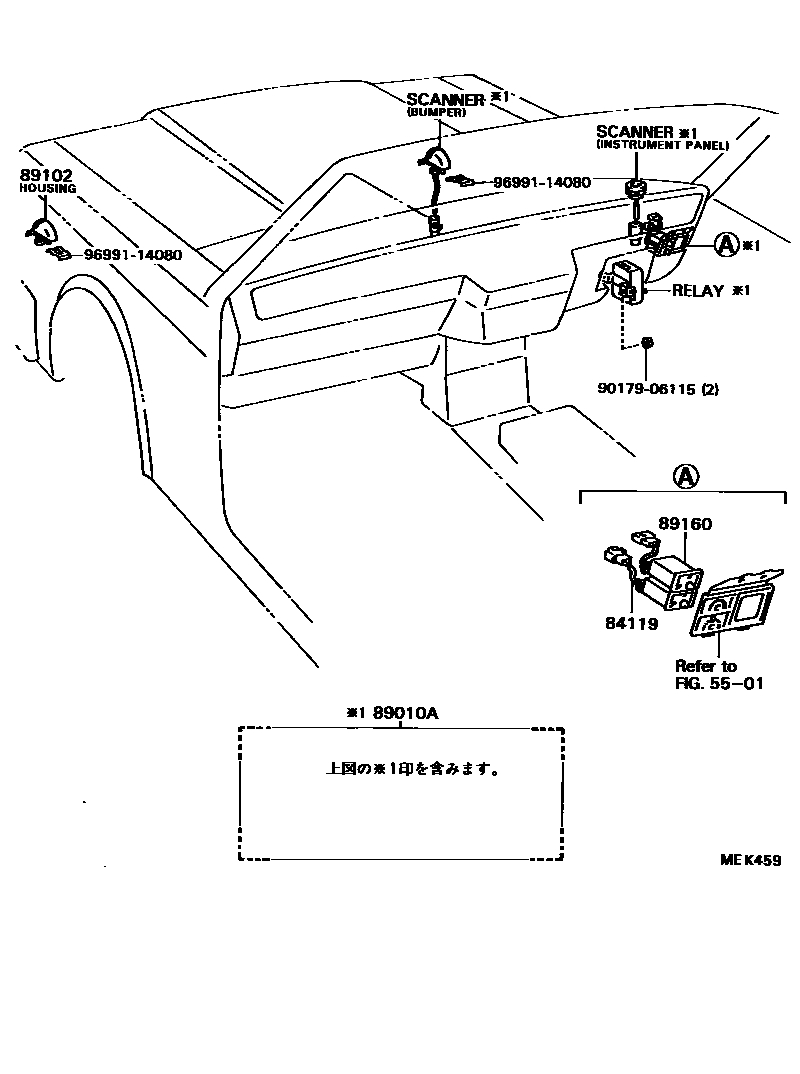

Toyota CENTURY — AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

5501

84119RHEOSTAT, LIGHT CONTROL

main84119-40010iVG4#198709-199701

89010ACONLIGHT SET

main89010-40040-01iVG4#..E,L198709-199212

BLACK,TRIM2#

main89010-40040-02iVG4#..E,L198709-199212

MAROON,TRIM3#

main89010-40040-03iVG4#198709-199701

SHADOW GRAY,TRIM1#

main89010-40040-04iVG4#198709-199701

DARK BLUE,TRIM8#

main89010-40040-E0iVG4#..E,L199212-199701

SABLE,TRIM4#

89102HOUSING SUB-ASSY, CONLIGHT SCANNER

main89102-40020iVG4#198709-199701

89160VOLUME ASSY, CONLIGHT DIMMER

main89160-40040iVG4#198709-199701

9017906115

main90179-06115

9699114080

main96991-14080

7 parts on this diagram · 1 diagram in section
