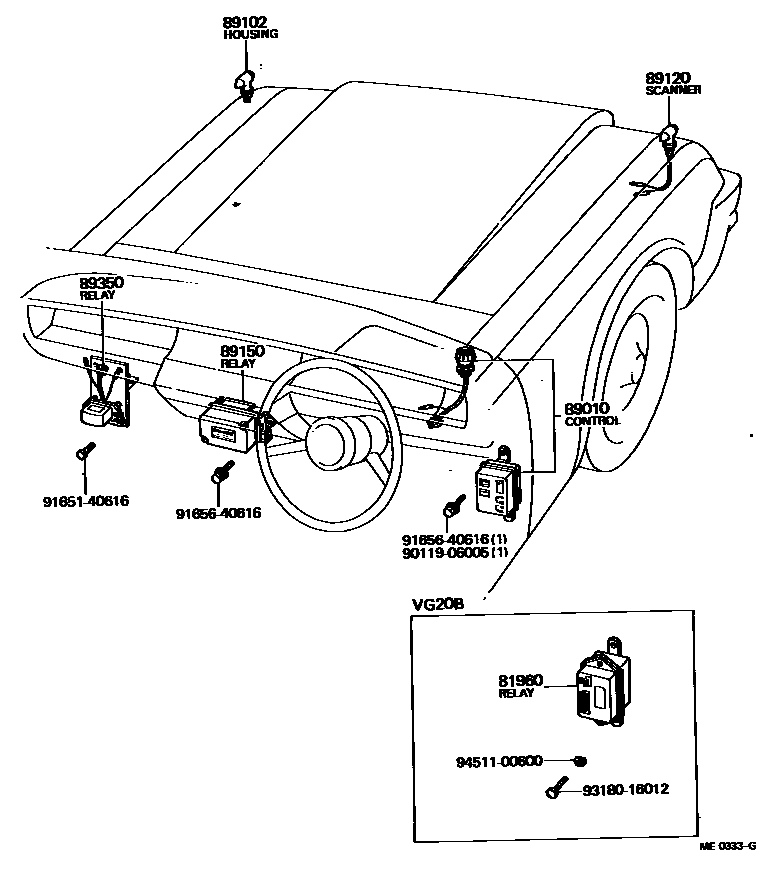

Toyota CENTURY — AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

81960RELAY ASSY, HEADLAMP DIMMER

main81960-40010iVG20..B196711-197302

89010CONTROL SET, CONLIGHT

main89010-40020iVG2#..A,C,D196711-197405

89102HOUSING SUB-ASSY, CONLIGHT SCANNER

main89102-40011×2iVG2#,3#196711-198209

89120SENSOR, AUTOMATIC LIGHT CONTROL

main89120-40020iVG2#..A,C,D196711-197405

89150RELAY ASSY, CONLIGHT B

main89150-40021iVG20..A,C,D196711-197302

main89150-40030iVG21..ATM197303-197405

main89150-40031iVG3#..D197701-198209

89350RELAY ASSY, UPPER BEAM INDICATOR LAMP

main89350-40021iVG20196711-197302

main89350-40030iVG21,3#197303-198209

9011906005

main90119-06005

9165140616

main91651-40616

9165640616

main91656-40616

9318016012

main93180-16012

9451100600

main94511-00600

11 parts on this diagram · 1 diagram in section
