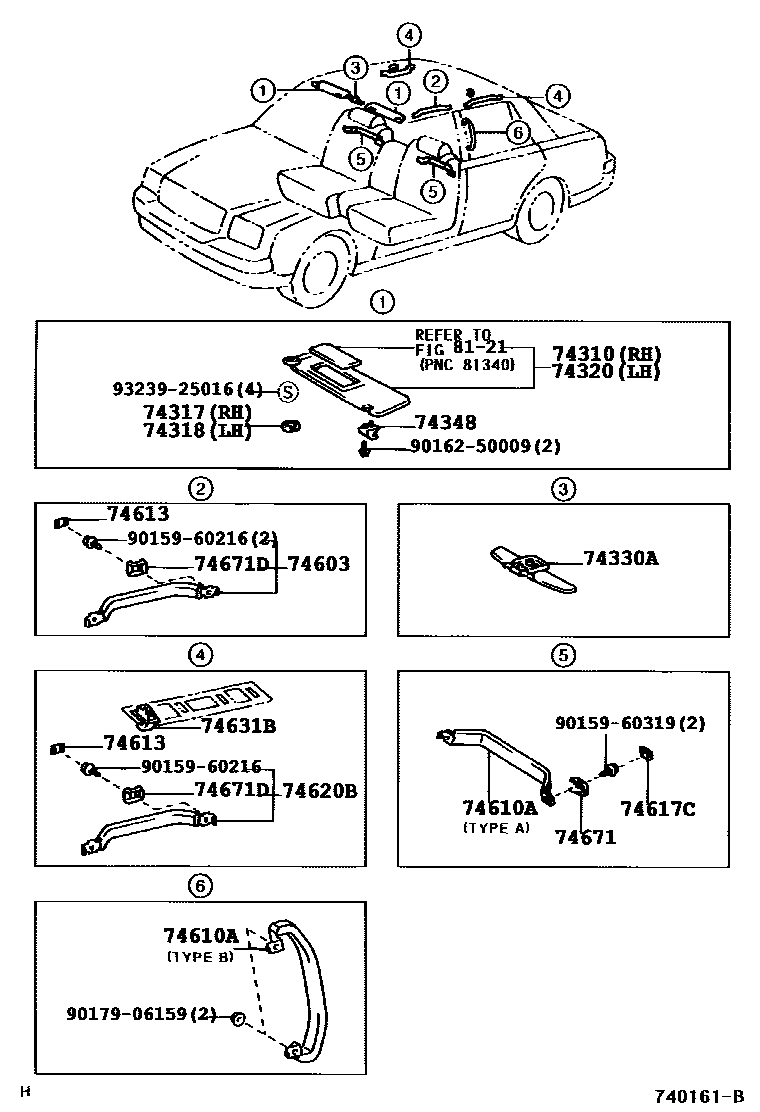

Toyota CENTURY — ARMREST & VISOR

74310VISOR ASSY, RH

main74310-40070-B0i199704-199708

LT. GRAY,TRIM1#

main74310-40070-B1i199704-199708

BLUE GRAY,TRIM8#

main74310-40070-E0i199704-199708

ORCHID,TRIM4#

main74310-40071-B0i199708-200004

LT. GRAY,TRIM1#

main74310-40071-B1i199708-200004

BLUE GRAY,TRIM8#

main74310-40071-E0i199708-200004

ORCHID,TRIM4#

main74310-40120-B0i200004-200105

LT. GRAY,TRIM1#

main74310-40120-B1i200004-200105

BLUE GRAY,TRIM8#

main74310-40120-E0i200004-200105

ORCHID,TRIM4#

main74310-40160-B0i200105-200501

LT. GRAY,TRIM1#

main74310-40160-B1i200501-200801

BLUE GRAY,TRIM8#

main74310-40160-E0i200105-200501

ORCHID,TRIM4#

main74310-40161-B0i200801-201211

LT. GRAY,TRIM1#

main74310-40161-B1i200801-201211

BLUE GRAY,TRIM8#

main74310-40161-E0i201305-201701

ORCHID,TRIM4#

74317COVER, VISOR BRACKET, RH

main74317-40010-B0i199704-200501

LT.GRAY,TRIM1#

main74317-40010-B1i200501-201701

BLUE GRAY,TRIM8#

main74317-40010-E0i200501-201701

ORCHID,TRIM4#

74318COVER, VISOR BRACKET, LH

main74318-40010-B0i200501-201701

LT.GRAY,TRIM1#

main74318-40010-B1i199704-200501

BLUE GRAY,TRIM8#

main74318-40010-E0i200501-201701

ORCHID,TRIM4#

74320VISOR ASSY, LH

main74320-40020-B0i199704-199708

LT. GRAY,TRIM1#

main74320-40020-B1i199704-199708

BLUE GRAY,TRIM8#

main74320-40020-E0i199704-199708

ORCHID,TRIM4#

main74320-40021-B0i199708-200004

LT. GRAY,TRIM1#

main74320-40021-B1i199708-200004

BLUE GRAY,TRIM8#

main74320-40021-E0i199708-200004

ORCHID,TRIM4#

main74320-40070-B0i200004-200501

LT. GRAY,TRIM1#

main74320-40070-B1i200501-200801

BLUE GRAY,TRIM8#

main74320-40070-E0i200004-200501

ORCHID,TRIM4#

main74320-40071-B0i200801-201305

LT. GRAY,TRIM1#

main74320-40071-B1i200801-201305

BLUE GRAY,TRIM8#

main74320-40071-E0i200801-201305

ORCHID,TRIM4#

main74320-40072-B0i201305-201701

LT. GRAY,TRIM1#

main74320-40072-B1i201305-201701

BLUE GRAY,TRIM8#

main74320-40072-E0i201305-201701

ORCHID,TRIM4#

74330AVISOR ASSY, CENTER

main74330-40010-B0i199704-200501

LT. GRAY,TRIM1#

main74330-40010-B1i200501-201701

BLUE GRAY,TRIM8#

main74330-40010-E0i199704-200501

ORCHID,TRIM4#

74348HOLDER, VISOR

main74348-50020-B0×2i200501-201701

BLUE GRAY,TRIM8#

main74348-50020-B1×2i199704-200501

LT.GRAY,TRIM1#

main74348-50020-E0×2i199704-200501

ORCHID,TRIM4#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-40040-B0i199704-200501

LT. GRAY,TRIM1#

main74610-40040-B1i199704-200501

BLUE GRAY,TRIM8#

main74610-40040-E0i199704-200501

ORCHID,TRIM4#

main74610-40070-B0×2i200501-200701

LT. GRAY,TRIM1#

main74610-40070-B1×2i200501-200701

BLUE GRAY,TRIM8#

main74610-40070-E0×2i200501-200701

ORCHID,TRIM4#

main74610-40071-B0×2i200701-201701

LT. GRAY,TRIM1#

main74610-40071-B1×2i200701-201701

BLUE GRAY,TRIM8#

main74610-40071-E0×2i200701-201701

ORCHID,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74620-40010-B0×2i200501-200701

main74620-40010-B1×2i200501-200701

main74620-40010-E0×2i199704-200501

main74620-40011-B0×2i200701-201701

main74620-40011-B1×2i200701-201701

main74620-40011-E0×2i200701-201701

main74620-51010-B0i200206-200501

main74620-51010-B1i200206-200501

main74620-51010-E0i200206-200501

74613PLUG, ASSIST GRIP

main74617-40010×6i199704-200501

main74617-40011×8i200701

74617CPLUG, ASSIST GRIP

main74617-40010×4i199704-200501

main74617-40011×4i200701

74620BGRIP ASSY, ASSIST, REAR

main74610-40050-B0×2i199704-200501

LT. GRAY,TRIM1#

main74610-40050-B1×2i199704-200501

BLUE GRAY,TRIM8#

main74610-40050-E0×2i199704-200501

ORCHID,TRIM4#

main74610-40080-B0×2i200501-200701

LT. GRAY,TRIM1#

main74610-40080-B1×2i200501-200701

BLUE GRAY,TRIM8#

main74610-40080-E0×2i200501-200701

ORCHID,TRIM4#

main74610-40081-B0×2i200701-201701

LT. GRAY,TRIM1#

main74610-40081-B1×2i200701-201701

BLUE GRAY,TRIM8#

main74610-40081-E0×2i200701-201701

ORCHID,TRIM4#

74631BHOOK, COAT

main74605-40010-B0×2i199704-200501

LT.GRAY,TRIM1#

main74605-40010-B1×2i200501-201701

BLUE GRAY,TRIM8#

main74605-40010-E0×2i200501-201701

ORCHID,TRIM4#

74671SUPPORT, ASSIST GRIP

main74671-24010×4i199704-200501

main74671-40010×4i200701

74671DSUPPORT, ASSIST GRIP

main74671-24010×6i199704-200501

main74671-40010×8i200701

8121INTERIOR LAMP

→ Go to FIG 81-21

9015960216

main90159-60216

9015960319

main90159-60319

9016250009

main90162-50009

9017906159

main90179-06159

9323925016

main93239-25016

20 parts on this diagram · 3 diagrams in section

ARMREST & VISOR for Toyota CENTURY

This section contains 46 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CENTURY. Key components include: PANEL ASSY, FRONT DOOR TRIM, UPPER RH, PANEL ASSY, FRONT DOOR TRIM, UPPER LH, PANEL ASSY, REAR DOOR TRIM, UPPER RH, PANEL ASSY, REAR DOOR TRIM, UPPER LH, ASH RECEPTACLE.
