Toyota CENTURY — ARMREST & VISOR
67651BGRILLE, SPEAKER DOOR, RH
BLACK,TRIM2#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
BLACK,TRIM2#
MAROON,TRIM3#
SHADW GRAY,TRIM1#
DARK BLUE,TRIM8#
67652BGRILLE, SPEAKER DOOR, LH
BLACK,TRIM2#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
BLACK,TRIM2#
MAROON,TRIM3#
SHADW GRAY,TRIM1#
DARK BLUE,TRIM8#
71788AWASHER, DOOR ARMREST PANEL
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
74025AHOSE, FRONT DOOR COURTESY LAMP
74025BBASE SUB-ASSY, FRONT ARMREST, LOWER RH
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
74026BBASE SUB-ASSY, FRONT ARMREST, LOWER LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
74027AHOSE, REAR DOOR COURTESY LAMP
74027CBASE SUB-ASSY, REAR ARMREST, LOWER RH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
74028CBASE SUB-ASSY, REAR ARMREST, LOWER LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
74201APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER RH
74202APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER LH
74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH
74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH
74210ARMREST ASSY, FRONT, RH
BLACK,TRIM2#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
74210HPLUG, HOLE (FOR DOOR ARMREST)
BLACK,TRIM2#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
74220ARMREST ASSY, FRONT, LH
BLACK,TRIM2#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
74230ARMREST ASSY, REAR, RH
BLACK,TRIM2#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
74240ARMREST ASSY, REAR, LH
BLACK,TRIM2#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
74310VISOR ASSY, RH
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
GRAY,TRIM1#; GRAY,TRIM1#,2#
BLUE,TRIM8#
BEIGE,TRIM3#
74320VISOR ASSY, LH
GRAY,TRIM1#; GRAY,TRIM1#,2#
BLUE,TRIM8#
BEIGE,TRIM3#
SABLE,TRIM4#
74348HOLDER, VISOR
BLUE,TRIM8#
GRAY,TRIM1#; GRAY,TRIM1#,2#
BEIGE,TRIM3#
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#,2#
BLUE,TRIM8#
SABLE,TRIM3#
SABLE,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
74610SGRIP ASSY, ASSIST
BEIGE,BEIGE,TRIM3#
GRAY,GRAY,TRIM1#; GRAY,GRAY,TRIM1#,2#
BLUE,BLUE,TRIM8#
SABLE,SABLE,TRIM4#
74617APLUG, ASSIST GRIP
GRAY,TRIM1#; GRAY,TRIM1#,2#
BLUE,TRIM8#
BEIGE,TRIM3#
SABLE,TRIM4#
74630CGRIP ASSY, DOOR ASSIST, RH
BLACK,TRIM2#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
BLACK,TRIM2#
MAROON,TRIM3#
BLACK,TRIM2#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
74631BHOOK, COAT
LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,2#
DEEP BLUE,TRIM8#
SABLE,TRIM3#
LT. GRAY,TRIM1#
SABLE,TRIM4#
74640CGRIP ASSY, DOOR ASSIST, LH
BLACK,TRIM2#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
BLACK,TRIM2#
MAROON,TRIM3#
DARK BLUE,TRIM8#
BLACK,TRIM2#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
74671SUPPORT, ASSIST GRIP
DOOR SIDE
9015760013
main90157-60013
9015960188
main90159-60188
9015960273
main90159-60273
9017904092
main90179-04092
9323914020
main93239-14020
9331116014
main93311-16014
9331514008
main93315-14008
9331514014
main93315-14014
9338516012
main93385-16012
9353025016
main93530-25016
9356614512
main93566-14512
9461410400
main94614-10400

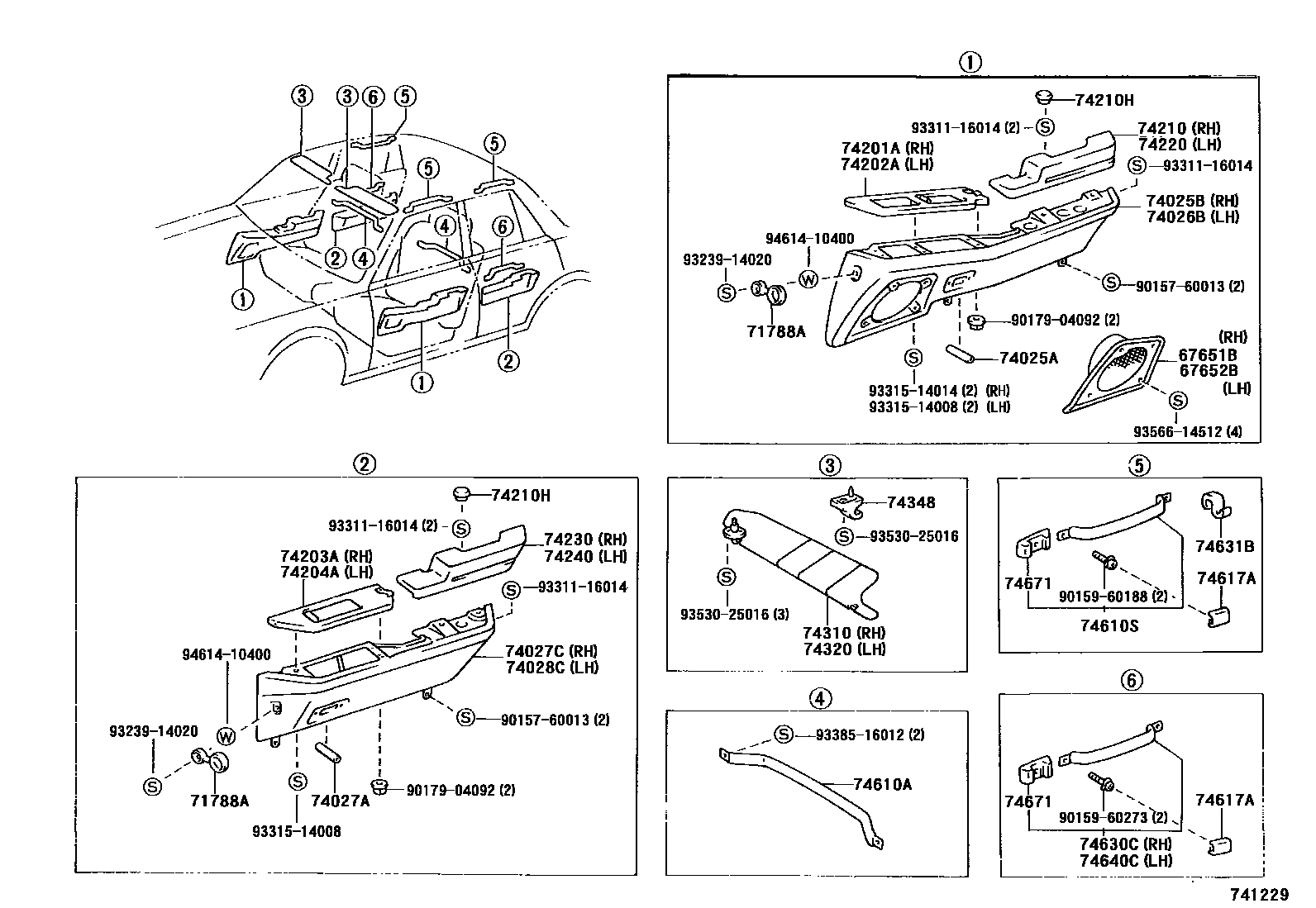

40 parts on this diagram · 2 diagrams in section
ARMREST & VISOR for Toyota CENTURY
This section contains 43 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CENTURY. Key components include: GRILLE, SPEAKER DOOR, RH, GRILLE, SPEAKER DOOR, LH, WASHER, DOOR ARMREST PANEL, HOSE, FRONT DOOR COURTESY LAMP, BASE SUB-ASSY, FRONT ARMREST, LOWER RH.
