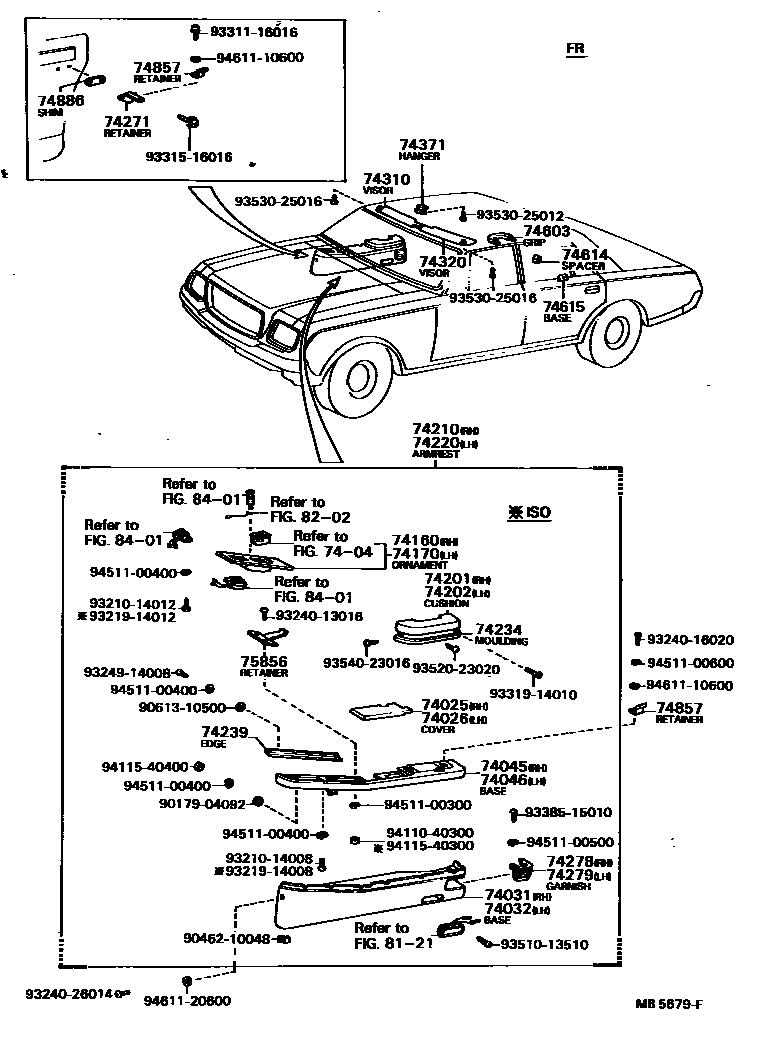

Toyota CENTURY — ARMREST & VISOR
74025COVER SUB-ASSY, FRONT DOOR ARMREST UPPER, RH
BLACK,BLACK
RED,RED/MAROON
BLACK,BLACK
G-GRAY,GRAY
CREAM,BLUE
D-BLUE,BEIGE
B-GRAY,BROWN
BLACK,BLACK,TRIM1#
G-GRAY,GRAY,TRIM6#
CREAM,BLUE,TRIM5#
D-BLUE,BEIGE,TRIM8#
B-GRAY,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
BLACK,BLACK
RED,RED/MAROON
74026COVER SUB-ASSY, FRONT DOOR ARMREST UPPER, LH
BLACK,BLACK
RED,RED/MAROON
BLACK,BLACK
G-GRAY,GRAY
CREAM,BLUE
D-BLUE,BEIGE
B-GRAY,BROWN
BLACK,BLACK,TRIM8#
G-GRAY,GRAY,TRIM6#
CREAM,BLUE,TRIM5#
D-BLUE,BEIGE,TRIM8#
B-GRAY,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
BLACK,BLACK
RED,RED/MAROON
74031BASE SUB-ASSY, FRONT DOOR ARMREST LOWER, RH
G-GRAY,BLACK,TRIM6#
CREAM,RED/MAROON,TRIM5#
D-BLUE,GRAY,TRIM8#
B-GRAY,BLUE,TRIM4#
GRAY,BLACK
BEIGE,RED/MAROON
GRAY,BLACK
BLACK,BLACK
RED,RED/MAROON
B-GRAY,GRAY,TRIM4#
D-BLUE,BLUE,TRIM8#
CREAM,IVORY,TRIM5#
B-GRAY,GRAY,TRIM4#
D-BLUE,BLUE,TRIM8#
CREAM,IVORY,TRIM5#
74032BASE SUB-ASSY, FRONT DOOR ARMREST LOWER, LH
G-GRAY,BLACK,TRIM6#
CREAM,RED/MAROON,TRIM5#
D-BLUE,GRAY,TRIM8#
B-GRAY,BLUE,TRIM4#
GRAY,BLACK
BEIGE,RED/MAROON
GRAY,BLACK
BLACK,BLACK
RED,RED/MAROON
B-GRAY,GRAY,TRIM4#
D-BLUE,BLUE,TRIM8#
CREAM,IVORY,TRIM5#
7404ASH RECEPTACLE
74045RAIL SET, SEPARATOR CURTAIN
BLACK,BLACK
G-GRAY,GRAY
CREAM,BLUE
D-BLUE,BEIGE
B-GRAY,BROWN
BLACK,BLACK
RED,RED/MAROON
BLACK,BLACK,TRIM1#
G-GRAY,GRAY,TRIM6#
CREAM,BLUE,TRIM5#
D-BLUE,BEIGE,TRIM8#
B-GRAY,BROWN,TRIM4#
BLACK,BLACK,TRIM8#
G-GRAY,GRAY,TRIM6#
CREAM,BLUE,TRIM5#
D-BLUE,BEIGE,TRIM8#
B-GRAY,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
74046BASE SUB-ASSY, FRONT DOOR ARMREST UPPER, LH
BLACK,BLACK
G-GRAY,GRAY
CREAM,BLUE
D-BLUE,BEIGE
B-GRAY,BROWN
BLACK,BLACK
RED,RED/MAROON
BLACK,BLACK,TRIM1#
G-GRAY,GRAY,TRIM6#
CREAM,BLUE,TRIM5#
D-BLUE,BEIGE,TRIM8#
B-GRAY,BROWN,TRIM4#
BLACK,BLACK,TRIM1#
G-GRAY,GRAY,TRIM6#
CREAM,BLUE,TRIM5#
D-BLUE,BEIGE,TRIM8#
B-GRAY,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
GRAY,BLUE,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
74160ORNAMENT ASSY, FRONT DOOR ARMREST, RH
74170ORNAMENT ASSY, FRONT DOOR ARMREST, LH
74201CUSHION SUB-ASSY, FRONT DOOR ARMREST, RH
BLACK,BLACK,TRIM8#
G-GRAY,GRAY,TRIM6#
CREAM,BLUE,TRIM5#
D-BLUE,BEIGE,TRIM8#
B-GRAY,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
BLACK,BLACK
RED,RED/MAROON
74202CUSHION SUB-ASSY, FRONT DOOR ARMREST, LH
BLACK,BLACK,TRIM1#
G-GRAY,GRAY,TRIM6#
CREAM,BLUE,TRIM5#
D-BLUE,BEIGE,TRIM8#
B-GRAY,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
BLACK,BLACK
RED,RED/MAROON
74210ARMREST ASSY, FRONT, RH
G-GRAY,BLACK
CREAM,RED/MAROON
D-BLUE,GRAY
B-GRAY,BLUE
BLACK & D-BLUE,BEIGE
BLACK & GRAY,BLACK
BLACK & BEIGE,RED/MAROON
BLACK,BLACK
RED,RED/MAROON
BLACK & GRAY,BLACK
G-GRAY,GRAY,TRIM6#
D-BLUE,BLUE,TRIM8#
B-GRAY,BROWN,TRIM4#
CREAM,IVORY,TRIM5#
BLACK & GRAY,BLACK
G-GRAY,GRAY,TRIM6#
D-BLUE,BLUE,TRIM8#
B-GRAY,BROWN,TRIM4#
CREAM,IVORY,TRIM5#
BLACK & GRAY,BLACK
B-GRAY,GRAY,TRIM4#
BLACK & D-BLUE,BLUE
CREAM,IVORY,TRIM5#
B-GRAY,GRAY,TRIM4#
BLACK & D-BLUE,BLUE
CREAM,IVORY,TRIM5#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,BROWN,BROWN,TRIM4#
GRAY
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
74220ARMREST ASSY, FRONT, LH
G-GRAY,BLACK
CREAM,RED/MAROON
D-BLUE,GRAY
B-GRAY,BLUE
BLACK & D-BLUE,BEIGE
BLACK & GRAY,BLACK
BLACK & BEIGE,RED/MAROON
BLACK,BLACK
RED,RED/MAROON
BLACK & GRAY,BLACK
G-GRAY,GRAY,TRIM6#
D-BLUE,BLUE,TRIM8#
B-GRAY,BROWN,TRIM4#
CREAM,IVORY,TRIM5#
BLACK & GRAY,BLACK
G-GRAY,GRAY,TRIM6#
D-BLUE,BLUE,TRIM8#
B-GRAY,BROWN,TRIM4#
CREAM,IVORY,TRIM5#
BLACK & GRAY,BLACK
B-GRAY,GRAY,TRIM4#
BLACK & D-BLUE,BLUE
CREAM,IVORY,TRIM5#
GRAY
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
74234MOULDING, DOOR ARMREST
FR & RH DOOR
FR & LH DOOR
RR & RH DOOR
RR & LH DOOR
74239EDGE, DOOR ARMREST COVER
74271RETAINER, DOOR ARMREST
74310VISOR ASSY, RH
GRAY,BLACK
CREAM,RED/MAROON
L-BLUE,GRAY
GRAY,BLACK,TRIM1#,4#
CREAM,RED/MAROON,TRIM5#
L-BLUE,GRAY,TRIM8#
GRAY,GRAY,TRIM4#,8#
CREAM,IVORY,TRIM5#
GRAY,GRAY,TRIM4#,8#
CREAM,IVORY,TRIM5#
GRAY,GRAY,TRIM1#,4#,8#
BEIGE,BEIGE,TRIM4#
CREAM,IVORY,TRIM5#
74320VISOR ASSY, LH
GRAY,BLACK
CREAM,RED/MAROON
L-BLUE,GRAY
GRAY,BLACK,TRIM1#,4#
CREAM,RED/MAROON,TRIM5#
L-BLUE,GRAY,TRIM8#
GRAY,GRAY,TRIM4#,8#
CREAM,IVORY,TRIM5#
GRAY,GRAY,TRIM1#,4#,8#
BEIGE,BEIGE,TRIM4#
CREAM,IVORY,TRIM5#
74371HANGER, VISOR
GRAY,GRAY,TRIM1#,8#
BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#,8#
BEIGE,BEIGE,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
BLACK,BLACK
L-BLUE,RED/MAROON
CREAM,GRAY
GRAY,BLUE
BLACK,BLACK
L-BLUE,RED/MAROON,TRIM8#
CREAM,GRAY,TRIM5#
GRAY,BLUE,TRIM1#,4#
GRAY,GRAY,TRIM4#,8#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
CREAM,IVORY,TRIM5#
LEATHER,BEIGE,BEIGE,TRIM4#
LEATHER,BROWN,BROWN,TRIM4#
74857RETAINER, DOOR ARMREST CUSHION
74886SHIM, DOOR ARMREST RETAINER
T=2.3
T=1.0
75856RETAINER, FRONT DOOR ARMREST UPPER COVER
8121INTERIOR LAMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
9017904092
main90179-04092
9046210048
main90462-10048
9061310500
main90613-10500
9321014008
main93210-14008
9321014012
main93210-14012
9321914008
main93219-14008
9321914012
main93219-14012
9324013016
main93240-13016
9324016020
main93240-16020
9324026014
main93240-26014
9324914008
main93249-14008
9331116016
main93311-16016
9331516016
main93315-16016
9331914010
main93319-14010
9338515010
main93385-15010
9351013510
main93510-13510
9352023020
main93520-23020
9353025012
main93530-25012
9353025016
main93530-25016
9354023016
main93540-23016
9411040300
main94110-40300
9411540300
main94115-40300
9411540400
main94115-40400
9451100300
main94511-00300
9451100400
main94511-00400
9451100500
main94511-00500
9451100600
main94511-00600
9461110600
main94611-10600
9461120600
main94611-20600
59 parts on this diagram · 2 diagrams in section
ARMREST & VISOR for Toyota CENTURY
This section contains 83 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CENTURY. Key components include: COVER SUB-ASSY, FRONT DOOR ARMREST UPPER, RH, COVER SUB-ASSY, FRONT DOOR ARMREST UPPER, LH, COVER SUB-ASSY, REAR DOOR ARMREST UPPER, RH, COVER SUB-ASSY, REAR DOOR ARMREST UPPER, LH, BASE SUB-ASSY, FRONT DOOR ARMREST LOWER, RH.
