Toyota CENTURY — AIR BAG

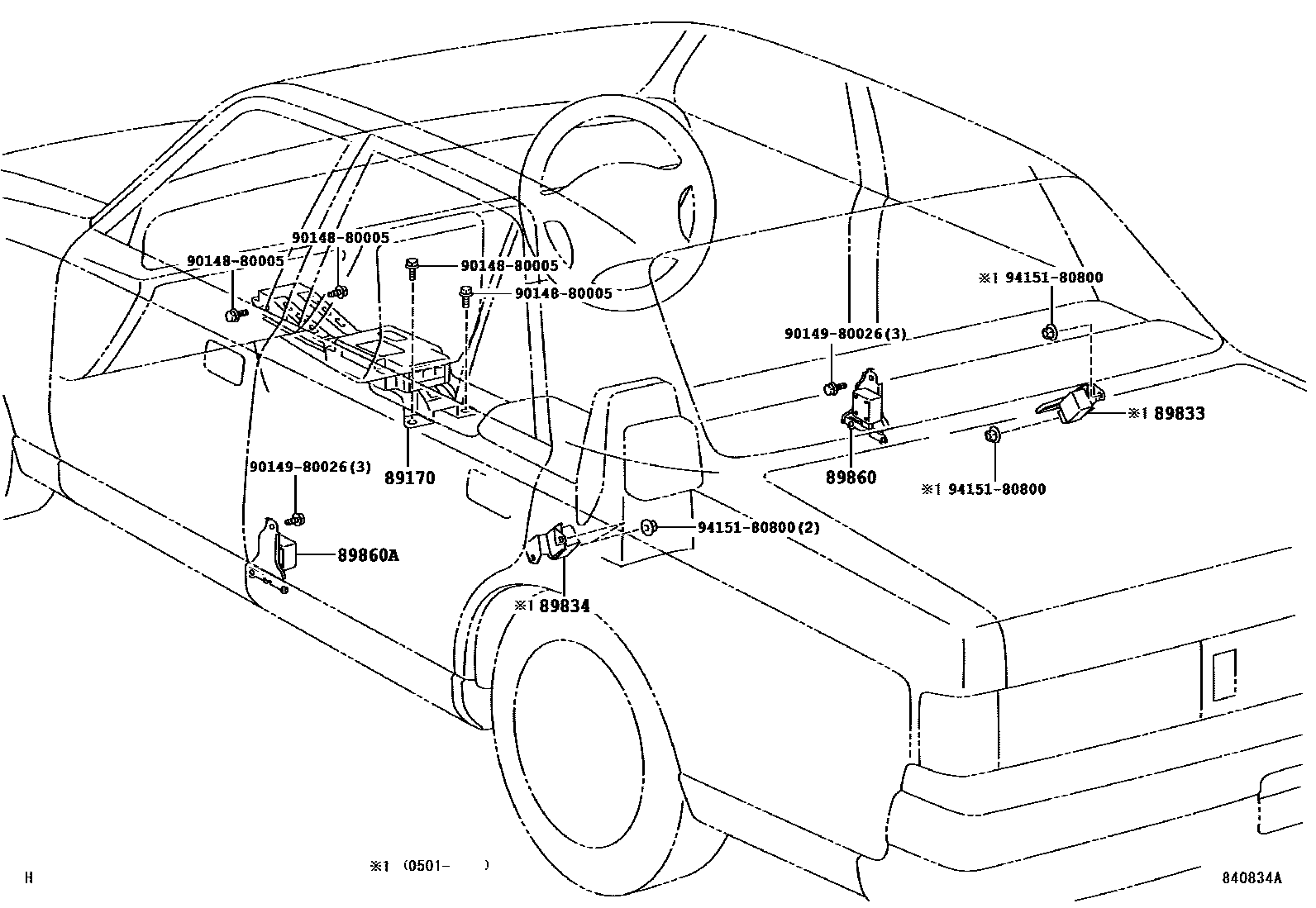

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-40020i199704-200004

main89170-40060i200004-200501

main89170-40070i200501

89833SENSOR, AIRBAG, REAR RH

main89833-40010i200501

89834SENSOR, AIRBAG, REAR LH

main89834-40010i200501

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-40010i199704-200004

main89860-40020i200004-200501

main89860-40030i200501

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-40010i199704-200004

main89830-40020i200004-200501

main89830-40030i200501

9014880005

main90148-80005

9014980026

main90149-80026

9415180800

main94151-80800

8 parts on this diagram · 1 diagram in section

AIR BAG for Toyota CENTURY

This section contains 8 genuine Toyota parts for the AIR BAG system of the Toyota CENTURY. Key components include: SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, REAR RH, SENSOR, AIRBAG, REAR LH, SENSOR ASSY, SIDE AIRBAG, RH, SENSOR ASSY, SIDE AIRBAG, LH.
