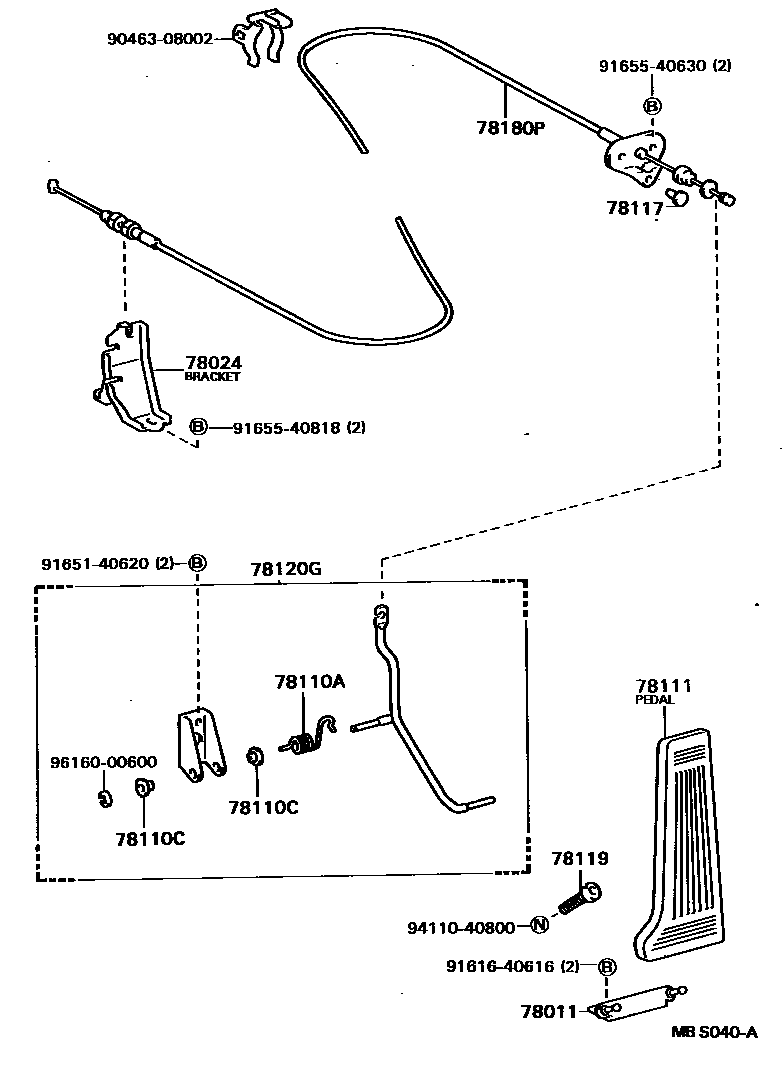

Toyota CENTURY — ACCELERATOR LINK
78011BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78110CBUSH (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78117CUSHION (FOR ACCELERATOR ROD)
78119STOPPER, ACCELERATOR PEDAL ROD
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
9046308002
main90463-08002
9161640616
main91616-40616
9165140620
main91651-40620
9165540630
main91655-40630
9165540818
main91655-40818
9411040800
main94110-40800
9616000600
main96160-00600
16 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota CENTURY
This section contains 16 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CENTURY. Key components include: BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT, BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), BUSH (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR.
