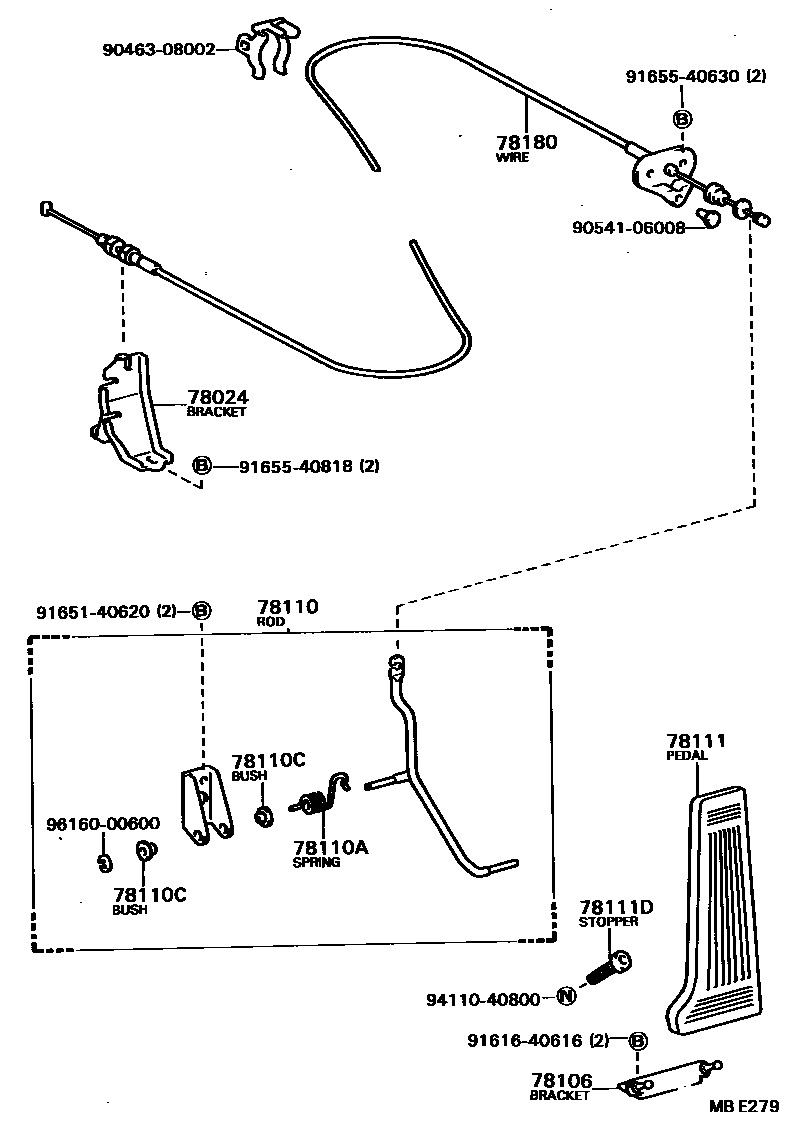

Toyota CENTURY — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78106BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78110ROD ASSY, ACCELERATOR PEDAL
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78110CBUSH (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111DSTOPPER (FOR ACCELERATOR PEDAL)
78180WIRE ASSY, ACCELERATOR
9046308002
main90463-08002
9054106008
main90541-06008
9161640616
main91616-40616
9165140620
main91651-40620
9165540630
main91655-40630
9165540818
main91655-40818
9411040800
main94110-40800
9616000600
main96160-00600
16 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota CENTURY
This section contains 16 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CENTURY. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT, ROD ASSY, ACCELERATOR PEDAL, SPRING (FOR ACCELERATOR PEDAL ROD), BUSH (FOR ACCELERATOR PEDAL ROD).
