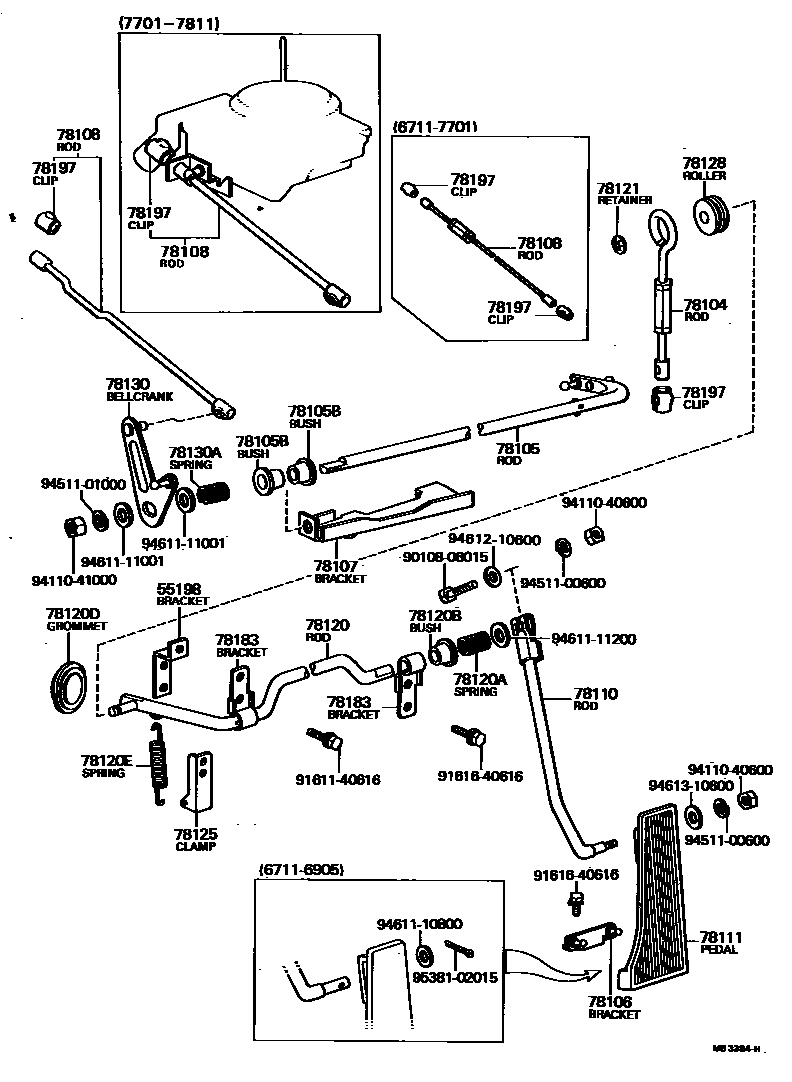

Toyota CENTURY — ACCELERATOR LINK
55198BRACKET, SPEED WARNING CHIME
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105BBUSH (FOR ACCELERATOR TORQUE ROD)
LH,OD=16,ID=10
RH,OD=20,ID=10
78106BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78107BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78108ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78110ROD ASSY, ACCELERATOR PEDAL
78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
78120BBUSH (FOR ACCELERATOR LINK ROD)
78120DGROMMET (FOR ACCELERATOR LINK ROD)
78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)
78121RETAINER, SPRING (FOR ACCELERATOR LINK ROD)
78128ROLLER, ACCELERATOR PEDAL ROD ARM
78130BELLCRANK ASSY, ACCELERATOR
78130ASPRING (FOR ACCELERATOR ROD RETURN)
78183BRACKET, ACCELERATOR LINK ROD
78197CLIP, ACCELERATOR JOINT BALL
9010806015
main90108-06015
9161140616
main91611-40616
9161640616
main91616-40616
9411040600
main94110-40600
9411041000
main94110-41000
9451100600
main94511-00600
9451101000
main94511-01000
9461110800
main94611-10800
9461111001
main94611-11001
9461111200
main94611-11200
9461210600
main94612-10600
9461310600
main94613-10600
9538102015
main95381-02015
34 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota CENTURY
This section contains 34 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CENTURY. Key components include: BRACKET, SPEED WARNING CHIME, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3, BUSH (FOR ACCELERATOR TORQUE ROD), BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT.
