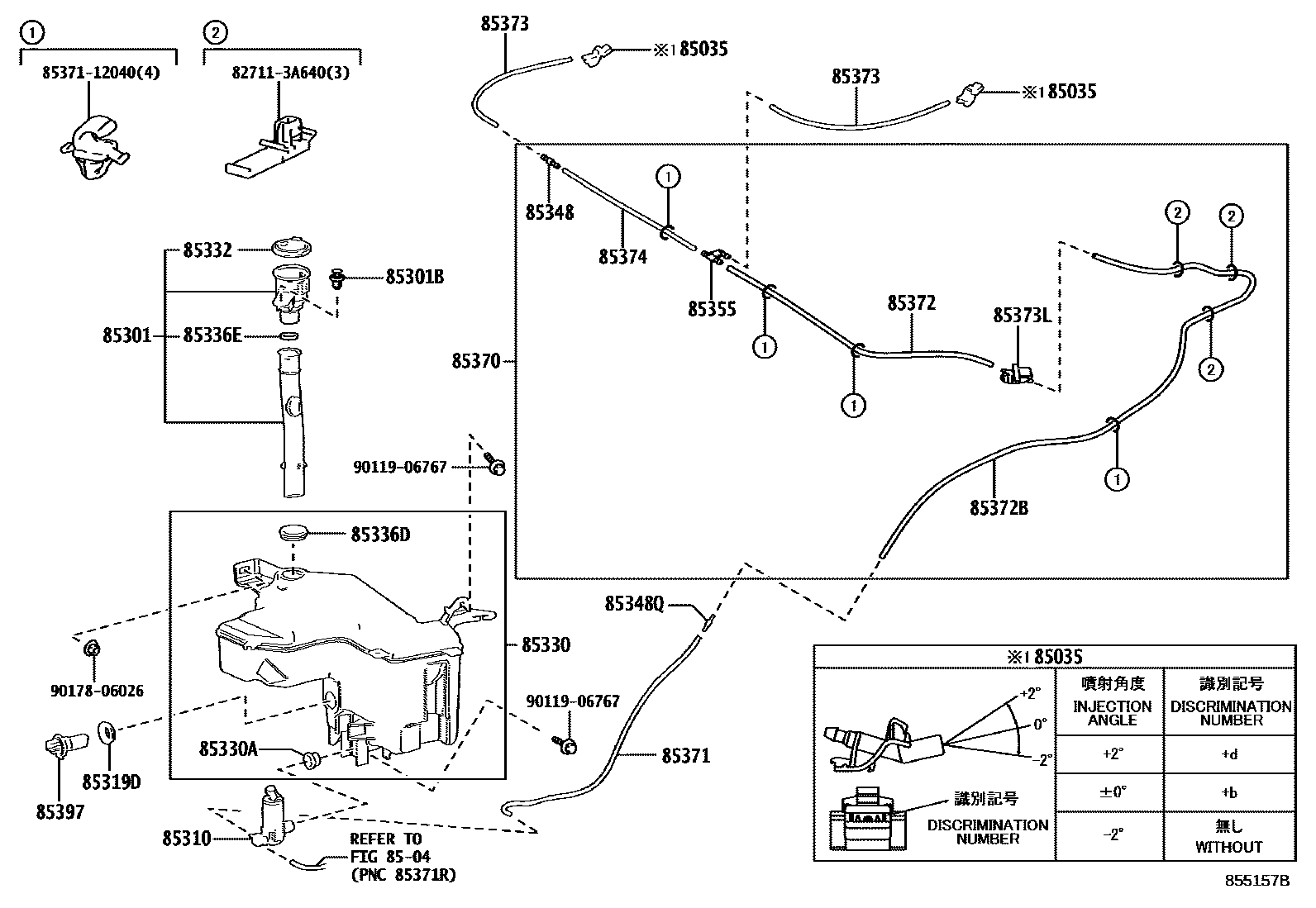

Toyota CENTURY — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202310

ANGLE 0

main85381-30230×2i202310

ANGLE -2

main85381-30240×2i202310

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-40040i202310

85301BCLIP, WASHER

main90467-07215i202310

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0A020i202310

85319DPACKING, FRONT WASHER

main85319-AA020i202310

85330JAR ASSY, WINDSHIELD WASHER

main85315-0E280i202310

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202310

85332CAP, WINDSHIELD WASHER JAR

main85386-60050i202310

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i202310

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i202310

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i202310

85348QJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-0E010i202310

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202310

85370HOSE ASSY, WINDSHIELD WASHER

main85370-40120i202310

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33092i202310

L=480

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i202310

L=1450(*H,L=590)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i202310

L=1450(*H,L=1190)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i202310

L=1450(*H,L=360)

85373LGROMMET, WASHER

main85373-12050i202310

85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)

main90099-33299i202310

L=1000(*H,L=370)

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i202310

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9011906767

main90119-06767

9017806026

main90178-06026

26 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CENTURY

This section contains 26 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CENTURY. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
