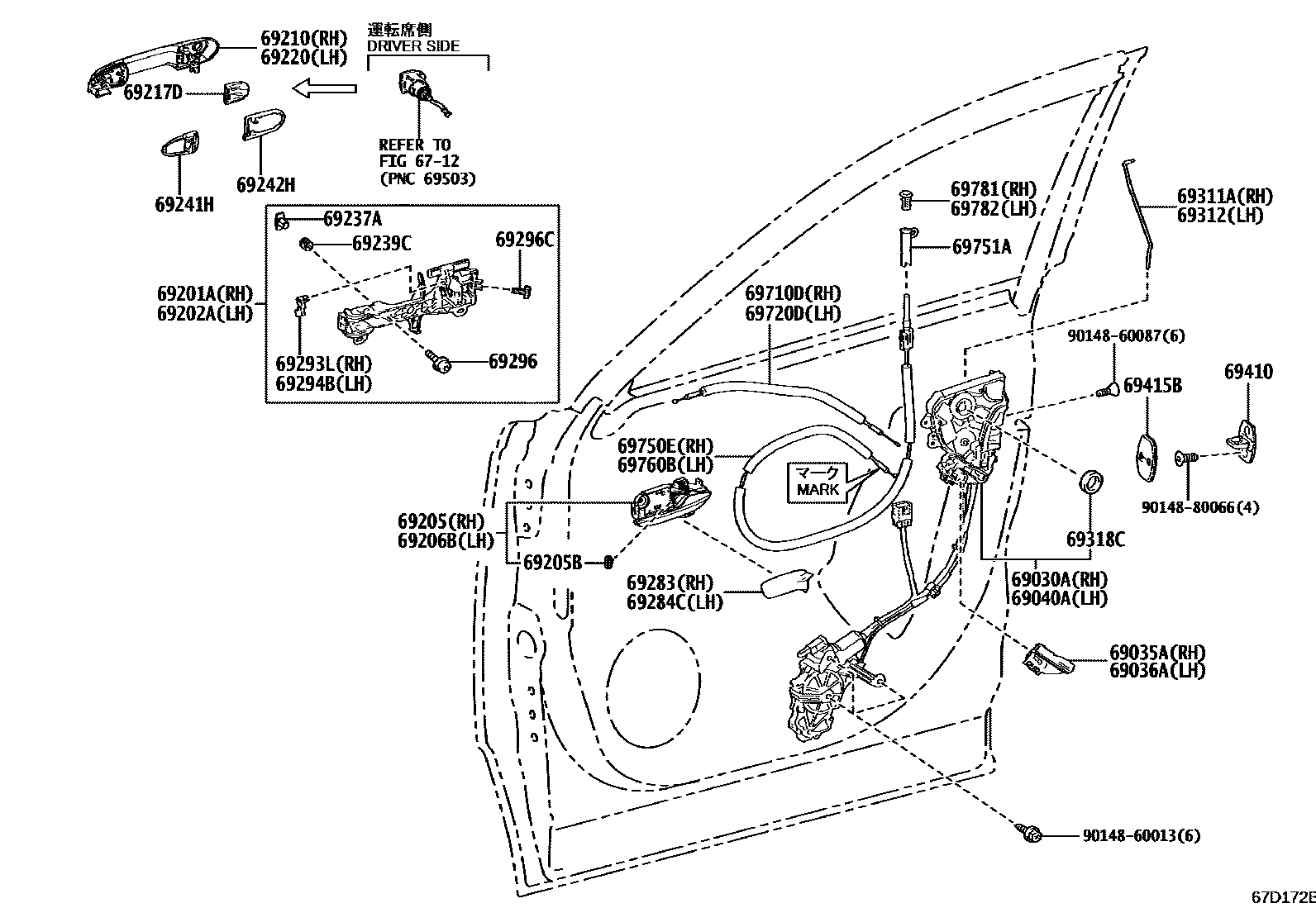

Toyota CENTURY — FRONT DOOR LOCK & HANDLE
6712LOCK CYLINDER SET
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
BLACK,212 ,M31 ,M41
PRECIOUS WHITE PEARL,090 ,M34
PROMINENT GRAY,1M3 ,M32 ,M41
GLORY RED,3V0 ,M33
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK,212 ,M31 ,M41
PRECIOUS WHITE PEARL,090 ,M34
PROMINENT GRAY,1M3 ,M32 ,M41
GLORY RED,3V0 ,M33
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM40
SUNFLARE BROWN,TRIM41
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM40
SUNFLARE BROWN,TRIM41
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69296CSCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
MARK = ACF
MARK = HFF
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
MARK = ACF
MARK = HFF
69781BEZEL, DOOR LOCKING, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM40
SUNFLARE BROWN,TRIM41
69782BEZEL, DOOR LOCKING, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM40
SUNFLARE BROWN,TRIM41
9014860013
main90148-60013
9014860087
main90148-60087
9014880066
main90148-80066
38 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota CENTURY
This section contains 38 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CENTURY. Key components include: LOCK CYLINDER SET, LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, LOCK ASSY, FRONT DOOR W/MOTOR, LH.
