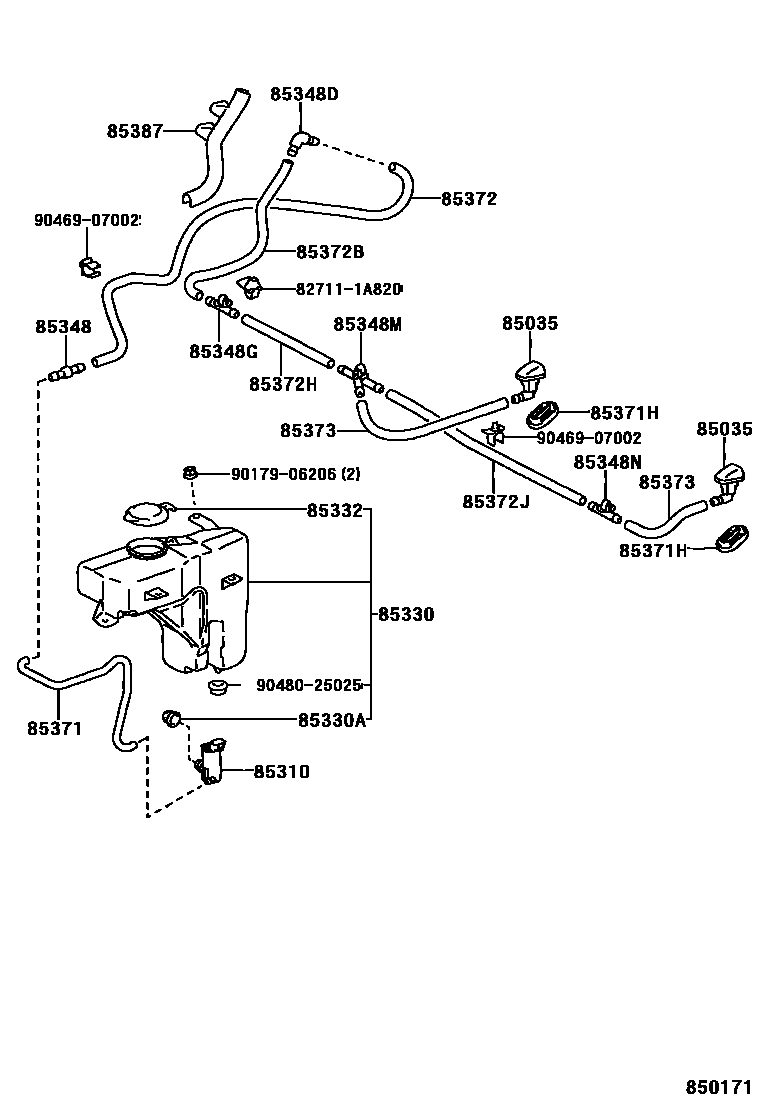

Toyota CENTURY — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
BLACK,202
GRAY ME.MS.,1B6
SILVER ME.,1C0
BLACK,202
DK. GREEN MC. P.I.O.,6N9
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.MS.,8M3
DK. GREEN MC. P.I.O,6N9
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1100(*H,L=530); L=490
85371HCOVER, WASHER NOZZLE SERVICE HOLE
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=880)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=430); L=1450(*H,L=460)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=195); L=1450(*H,L=230)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=565)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=250)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
827111A820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A820
9017906206
main90179-06206
9046907002
main90469-07002
9048025025
main90480-25025
22 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota CENTURY
This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CENTURY. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
