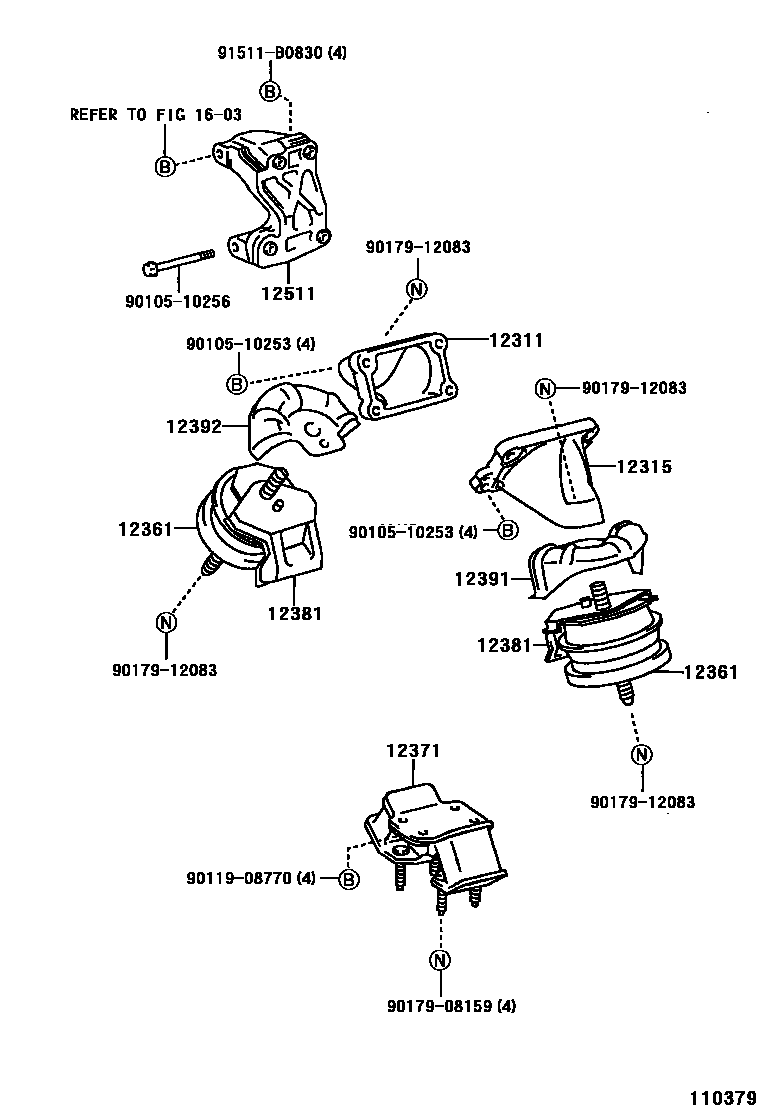

Toyota CENTURY — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12361INSULATOR, ENGINE MOUNTING, FRONT
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12381STABILIZER, ENGINE MOUNTING
12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12511BRACKET, ALTERNATOR, NO.1
1603RADIATOR & WATER OUTLET
9010510253
main90105-10253
9010510256
main90105-10256
9011908770
main90119-08770
9017908159
main90179-08159
9017912083
main90179-12083
91511B0830
main91511-B0830
15 parts on this diagram · 1 diagram in section
MOUNTING for Toyota CENTURY
This section contains 15 genuine Toyota parts for the MOUNTING system of the Toyota CENTURY. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
