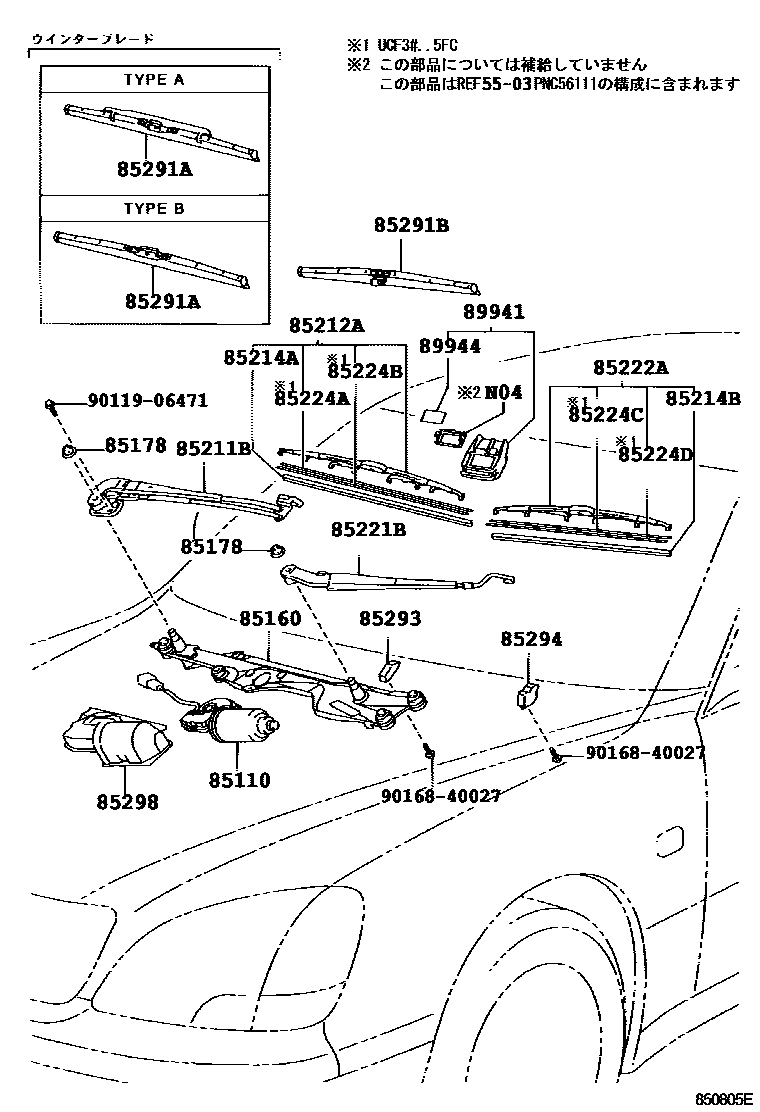

Toyota CELSIOR — WINDSHIELD WIPER

5503

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-50130iUCF3#200307

85160LINK ASSY, WINDSHIELD WIPER

main85150-50130iUCF3#200307

main85150-50140iUCF3#200307

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iUCF3#200008-200307

85211BARM, FRONT WIPER, RH

main85211-50130iUCF3#200008-200307

85212ABLADE, FR WIPER, RH

main85212-50080iUCF3#200307

85214ARUBBER, WIPER, RH

main85214-50100iUCF3#200408

main85214-50120iUCF3#200008-200307

85214BRUBBER, WIPER, LH

main85214-50060iUCF3#200408-200607

main85214-50061iUCF3#200608

main85214-50130iUCF3#200307-200407

85221BARM, FRONT WIPER, LH

main85221-50110iUCF3#200008-200307

85222ABLADE, FR WIPER, LH

main85222-50070iUCF3#200008-200307

main85222-50071iUCF3#200608

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44010iUCF3#200008-200307

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44010iUCF3#200008-200307

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-44020iUCF3#200008-200307

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-44020iUCF3#200008-200307

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-50060iUCF3#200307

main85291-50070iUCF3#200008-200307

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-50040iUCF3#200008-200302

main85291-50041iUCF3#200302-200307

85293STEP, LINEAR WIPER, RH

main85293-50010iUCF3#200008-200307

85294STEP, LINEAR WIPER, LH

main85294-50010iUCF3#200008-200307

85298COVER, WIPER MOTOR

main85111-50050iUCF3#200008-200307

89941SENSOR, RAIN

main89941-50020iUCF3#200008-200202

main89941-50021iUCF3#200202-200307

89944TAPE, RAIN SENSOR

main89944-50010iUCF3#200008-200207

main89944-50011iUCF3#200207-200307

9011906471

main90119-06471

9016840027

main90168-40027

23 parts on this diagram · 1 diagram in section
