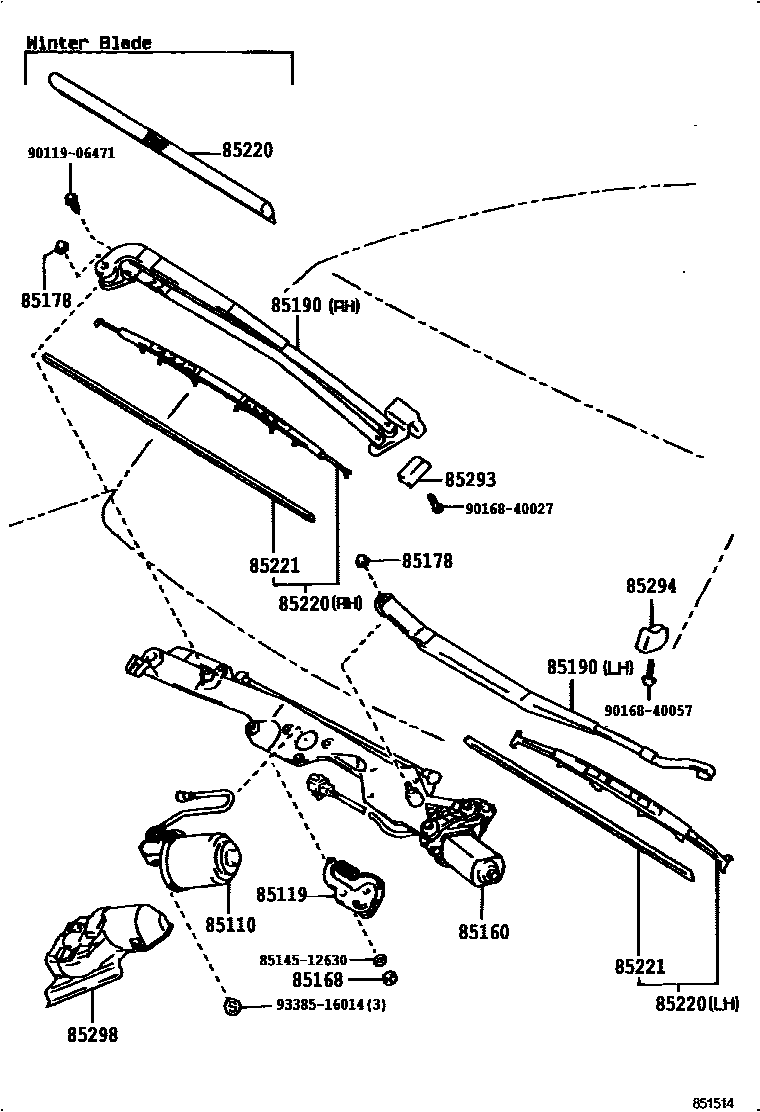

Toyota CELSIOR — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-50040iUCF1#198911-199208

main85110-50080iUCF1#199208-199410

85119CRANK, WINDSHIELD WIPER MOTOR

main85119-50030iUCF1#198911-199409

85160LINK ASSY, WINDSHIELD WIPER

main85150-50030iUCF1#198911-199208

main85150-50060iUCF1#199208-199410

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85186-12630iUCF1#198911-199409

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08042×2iUCF1#198911-199410

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85211-50020iUCF1#198911-199012

main85211-50040iUCF1#199012-199410

main85221-50030iUCF1#198911-199012

main85221-50050iUCF1#199012-199410

85220BLADE ASSY, WINDSHIELD WIPER

main85212-50020iUCF1#198911-199302

main85212-50021iUCF1#199302-199410

sub85212-40081

main85222-50010iUCF1#198911-199302

main85222-50011iUCF1#199302-199410

main85291-50030iUCF1#198911-199410

sub85291-22090

main85291-50040iUCF1#198911-199410

sub85291-50041

85221BLADE, WINDSHIELD WIPER

main85213-50020iUCF1#199012-199202

main85213-50021iUCF1#199202-199302

main85213-50022iUCF1#199302-199410

sub85214-50020

main85213-50040iUCF1#198912-199012

sub85213-50041

main85223-50010iUCF1#198911-199202

main85223-50011iUCF1#199202-199302

main85223-50012iUCF1#199302-199410

sub85214-50070

85293STEP, LINEAR WIPER, RH

main85293-50010iUCF1#198911-199410

85294STEP, LINEAR WIPER, LH

main85294-50010iUCF1#198911-199410

85298COVER, WIPER MOTOR

main85111-50020iUCF1#198911-199410

8514512630

main85145-12630

9011906471

main90119-06471

9016840027

main90168-40027

9016840057

main90168-40057

9338516014

main93385-16014

16 parts on this diagram · 1 diagram in section
