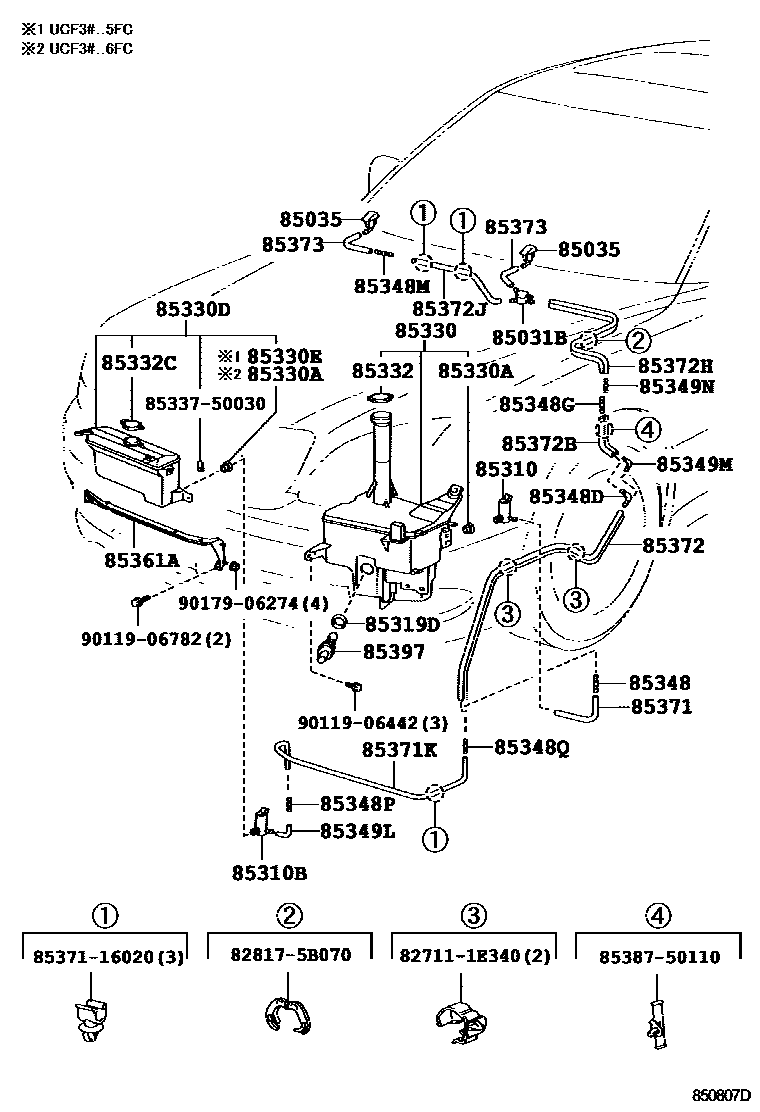

Toyota CELSIOR — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
WHITE PEARL CS.,062
SILKY WHITE PEARL CS,072
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
GRAYISH BROWN M.M.,4S1
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85330DJAR ASSY, WASHER
85330EBUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85332CCAP, FRONT WASHER TANK
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348PJOINT, WINDSHIELD WASHER HOSE, NO.1
85348QJOINT, WINDSHIELD WASHER HOSE, NO.2
85349LJOINT, WINDSHIELD WASHER ELBOW, NO.1
85349MJOINT, WINDSHIELD WASHER ELBOW,NO.2
85349NJOINT, WINDSHIELD WASHER HOSE, NO.3
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85371KHOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85397SWITCH ASSY,LEVEL WARNING
827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E340
828175B070PROTECTOR, WIRING HARNESS, NO.1
main82817-5B070
8533750030CASE, LEVEL WARNING SWITCH
main85337-50030
8537116020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-16020
8538750110CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-50110
9011906442
main90119-06442
9011906782
main90119-06782
9017906274
main90179-06274
37 parts on this diagram · 1 diagram in section
