Toyota CELSIOR — WINDSHIELD WASHER

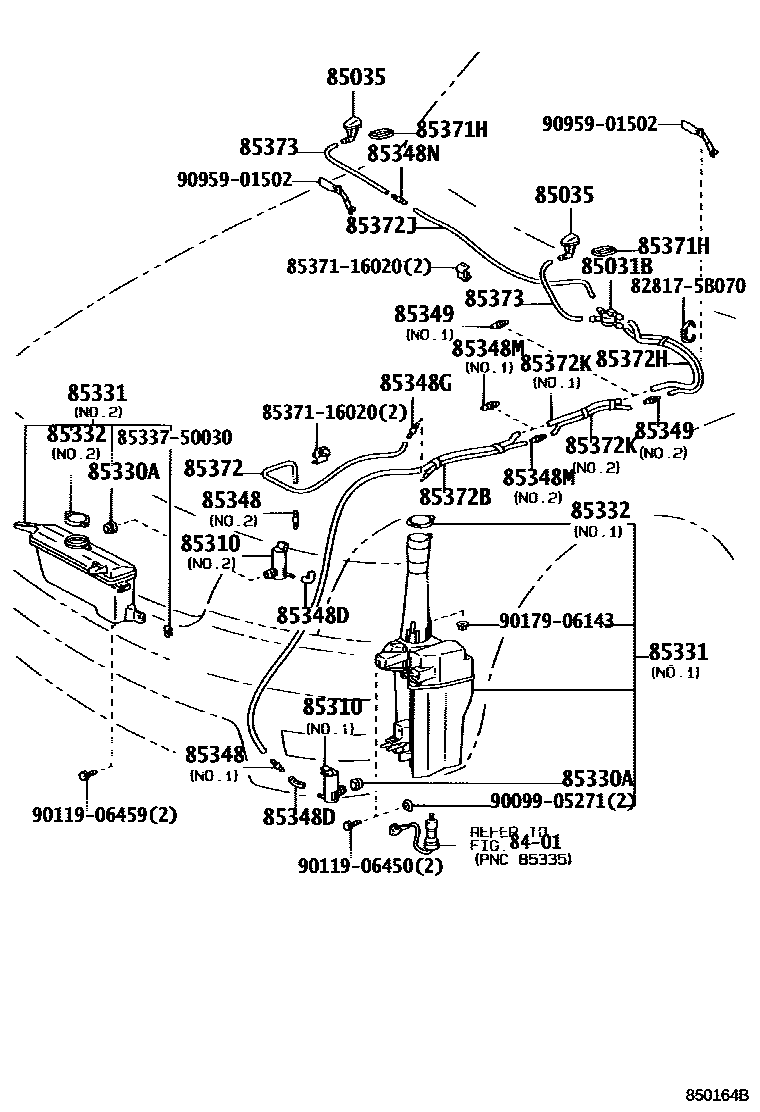

Parts diagram
8401
85031BVALVE SUB-ASSY, WASHER
main85375-50040i199410
85035NOZZLE SUB-ASSY, WASHER
main85385-50030-A0×2i199410-199509
SU.WHITE PM,051
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-B0×2i199707-200008
SILVER ME,199
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-C0×2i199410-199509
BLACK,202
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-D0×2i199707-200008
ROSE RED MC.,3M9
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-E1×2i199410-199509
GRAYISH BROWN ME.,4N1
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-G0×2i199410-199509
GRAYISH GREEN M.M.,6N0
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-G1×2i199410-199509
DK.GREEN MC.P.I.O.,6N9
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-G2×2i199707-199908
LT.GREEN ME.OP.,6P7
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-G3×2i199707-200008
DK.GREEN MC,6Q7
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-J0×2i199410-199707
DK.BLUE MC.,8L1
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-J1×2i199707-200008
DK.BLUE MC,8L4
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-K0×2i199410-199608
DK.ROSE MC.,929
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50030-K1×2i199707-199908
AMETHYST ME,941
sub85385-51010
sub85381-43010
sub85381-14010
main85385-50040-A0×2i199509-200008
SU.WHITE PM,051
sub85385-41060
sub85385-51010
sub85381-30070
sub85381-43010
sub85385-40010
main85385-50040-B0×2i199509-199707
SILVER ME,199
sub85385-41060
sub85385-51010
sub85381-30070
sub85381-43010
sub85385-40010
main85385-50040-C0×2i199509-200008
BLACK,202
sub85385-41060
sub85385-51010
sub85381-30070
sub85381-43010
sub85385-40010
main85385-50040-E0×2i199608-199707
BEIGE ME.,4M9
sub85385-41060
sub85385-51010
sub85381-30070
sub85381-43010
sub85385-40010
main85385-50040-E1×2i199509-199707
GRAYISH BROWN ME.,4N1
sub85385-41060
sub85385-51010
sub85381-30070
sub85381-43010
sub85385-40010
main85385-50040-G0×2i199509-199707
GRAYISH GREEN M.M.,6N0
sub85385-41060
sub85385-51010
sub85381-30070
sub85381-43010
sub85385-40010
main85385-50040-G1×2i199509-200008
DK.GREEN MC.P.I.O.,6N9
sub85385-41060
sub85385-51010
sub85381-30070
sub85381-43010
sub85385-40010
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-20190i199410
sub85330-33020
main85330-50010i199410-199707
main85330-50030i199707
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089×2i199410
85331JAR SUB-ASSY, WINDSHIELD WASHER
main85315-50090i199410-199707
main85315-50110i199410
main85315-50120i199707
85332CAP, WINDSHIELD WASHER JAR
main85316-16070i199410-199707
main85316-33050i199707
main85316-50030i199410
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85334-22470i199410
main85334-22480i199707
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-32110×2i199410
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85375-10260i199410
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85349-50030i199410
main85376-50040i199410
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
main85349-89122i199410
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85334-22480i199410
main85349-89122i199410
85371HCOVER, WASHER NOZZLE SERVICE HOLE
main85371-50010×2i199410
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080i199410
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main85376-50090i199410
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main85375-50090i199410
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main90099-33088i199410
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
main85375-50020i199410-199707
main85376-50020i199410
main90099-33953i199707
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080×2i199410-199707
828175B070PROTECTOR, WIRING HARNESS, NO.1
main82817-5B070
8533750030CASE, LEVEL WARNING SWITCH
main85337-50030
8537116020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-16020
9009905271
main90099-05271
9011906450
main90119-06450
9011906459
main90119-06459
9017906143
main90179-06143
9095901502
main90959-01502

28 parts on this diagram · 1 diagram in section
