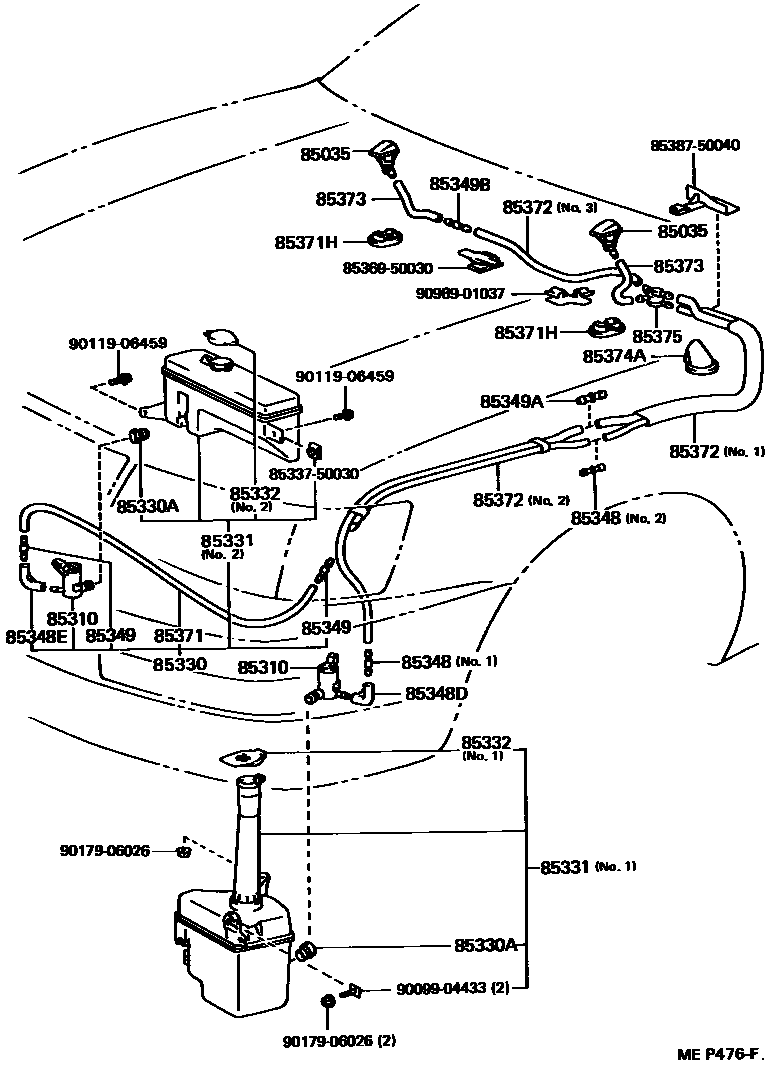

Toyota CELSIOR — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85341-50010-01×2iUCF1#199306-199410

BLACK,202

main85341-50010-05×2iUCF1#..B,C199306-199410

BEIGE METALLIC,4K9

main85341-50010-07×2iUCF1#199306-199410

DARK GREEN M.I.O.,6K4

main85341-50010-08×2iUCF1#199306-199410

WHITE PEARL MICA,051

main85341-50010-13×2iUCF1#199306-199308

SUPER SILVER 3 M,176

main85341-50010-23×2iUCF1#199306-199410

GRAY MICA METALLIC,180

main85381-50010-01×2iUCF1#198911-199306

BLACK,202

main85381-50010-02×2iUCF1#198911-199208

DEEP RED MICA,3H8

main85381-50010-03×2iUCF1#198911-199208

BLUISH GRAY MICA M,172

main85381-50010-05×2iUCF1#..B,C198911-199306

BEIGE M,4K9

main85381-50010-06×2iUCF1#..B,C198911-199208

DARK BROWN MICA,4K8

main85381-50010-07×2iUCF1#198911-199306

DARK GREEN M.I.0.,6K4

main85381-50010-08×2iUCF1#198911-199306

WHITE PEARL MICA,051

main85381-50010-12×2iUCF1#..B,C198911-199208

GRAYISH ROSE MICA M,3H9

main85381-50010-13×2iUCF1#198911-199306

SUPER SILVER 3 M,176

main85381-50010-23×2iUCF1#198911-199306

GRAY MICA M,180

main85381-50010-B0×2iUCF1#199308-199410

SILVER ME.,199

main85381-50010-J0×2iUCF1#199208-199410

DK.BLUE MCFP,8J5

main85381-50010-K0×2iUCF1#..B,C199208-199410

GRAYISH PURPLE M,923

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20190×2iUCF1#199208-199410

sub85330-33020

main85330-50020×2iUCF1#198911-199208

85330JAR ASSY, WINDSHIELD WASHER

main85310-50030iUCF1#198911-199208

main85315-50030iUCF1#199208-199410

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2iUCF1#198911-199410

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-50030iUCF1#198911-199208

main85315-50040iUCF1#199208-199410

main85331-50010iUCF1#198911-199208

sub85315-50070

85332CAP, WINDSHIELD WASHER JAR

main85316-50030iUCF1#198911-199410

main85332-50010iUCF1#198911-199410

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22480iUCF1#198911-199410

main85376-50040iUCF1#198911-199410

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-32110×2iUCF1#199208-199410

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-16192iUCF1#198911-199208

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iUCF1#199208-199410

main85349-50030iUCF1#199208-199410

main85349-89122×2iUCF1#198911-199208

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-50030iUCF1#198911-199410

85349BJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iUCF1#198911-199410

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iUCF1#199208-199410

main90099-33080iUCF1#198911-199208

main90099-33813iUCF1#199208-199410

85371HCOVER, WASHER NOZZLE SERVICE HOLE

main85371-50010×2iUCF1#198911-199410

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85375-50080iUCF1#199208-199410

main85376-50080iUCF1#199208-199410

main85379-50040iUCF1#198911-199208

main85389-50040iUCF1#198911-199208

main90099-33084iUCF1#198911-199410

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iUCF1#198911-199410

85374APROTECTOR, WASHER HOSE

main85374-50010iUCF1#198911-199410

85375HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-50040iUCF1#198911-199410

8533750030CASE, LEVEL WARNING SWITCH

main85337-50030

8536950030CLAMP

main85369-50030

8538750040CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-50040

9009904433

main90099-04433

9011906459

main90119-06459

9017906026

main90179-06026

9098901037

main90989-01037

25 parts on this diagram · 2 diagrams in section
