Toyota CELSIOR — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1������-� 0003 1������-� 0004 1��� 0005 1��� 0006 1������������ 0007 1�������� & �����-��� ���� 0008 1�-� & �� �-���� 0009 1���,�-�,��� & ����-��

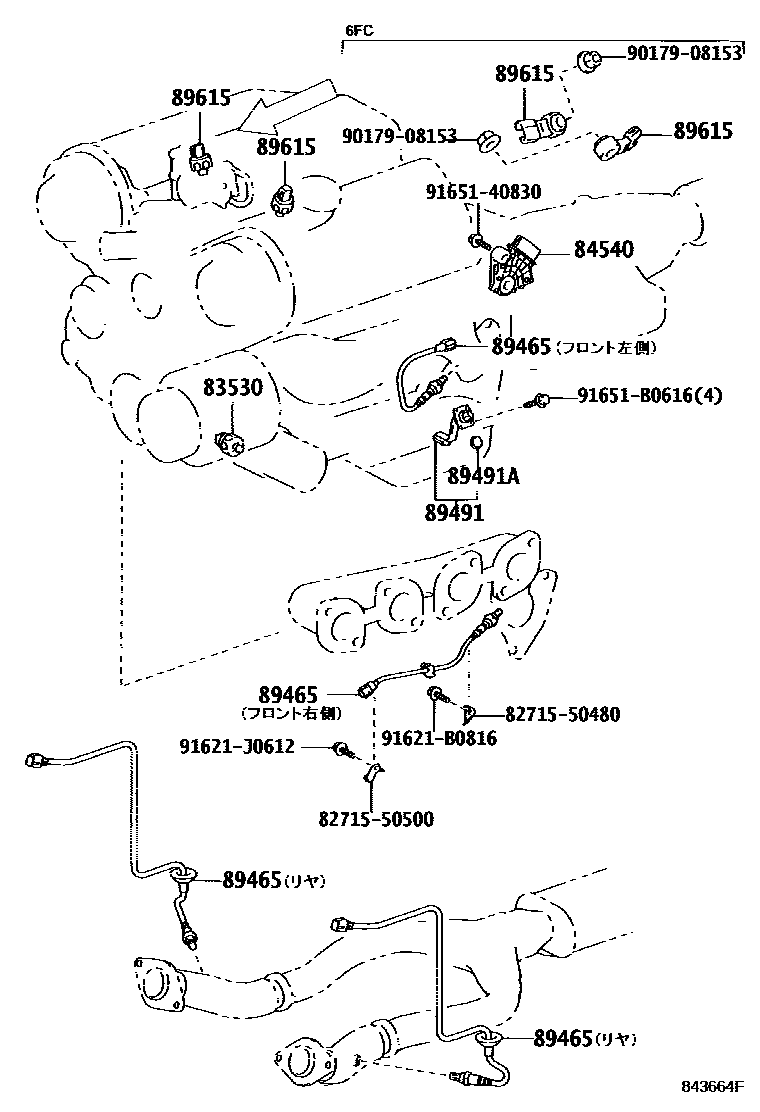

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUCF3#200307-200608

84540SWITCH ASSY, NEUTRAL START

main84540-50020iUCF3#200008-200307

89465SENSOR, OXYGEN

main89465-50120iUCF3#200008-200307

main89465-50130iUCF3#200307

main89465-50140×2iUCF3#200008-200307

main89465-50160×2iUCF3#200307

89491SENSOR, ENGINE OIL LEVEL

main89491-50030iUCF3#200008-200307

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iUCF3#200008-200307

89615SENSOR, KNOCK CONTROL

main89615-20090×2iUCF3#200307

main89615-30080×2iUCF3#200008-200307

8271550480BRACKET,WIRING HARNESS CLAMP

main82715-50480

8271550500BRACKET,WIRING HARNESS CLAMP

main82715-50500

9017908153

main90179-08153

91621B0816

main91621-B0816

91621J0612

main91621-J0612

9165140830

main91651-40830

91651B0616

main91651-B0616

13 parts on this diagram · 9 diagrams in section
