Toyota CELSIOR — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL & CONSOLE 0004 1INSTRUMENT PANEL & DOOR 0005 1COMBINATION SWITCH 0006 1COMBINATION SWITCH 0007 1SEAT 0008 1BODY

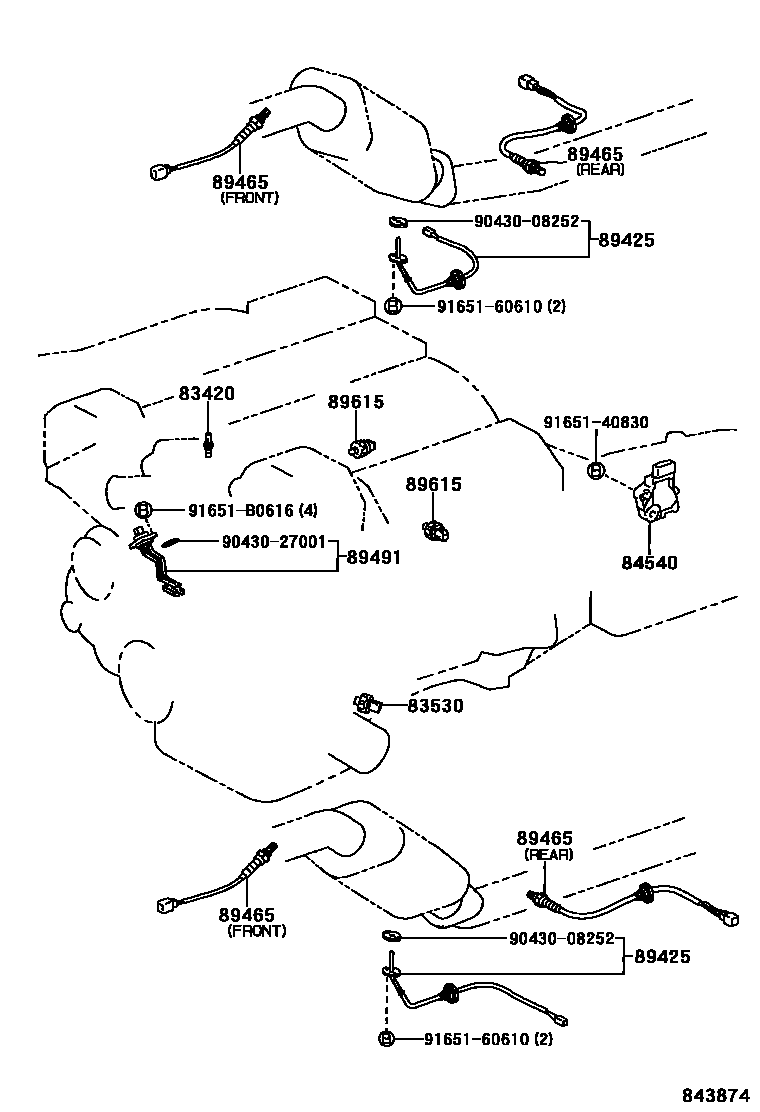

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16050iUCF2#199410-199411

main83420-20040iUCF2#199411-199707

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iUCF2#199410-199411

main83530-28020iUCF2#199801-200008

main83530-30090iUCF2#199411-199801

sub83530-60020

84540SWITCH ASSY, NEUTRAL START

main84540-30270iUCF2#199410

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-80010×2iUCF2#199410-199707

89465SENSOR, OXYGEN

main89465-50080×2iUCF2#199410

main89465-50090×2iUCF2#199410-199707

main89465-50110×2iUCF2#199707

89491SENSOR, ENGINE OIL LEVEL

main89491-30050iUCF2#199707

main89491-50020iUCF2#199410-199707

89615SENSOR, KNOCK CONTROL

main89615-12040×2iUCF2#199707

main89615-50010×2iUCF2#199410-199707

9043008252

main90430-08252

9043027001

main90430-27001

9165140830

main91651-40830

9165160610

main91651-60610

91651B0616

main91651-B0616

12 parts on this diagram · 8 diagrams in section
