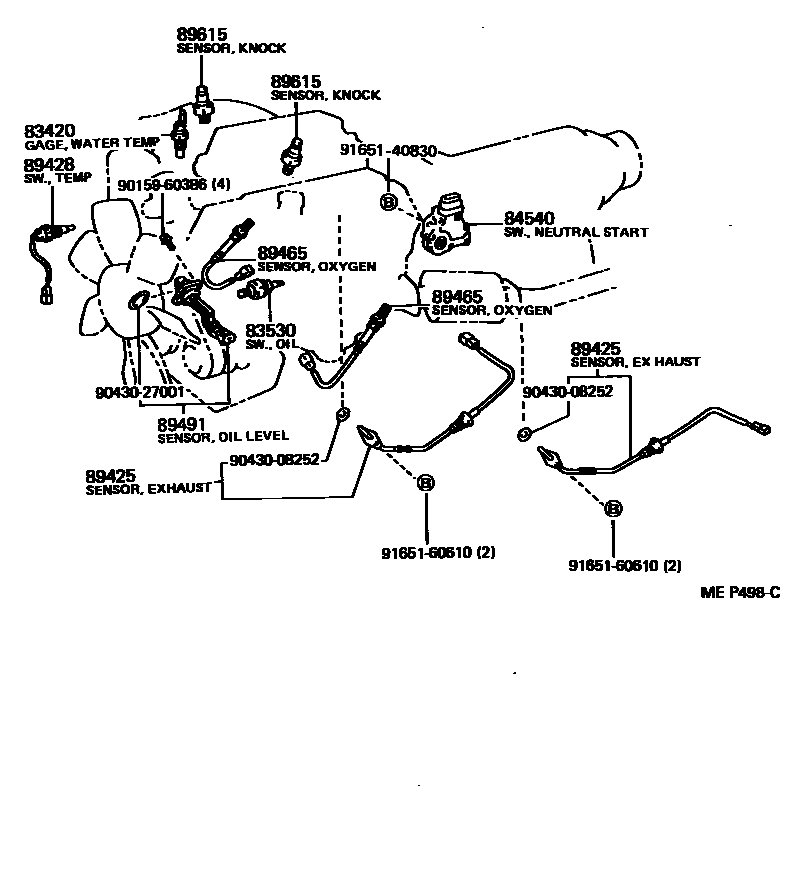

Toyota CELSIOR — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iUCF1#198911-199208

main83420-16050iUCF1#199208-199410

sub83420-20040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iUCF1#199208-199410

sub83530-30090

main83530-30080iUCF1#198911-199208

sub83530-60040

84540SWITCH ASSY, NEUTRAL START

main84540-30270iUCF1#199208-199410

main84540-30280iUCF1#199208-199410

main84540-50010iUCF1#198911-199208

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-59015×2iUCF1#198911-199208

main89425-59025×2iUCF1#199208-199410

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-50010iUCF1#198911-199208

ENGINE

main89429-24020iUCF1#199208-199410

main89429-32010iUCF1#198911-199208

RADIATOR,LOWER

89465SENSOR, OXYGEN

main89465-30100×2iUCF1#198911-199208

main89465-50040×2iUCF1#199208-199410

89491SENSOR, ENGINE OIL LEVEL

main89491-30030iUCF1#199109-199208

main89491-50010iUCF1#198911-199109

main89491-50020iUCF1#199208-199410

89615SENSOR, KNOCK CONTROL

main89615-20010×2iUCF1#198911-199005

main89615-50010×2iUCF1#199005-199410

9015960386

main90159-60386

9043008252

main90430-08252

9043027001

main90430-27001

9165140830

main91651-40830

9165160610

main91651-60610

13 parts on this diagram · 8 diagrams in section
