Toyota CELSIOR — STARTER

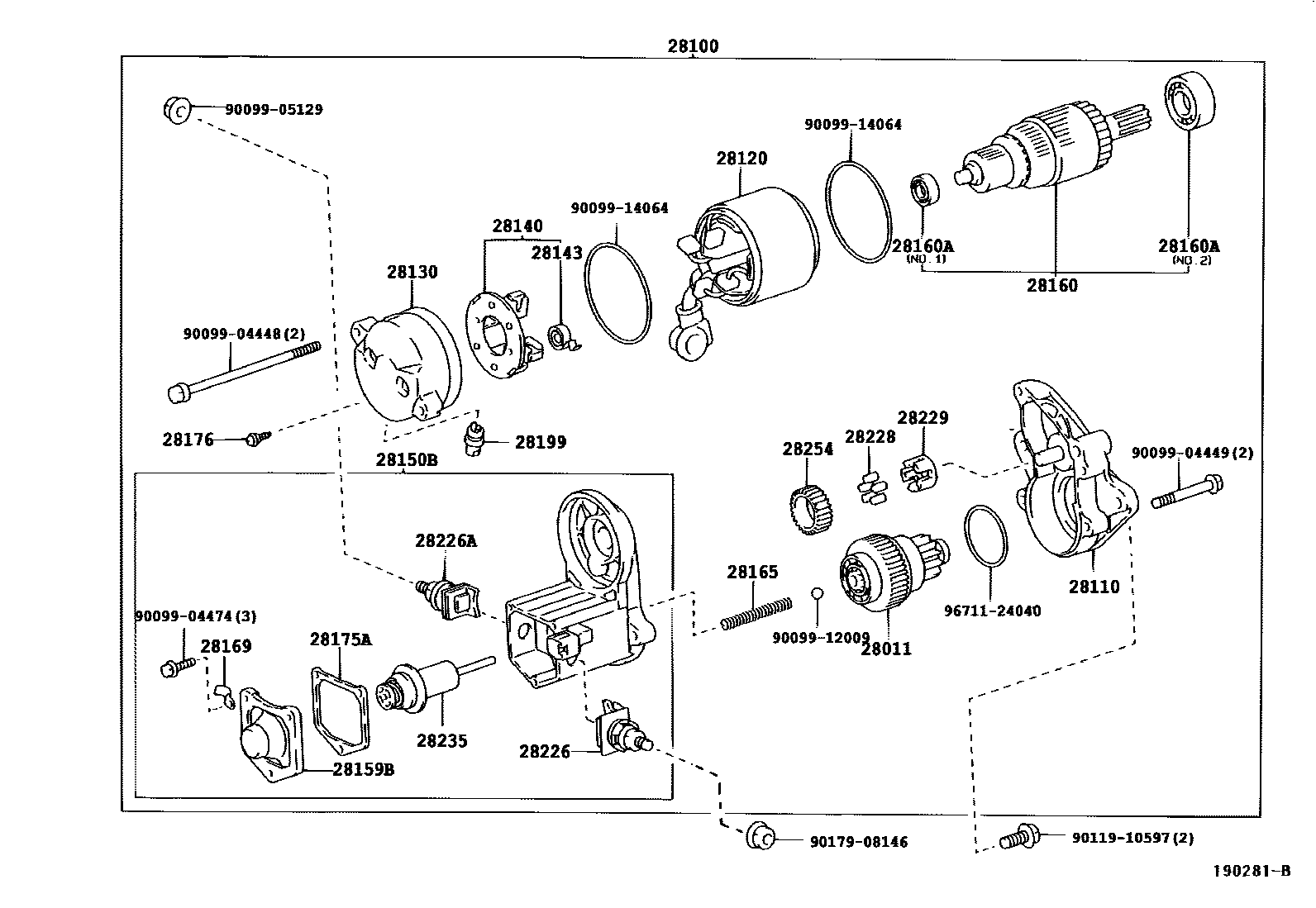

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-50050i199410

28100STARTER ASSY

main28100-50050i199410-199701

main28100-50051i199701-199704

main28100-50052i199704

28110HOUSING ASSY, STARTER DRIVE

main28110-50050i199410

28120YOKE ASSY, STARTER

main28120-74070i199410

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-50050i199410

28140HOLDER ASSY, STARTER BRUSH

main28140-76070i199410

28143SPRING, STARTER BRUSH

main90099-17112×4i199410

28150BSWITCH ASSY, MAGNETIC

main28150-50050i199410-199701

main28150-50051i199701-199707

main28150-50053i199707-199711

main28150-50054i199711

28159BCOVER, MAGNET SWITCH

main28159-55050i199410

28160ARMATURE ASSY, STARTER

main28160-74070i199410

28160ABEARING, STARTER ARMATURE

main90099-10196i199410

main90099-10197i199410

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-76070i199410

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-55050i199410

28175AGASKET, MAGNET SWITCH COVER

main28175-55050i199410

28176SCREW, STARTER

main28176-15090×2i199410-199510

main90099-00270×2i199510

28199COVER, STARTER

main28199-50050i199410

28226STARTER KIT, BATTERY TERMINAL

main28226-50050i199701-199707

main28226-50051i199707-199711

main28226-50052i199711

main28226-76070i199410-199701

28226ASTARTER KIT, MOTOR TERMINAL

main28226-74070i199410

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i199410

28229RETAINER, STARTER IDLE GEAR

main28229-74070i199410

28235PLUNGER, MAGNET SWITCH

main28235-55050i199410

28254PINION, STARTER IDLE GEAR

main28254-74070i199410

9009904448

main90099-04448

9009904449

main90099-04449

9009904474

main90099-04474

9009905129

main90099-05129

9009912009

main90099-12009

9009914064

main90099-14064

9011910597

main90119-10597

9017908146

main90179-08146

9671124040

main96711-24040

31 parts on this diagram · 1 diagram in section
