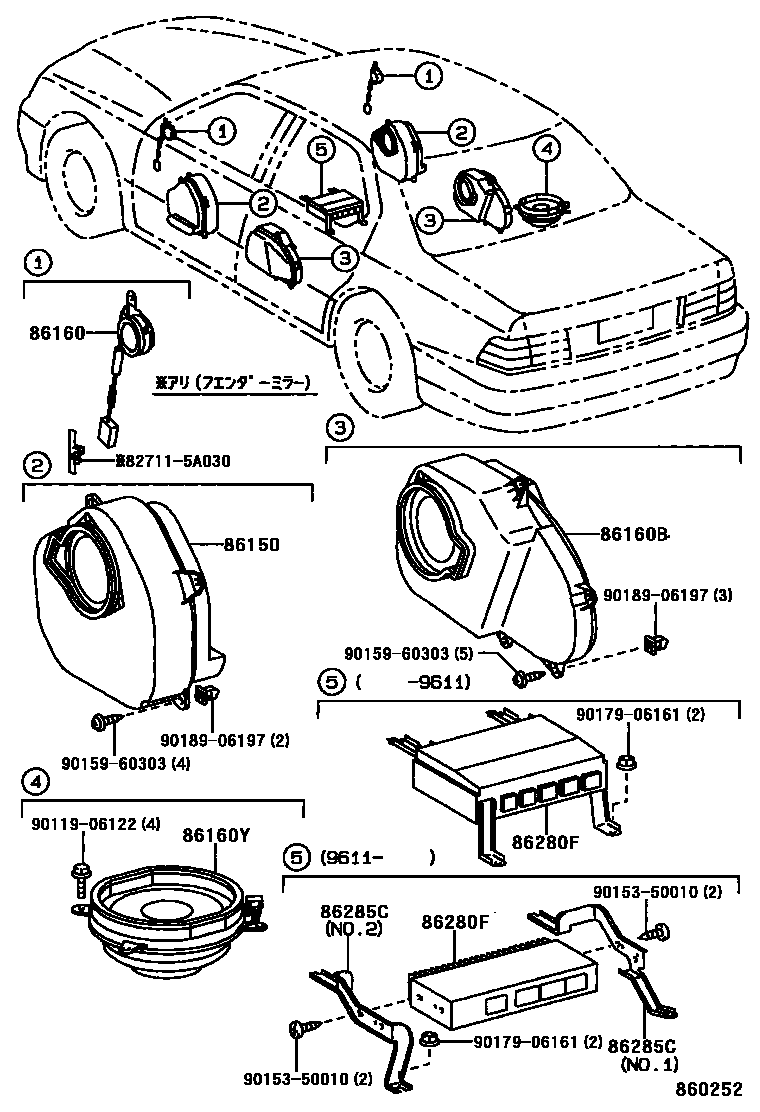

Toyota CELSIOR — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-50170iUCF2#199410-199707

main86150-50180iUCF2#199410-199707

main86150-50250iUCF2#199707

main86150-50260iUCF2#199707

86160SPEAKER ASSY, FRONT NO.1

main86160-50120iUCF2#199410

main86160-50130iUCF2#199410

86160BSPEAKER ASSY, REAR

main86150-50210iUCF2#199410-199508

main86150-50211iUCF2#199508

main86150-50220iUCF2#199410-199508

main86150-50221iUCF2#199508

86160YSPEAKER ASSY, REAR NO.2

main86160-50100iUCF2#199410

86280FAMPLIFIER ASSY, STEREO COMPONENT

main86280-50170iUCF2#199410-199612

sub90153-50010

main86280-50171iUCF2#..4FC;UCF20..A..5FC199612

main86280-50180iUCF2#..B,C199410-199608

main86280-50181iUCF2#199608-199612

sub90153-50010

main86280-50182iUCF2#199612-199707

main86280-50210iUCF2#199707

86285CBRACKET, AMPLIFIER, NO.1

main86285-50010iUCF2#..4FC;UCF20..A..5FC199612

main86285-50020iUCF2#..B,C199707

main86286-50010iUCF2#199612

827115A030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-5A030

9011906122

main90119-06122

9015350010

main90153-50010

9015960303

main90159-60303

9017906161

main90179-06161

9018906197

main90189-06197

12 parts on this diagram · 1 diagram in section
