Toyota CELSIOR — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64033EGRILLE SUB-ASSY, REAR SPEAKER
BLUE GRAY,TRIM1#
BLACK,TRIM2#
MEDIUM OAK,TRIM0#
SANDALWOOD,TRIM0#
AGATE,TRIM6#
64205ACOVER SUB-ASSY, ROOM PARTITION
64227EXTENSION, CENTER FLOOR TO BRACE
64228EXTENSION, CENTER FLOOR TO BRACE, NO.2
64275PAD, ROOM PARTITION TRIM, NO.2
64330PANEL ASSY, PACKAGE TRAY TRIM
BLUE GRAY,TRIM1#
10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27
MEDIUM OAK,TRIM0#
SANDALWOOD,TRIM0#
AGATE,TRIM6#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK,TRIM0#,1#,2#,6#; BLACK,TRIM1#,2#,6#
64337GARNISH, PACKAGE TRAY TRIM, RH
BLUE GRAY,TRIM1#
10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27
OAK,TRIM0#
SANDAL WOOD,TRIM0#
AGATE,TRIM6#
64339GARNISH, PACKAGE TRAY TRIM, LH
BLUE GRAY,TRIM1#
10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27
OAK,TRIM0#
SANDAL WOOD,TRIM0#
AGATE,TRIM6#
64705AGUARD SUB-ASSY, SPARE WHEEL
64707HGUARD SUB-ASSY, SPARE WHEEL, NO.2
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#,1#,2#,6#; BLACK,TRIM0#,1#,6#; BLACK,TRIM1#,2#,6#
10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#,2#,6#; BLACK,TRIM0#,1#,6#; BLACK,TRIM1#,2#,6#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
BLACK,TRIM1#,2#,6#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
BLACK,TRIM1#,2#,6#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM0#,1#,6#; BLACK,TRIM1#,6#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#,6#; BLACK,TRIM0#,1#,6#; BLACK,TRIM1#,2#,6#
10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
BLACK,TRIM0#,1#,2#,6#
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#,1#,2#,6#; BLACK,TRIM0#,1#,6#; BLACK,TRIM1#,2#,6#
BLACK,TRIM0#,1#,2#,6#; BLACK,TRIM0#,1#,6#; BLACK,TRIM1#,2#,6#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK,TRIM0#,1#,2#,6#; BLACK,TRIM0#,1#,6#; BLACK,TRIM1#,2#,6#
SHADOW GRAY,TRIM0#,1#,2#,6#; SHADOW GRAY,TRIM1#,2#,6#
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
64743COVER, SIDE TRIM TOOL BAG
BLACK,TRIM0#,1#,6#; BLACK,TRIM1#,6#
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
BLACK,TRIM0#,1#,2#,6#; BLACK,TRIM0#,1#,6#; BLACK,TRIM1#,2#,6#
64749CCLIP(FOR LUGGAGE DOOR STRIKER COVER)
BLACK,TRIM1#,2#,6#
64791COVER, BACK DOOR TRIM
BLACK,TRIM0#,1#,6#; BLACK,TRIM1#,6#
10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27
64791ACLIP(FOR BACK DOOR TRIM)
BLACK,TRIM0#,1#,2#,6#; BLACK,TRIM1#,6#
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9046710018
main90467-10018
9046710161
main90467-10161
9046804157
main90468-04157
9046805047
main90468-05047
9053014001
main90530-14001

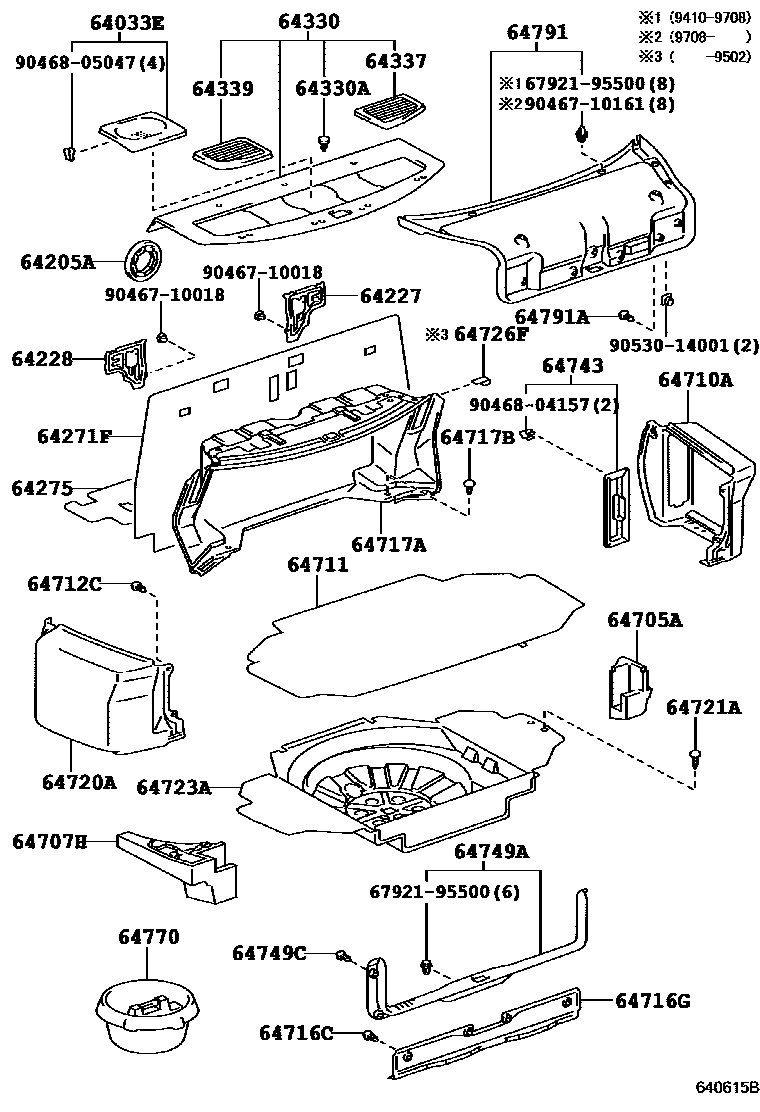

35 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CELSIOR
This section contains 35 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CELSIOR. Key components include: GRILLE SUB-ASSY, REAR SPEAKER, COVER SUB-ASSY, ROOM PARTITION, EXTENSION, CENTER FLOOR TO BRACE, EXTENSION, CENTER FLOOR TO BRACE, NO.2, TRIM, ROOM PARTITION.
