Toyota CELSIOR — MOUNTING

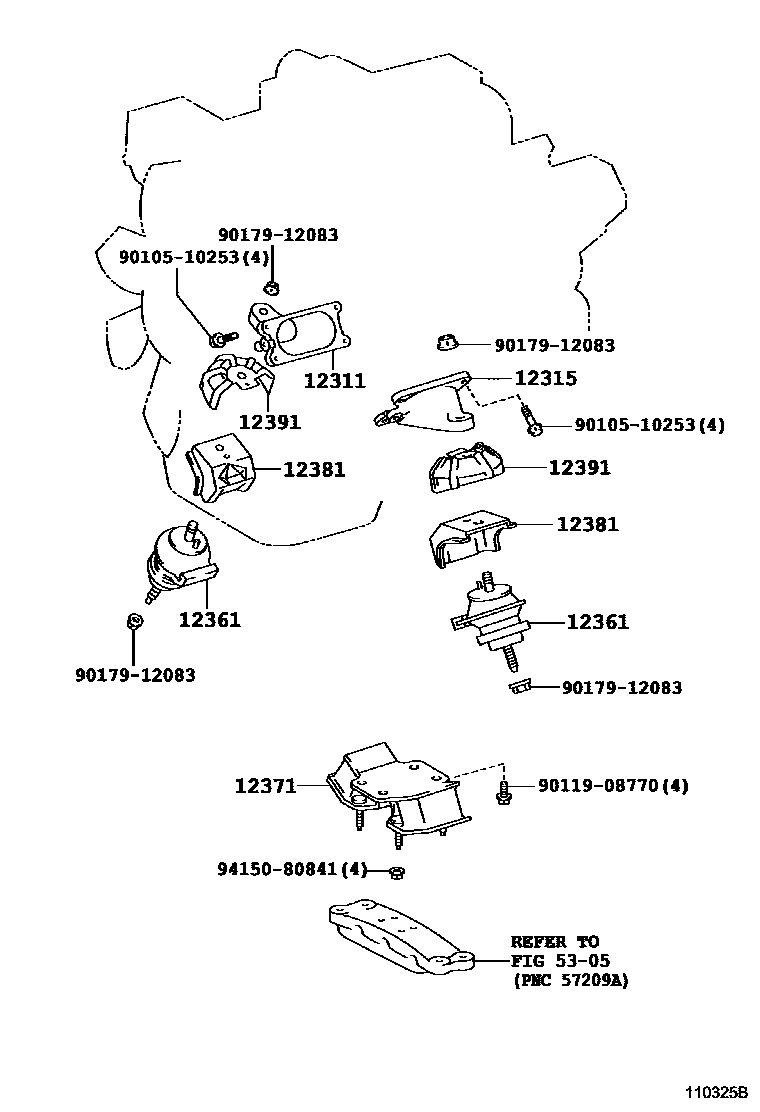

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-50020i199410-199707

main12311-50021i199707

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-50010i199410-199707

main12315-50011i199707

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-50021×2i199410-199707

main12361-50100×2i199707-199711

main12361-50140×2i199711

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-50060i199410

12381STABILIZER, ENGINE MOUNTING

main12381-50040×2i199410-199707

main12381-50080×2i199707

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-50020×2i199410-199707

main12391-50040×2i199707

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9010510253

main90105-10253

9011908770

main90119-08770

9017912083

main90179-12083

9415080841

main94150-80841

11 parts on this diagram · 1 diagram in section

MOUNTING for Toyota CELSIOR

This section contains 11 genuine Toyota parts for the MOUNTING system of the Toyota CELSIOR. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
