Toyota CELSIOR — MIRROR

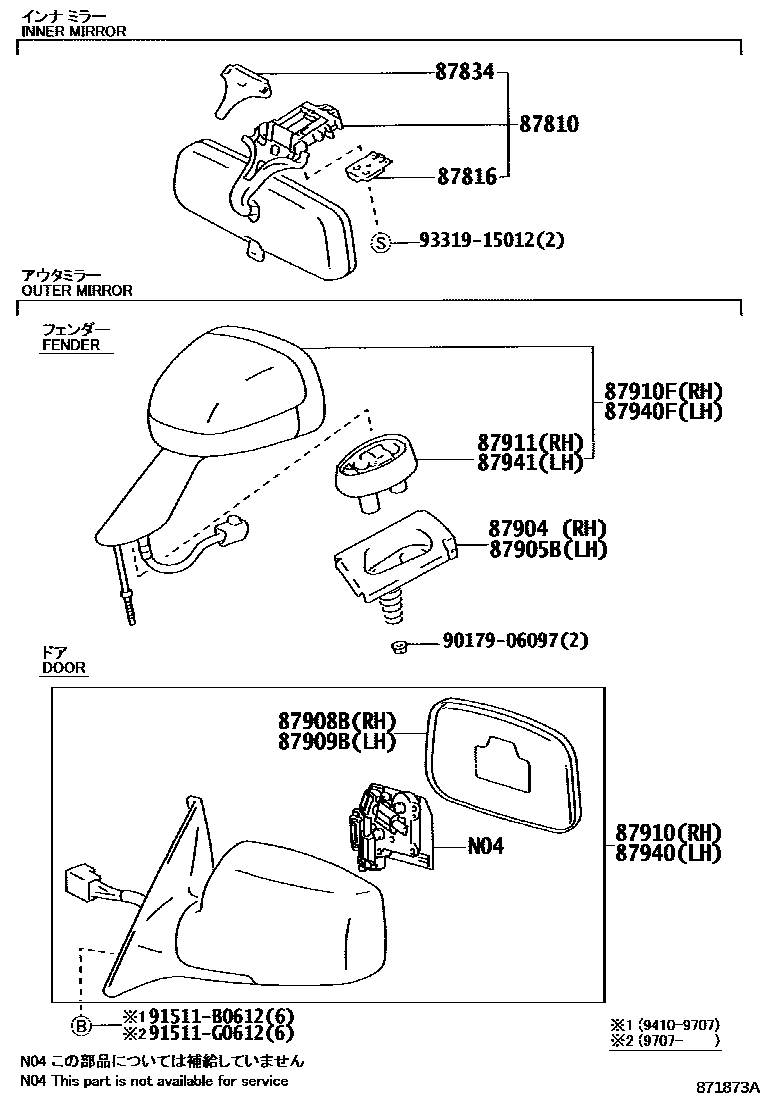

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-50071-A0i199410-199707

IVORY,TRIM0#

main87810-50071-B0i199608-199707

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM1#,2#

main87810-50071-G0i199410-199707

AGATE,TRIM6#

main87810-50080-B0i199608-200008

BLUE GRAY,TRIM1#,2#

main87810-50080-G0i199410-200008

AGATE,TRIM6#

main87810-50100-A0i199707-200008

IVORY,TRIM0#

main87810-50100-B0i199707-200008

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM1#,2#

main87810-50100-G0i199707-200008

AGATE,TRIM6#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199707

main74372-50010i199410-199707

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-50020-A0i199410-199707

IVORY,TRIM0#

main87834-50020-A1i199707-200008

IVORY,TRIM0#

main87834-50020-B0i199608-200008

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM1#,2#

main87834-50020-G0i199410-200008

AGATE,TRIM6#

87904SPRING SUB-ASSY, OUTER MIRROR, RH

main87904-50020i199410-199707

main87904-50030i199707

87905BSPRING SUB-ASSY, OUTER MIRROR, LH

main87905-50020i199410-199707

main87905-50030i199707

87908BMIRROR SUB-ASSY, RH

main87903-50020i199410

main87903-50030i199707

main87931-50260i199410

main87931-50290i199707

87909BMIRROR SUB-ASSY, LH

main87906-50020i199410

main87906-50040i199707

main87961-50250i199410

main87961-50270i199707

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-50190-A0i199410-199608

SU.WHITE PM,051

main87910-50190-B0i199410-199608

SILVER ME,199

main87910-50190-C0i199410-199608

BLACK,202

main87910-50190-E0i199410-199608

GRAYISH BROWN ME.,4N1

main87910-50190-G0i199410-199608

GRAYISH GREEN M.M.,6N0

main87910-50190-G1i199410-199608

DK.GREEN MC.P.I.O.,6N9

main87910-50190-J1i199410-199608

DK.BLUE MC.,8L1

main87910-50190-K0i199410-199608

DK.ROSE MC.,929

main87910-50260-A0i199410-199707

SU.WHITE PM,051

main87910-50260-B0i199410-199707

SILVER ME,199

main87910-50260-C0i199410-199707

BLACK,202

main87910-50260-G0i199410-199707

GRAYISH GREEN M.M.,6N0

main87910-50260-G1i199410-199707

DK.GREEN MC.P.I.O.,6N9

main87910-50260-J1i199410-199707

DK.BLUE MC.,8L1

main87910-50260-K0i199410-199608

DK.ROSE MC.,929

main87910-50270-A0i199608-199707

SU.WHITE PM,051

main87910-50270-B0i199608-199707

SILVER ME,199

main87910-50270-C0i199608-199707

BLACK,202

main87910-50270-E0i199608-199707

BEIGE ME.,4M9

main87910-50270-E1i199608-199707

GRAYISH BROWN ME.,4N1

main87910-50270-G0i199608-199707

GRAYISH GREEN M.M.,6N0

main87910-50270-G1i199608-199707

DK.GREEN MC.P.I.O.,6N9

main87910-50270-J0i199608-199707

DK.BLUE MC.,8L1

main87910-50290-A0i199707-200008

main87910-50290-B0i199707-200008

main87910-50290-C0i199707-200008

main87910-50290-D0i199707-200008

main87910-50290-G0i199707-200008

main87910-50290-G1i199707-199908

main87910-50290-G2i199707-200008

main87910-50290-J0i199707-200008

main87910-50290-K0i199707-199908

main87910-50300-A0i199905-199908

main87910-50300-B0i199707-200008

main87910-50300-C0i199707-200008

main87910-50300-D0i199707-200008

main87910-50300-G0i199905-199908

main87910-50300-G1i199707-199908

main87910-50300-G2i199707-200008

main87910-50300-J0i199707-200008

main87910-50300-K0i199707-199908

main87910-50380-A0i199707-200008

SU.WHITE PM,051

main87910-50380-B0i199707-200008

SILVER ME,199

main87910-50380-C0i199707-200008

BLACK,202

main87910-50380-D0i199707-200008

ROSE RED MC.,3M9

main87910-50380-G0i199707-200008

DK.GREEN MC.P.I.O.,6N9

main87910-50380-G1i199707-199908

LT.GREEN ME.OP.,6P7

main87910-50380-G2i199707-200008

DK. GREEN MC.,6Q7

main87910-50380-J0i199707-200008

DK.BLUE MC.,8L4

main87910-50380-K0i199707-199908

AMETHYST ME.,941

main87910-50390-A0i199905-199908

10TH ANNIVERSARY EDITION *(A),SU.WHITE PM,K15

main87910-50390-B0i199707-200008

SILVER ME,199

main87910-50390-C0i199707-200008

BLACK,202

main87910-50390-D0i199707-200008

ROSE RED MC.,3M9

main87910-50390-G0i199905-199908

10TH ANNIVERSARY EDITION *(A),DK.GREEN MC.P.I.O.,KD3

main87910-50390-G1i199707-199908

LT.GREEN ME.OP.,6P7

main87910-50390-G2i199707-200008

DK. GREEN MC.,6Q7

main87910-50390-J0i199707-200008

DK.BLUE MC.,8L4

main87910-50390-K0i199707-199908

AMETHYST ME.,941

87910FMIRROR ASSY, FENDER, RH

main87910-50250i199410-199707

main87910-50370i199707

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-50020i199410-199707

main87911-50030i199707

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-50160-A0i199608-199707

SU.WHITE PM,051

main87940-50160-B0i199608-199707

SILVER ME,199

main87940-50160-C0i199608-199707

BLACK,202

main87940-50160-E0i199608-199707

BEIGE ME.,4M9

main87940-50160-E1i199608-199707

GRAYISH BROWN ME.,4N1

main87940-50160-G0i199608-199707

GRAYISH GREEN M.M.,6N0

main87940-50160-G1i199608-199707

DK.GREEN MC.P.I.O.,6N9

main87940-50160-J0i199608-199707

DK.BLUE MC.,8L1

main87940-50190-A0i199410-199608

SU.WHITE PM,051

main87940-50190-B0i199410-199608

SILVER ME,199

main87940-50190-C0i199410-199608

BLACK,202

main87940-50190-E0i199410-199608

GRAYISH BROWN ME.,4N1

main87940-50190-G0i199410-199608

GRAYISH GREEN M.M.,6N0

main87940-50190-G1i199410-199608

DK.GREEN MC.P.I.O.,6N9

main87940-50190-J1i199410-199608

DK.BLUE MC.,8L1

main87940-50190-K0i199410-199608

DK.ROSE MC.,929

main87940-50250-A0i199410-199707

SU.WHITE PM,051

main87940-50250-B0i199410-199707

SILVER ME,199

main87940-50250-C0i199410-199707

BLACK,202

main87940-50250-G0i199410-199707

GRAYISH GREEN M.M.,6N0

main87940-50250-G1i199410-199707

DK.GREEN MC.P.I.O.,6N9

main87940-50250-J1i199410-199707

DK.BLUE MC.,8L1

main87940-50250-K0i199410-199608

DK.ROSE MC.,929

main87940-50270-A0i199707-200008

main87940-50270-B0i199707-200008

main87940-50270-C0i199707-200008

main87940-50270-D0i199707-200008

main87940-50270-G0i199707-200008

main87940-50270-G1i199707-199908

main87940-50270-G2i199707-200008

main87940-50270-J0i199707-200008

main87940-50270-K0i199707-199908

main87940-50280-A0i199905-199908

main87940-50280-B0i199905-199908

main87940-50280-C0i199707-200008

main87940-50280-D0i199707-200008

main87940-50280-G0i199707-200008

main87940-50280-G1i199707-199908

main87940-50280-G2i199707-200008

main87940-50280-J0i199707-200008

main87940-50280-K0i199707-199908

main87940-50360-A0i199707-200008

SU.WHITE PM,051

main87940-50360-B0i199707-200008

SILVER ME,199

main87940-50360-C0i199707-200008

BLACK,202

main87940-50360-D0i199707-200008

ROSE RED MC.,3M9

main87940-50360-G0i199707-200008

DK.GREEN MC.P.I.O.,6N9

main87940-50360-G1i199707-199908

LT.GREEN ME.OP.,6P7

main87940-50360-G2i199707-200008

DK. GREEN MC.,6Q7

main87940-50360-J0i199707-200008

DK.BLUE MC.,8L4

main87940-50360-K0i199707-199908

AMETHYST ME.,941

main87940-50370-A0i199707-200008

SU.WHITE PM,051

main87940-50370-B0i199905-199908

10TH ANNIVERSARY EDITION *(A),SILVER ME,KD2

main87940-50370-C0i199707-200008

BLACK,202

main87940-50370-D0i199707-200008

ROSE RED MC.,3M9

main87940-50370-G0i199905-199908

10TH ANNIVERSARY EDITION *(A),DK.GREEN MC.P.I.O.,KD3

main87940-50370-G1i199707-199908

LT.GREEN ME.OP.,6P7

main87940-50370-G2i199707-200008

DK. GREEN MC.,6Q7

main87940-50370-J0i199707-200008

DK.BLUE MC.,8L4

main87940-50370-K0i199707-199908

AMETHYST ME.,941

87940FMIRROR ASSY, FENDER, LH

main87940-50240i199410-199707

main87940-50350i199707

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-50020i199410-199707

main87941-50030i199707

9017906097

main90179-06097

91511B0612

main91511-B0612

91511G0612

main91511-G0612

9331915012

main93319-15012

17 parts on this diagram · 1 diagram in section

MIRROR for Toyota CELSIOR

This section contains 17 genuine Toyota parts for the MIRROR system of the Toyota CELSIOR. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, SPRING SUB-ASSY, OUTER MIRROR, RH, SPRING SUB-ASSY, OUTER MIRROR, LH.
