Toyota CELSIOR — METER

83132CASE, COMBINATION METER

main83841-50100iUCF3#200008-200307

main83841-50200iUCF3#200307

83132DCASE, COMBINATION METER, NO.2

main83842-50100iUCF3#200008-200307

main83842-50200iUCF3#200307

83133PLATE, COMBINATION METER, NO.1

main83811-50100iUCF3#200008-200307

83134COVER, COMBINATION METER, NO.1

main83821-50150iUCF3#200008-200307

main83821-50200iUCF3#200307

83138GGLASS, COMBINATION METER

main83852-50100iUCF3#200008-200307

83247BPLATE, METER CIRCUIT, NO.2

main83861-50100iUCF3#200008-200307

83291COMPUTER, COMBINATION METER

main83801-50150iUCF3#200008-200107

main83801-50151iUCF3#200107-200304

main83801-50153iUCF3#200304-200307

main83801-50250iUCF3#200307-200408

main83801-50251iUCF3#200408

main83801-50300iUCF31200307-200408

main83801-50301iUCF31200408

83295PANEL, METER DISPLAY

main83295-50010iUCF3#200008-200202

main83295-50011iUCF3#200202-200304

main83295-50012iUCF3#200304-200307

main83295-50020iUCF3#200408-200512

main83295-50021iUCF3#200601

83864PLATE, METER CIRCUIT, NO.4 (FOR COMPUTER)

main83864-50140iUCF3#200008-200307

main83864-50420iUCF3#200307

83875WIRE, COMBINATION METER, NO.1

main83875-50100iUCF3#200008-200307

83910CLOCK ASSY

main83910-50030iUCF3#200008-200307

9009900284

main90099-00284

9009900297

main90099-00297

9009900298

main90099-00298

9009900308

main90099-00308

9009900309

main90099-00309

9009900316

main90099-00316

9354014014

main93540-14014

9356855016

main93568-55016

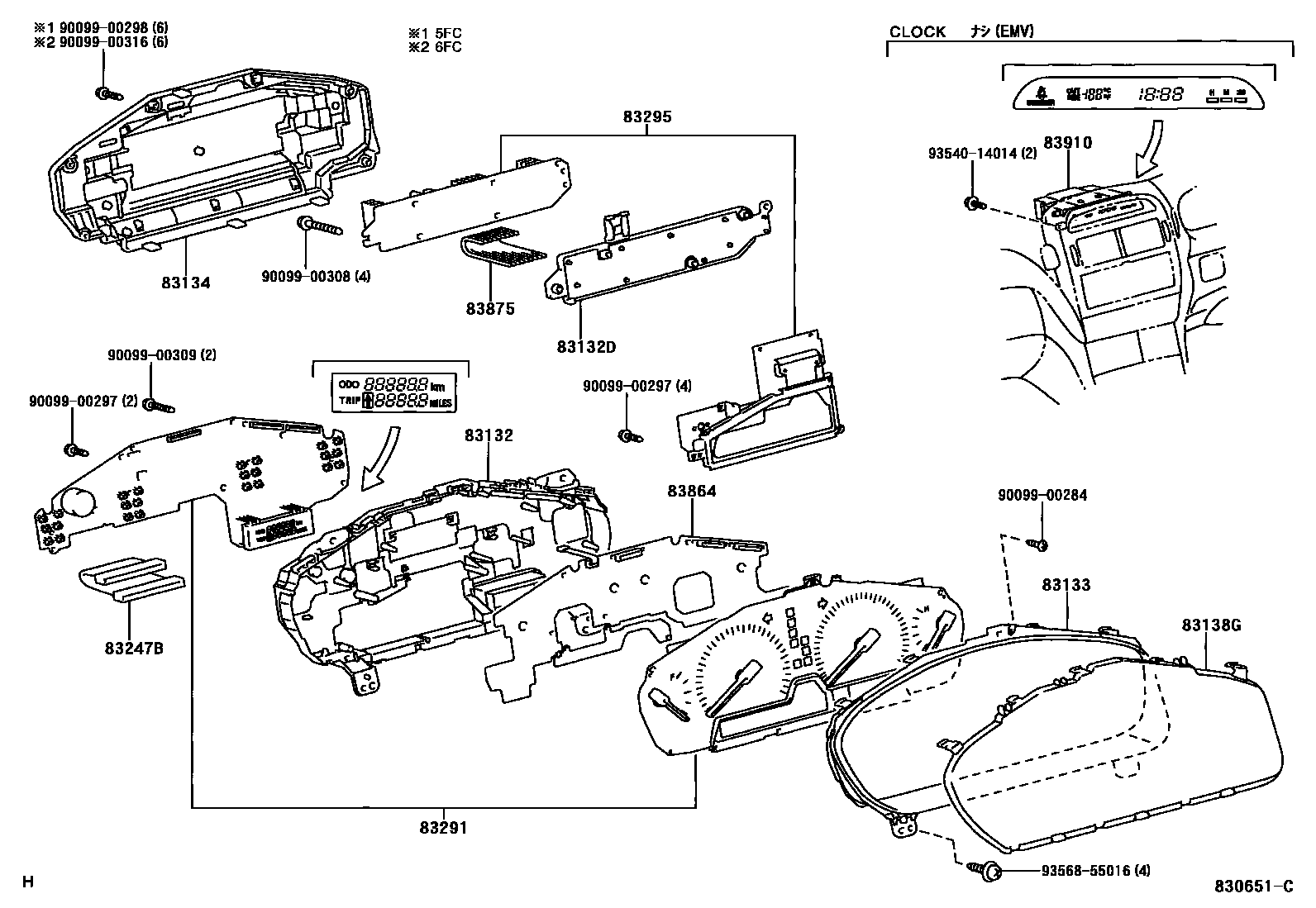

19 parts on this diagram · 1 diagram in section
