Toyota CELSIOR — METER

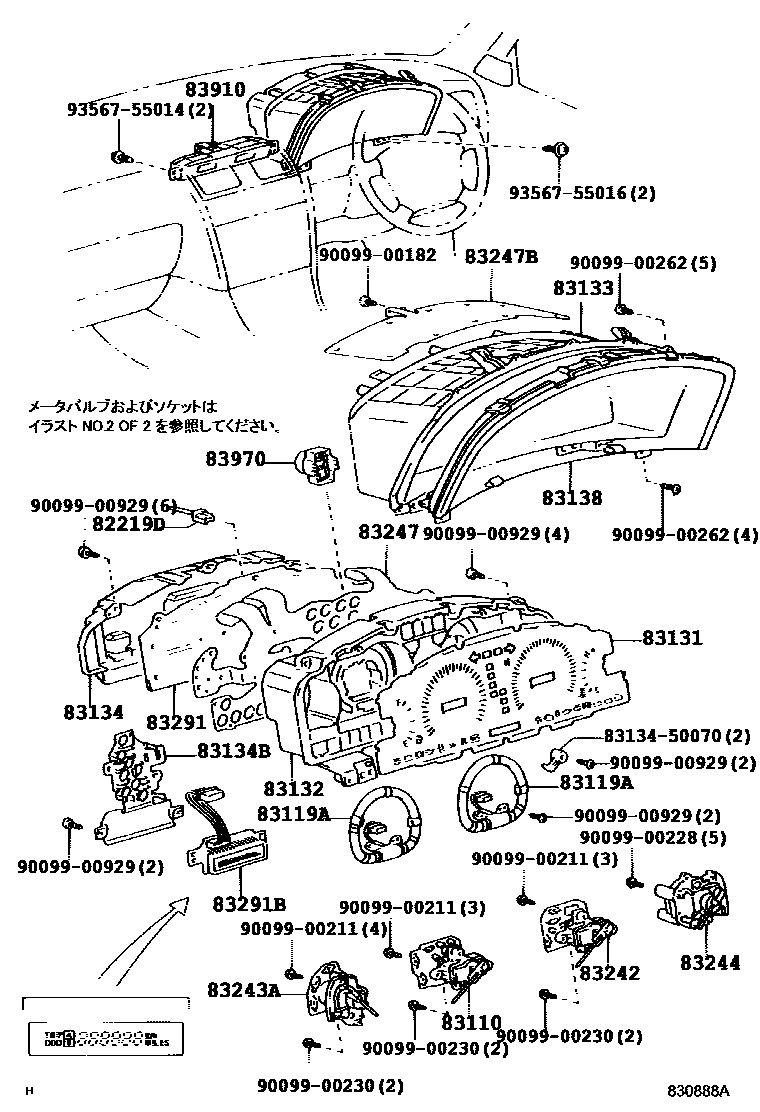

Parts diagram

82219DWIRE, SENSOR

main82219-24010i199410-199707

83110SPEEDOMETER ASSY

main83110-50430i199410-199707

main83220-50060i199707

83119ATUBE,CATHODE

main83119-50110i199410

main83119-50130i199410

83131DIAL, METER, NO.1

main83131-5A310i199410-199608

main83131-5A311i199608-199707

main83131-5A330i199410-199608

main83131-5A331i199608-199707

main83225-50060i199707

83132CASE, COMBINATION METER

main83132-50290i199410-199608

main83132-50291i199608-199707

main83841-50060i199707

83133PLATE, COMBINATION METER, NO.1

main83133-50150i199410

83134COVER, COMBINATION METER, NO.1

main83134-50370i199410-199707

main83821-50050i199707

83134BCOVER, COMBINATION METER, NO.2

main83134-50410i199410-199707

main83822-50050i199707

83138GLASS, SPEEDOMETER

main83138-50110i199410

83242TACHOMETER ASSY, ENGINE

main83242-50070i199410-199707

main83881-50010i199707

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-50130i199410-199707

main83882-50050i199707

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-50170i199410-199707

main83883-50050i199707

83247PLATE, METER CIRCUIT

main83247-5A450i199410-199608

main83247-5A451i199608-199707

83247BPLATE, METER CIRCUIT, NO.2

main83247-5A510i199410

83291COMPUTER, COMBINATION METER

main83291-50150i199410-199608

main83291-50151i199608-199611

main83291-50152i199611-199707

83291BCOMPUTER ASSY

main83247-5A490i199410-199707

main83862-50010i199707-200008

83910CLOCK ASSY

main83910-50010i199410-199510

main83910-50011i199510-199606

main83910-50012i199606-199707

83970BUZZER ASSY, REVERSE WARNING

main83970-20010i199410

8313450070COVER, COMBINATION METER, NO.1

main83134-50070

9009900182

main90099-00182

9009900211

main90099-00211

9009900228

main90099-00228

9009900230

main90099-00230

9009900262

main90099-00262

9009900929

main90099-00929

9356755014

main93567-55014

9356755016

main93567-55016

27 parts on this diagram · 4 diagrams in section
