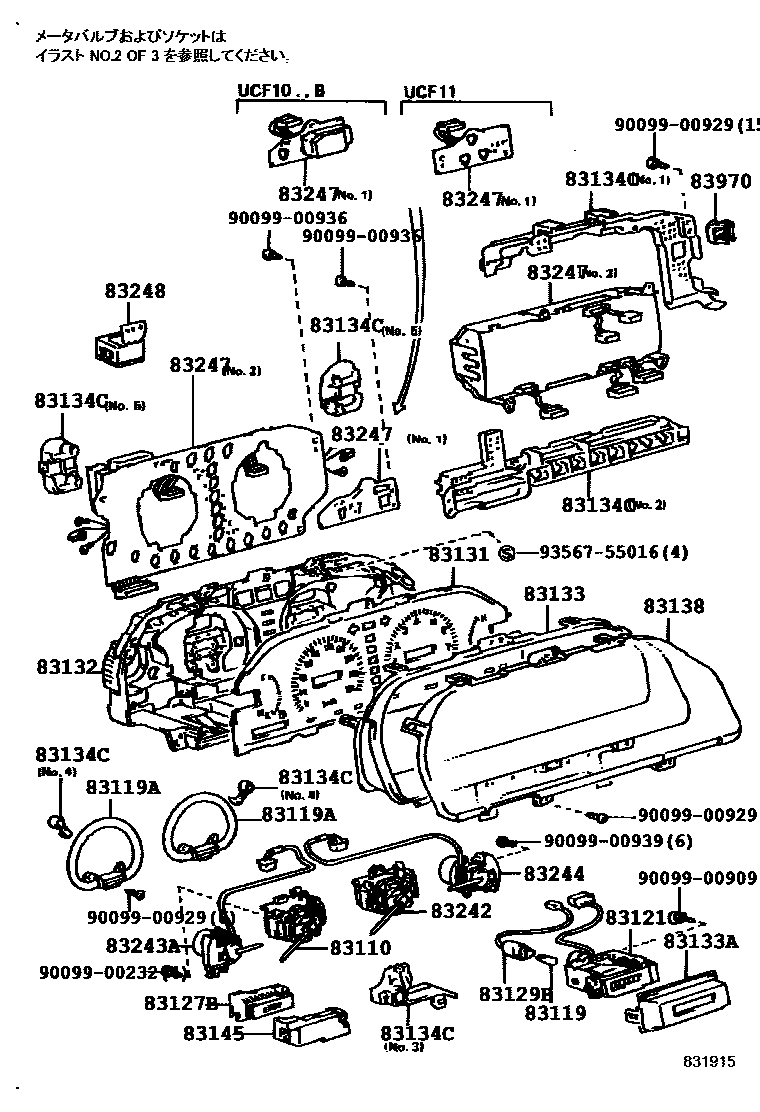

Toyota CELSIOR — METER

0001 1 0002 1 0003 1����� & ���� 0004 1����� & ���� 0005 1

83110SPEEDOMETER ASSY

main83110-50090iUCF1#198911-199208

main83110-50270iUCF1#199208-199410

83119BULB, COMBINATION METER, NO.3

main83119-50030iUCF1#198911-199208

83119ATUBE,CATHODE

main83119-50010×2iUCF1#198911-199208

main83119-50090×2iUCF1#199208-199410

83121CODOMETER ASSY

main83121-50070iUCF1#198911-199208

83127BCOMPUTER ASSY

main83127-50050iUCF1#198911-199208

83129BSOCKET SUB-ASSY, METER BULB

main83129-50030iUCF1#198911-199208

83131DIAL, METER, NO.1

main83131-50330iUCF11198911-199208

main83131-50350iUCF10..B198911-199208

main83131-50370iUCF10..A198911-199208

main83131-50390iUCF10..A198911-198912

main83131-50610iUCF10..A199101-199208

main83131-50690iUCF10..A199208-199410

main83131-50710iUCF10..A199208-199410

main83131-50730iUCF10..A199208-199410

main83131-50750iUCF11199208-199410

83132CASE, COMBINATION METER

main83132-50070iUCF11198911-199208

main83132-50090iUCF10..A198911-199208

main83132-50130iUCF10..B198911-199208

main83132-50170iUCF10..A199208-199410

main83132-50230iUCF10..A199208-199410

83133PLATE, COMBINATION METER, NO.1

main83133-50070iUCF1#198911-199208

main83133-50090iUCF1#199208-199410

83133APLATE, COMBINATION METER, NO.2

main83133-50050iUCF1#198911-199208

83134CCOVER, SPEEDOMETER

main83134-50070×2iUCF1#198911-199208

main83134-50130×2iUCF1#198911-199208

main83134-50150iUCF1#..A,C198911-199208

main83134-50170iUCF1#198911-199208

main83134-50210iUCF10..B198911-199208

main83134-50230iUCF1#198911-199208

main83134-50250iUCF1#199208-199410

main83134-50290iUCF1#199208-199410

main83134-50330×2iUCF1#199208-199410

83138GLASS, SPEEDOMETER

main83138-50030iUCF1#198911-199208

main83138-50050iUCF1#199208-199410

83145LENS, METER, NO.1

main83145-50050iUCF1#198911-199208

main83145-50070iUCF1#199208-199410

83242TACHOMETER ASSY, ENGINE

main83242-50030iUCF1#198911-199208

main83242-50050iUCF1#199208-199410

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-50030iUCF1#198911-199208

main83243-50050iUCF1#199208-199410

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-50050iUCF1#198911-199208

main83244-50070iUCF1#199208-199410

83247PLATE, METER CIRCUIT

main83134-50190iUCF10..A198911-199208

main83247-50210iUCF11198911-199208

main83247-50250iUCF10..A199101-199208

main83247-50270iUCF10..B198911-199208

main83247-50450iUCF11198911-199208

main83247-50470iUCF10..A198912-199208

main83247-50490iUCF10..A198911-199208

main83247-50550iUCF10..B198911-199208

main83247-50710iUCF1#199009-199208

main83247-50730iUCF10..A199101-199208

main83247-50750iUCF1#199208-199410

main83247-50790iUCF1#199208-199410

main83247-50810iUCF1#199208-199410

main83247-50850iUCF1#199208-199410

main83247-5A190iUCF10..A199208-199410

main83247-5A210iUCF10..A199208-199410

main83247-5A230iUCF10..A199208-199410

main83247-5A250iUCF11199208-199410

83248CHIME, SPEED WARNING

main86640-50020iUCF1#198911-199208

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iUCF1#198911-199410

9009900232

main90099-00232

9009900909

main90099-00909

9009900929

main90099-00929

9009900936

main90099-00936

9009900939

main90099-00939

9356755016

main93567-55016

25 parts on this diagram · 5 diagrams in section
