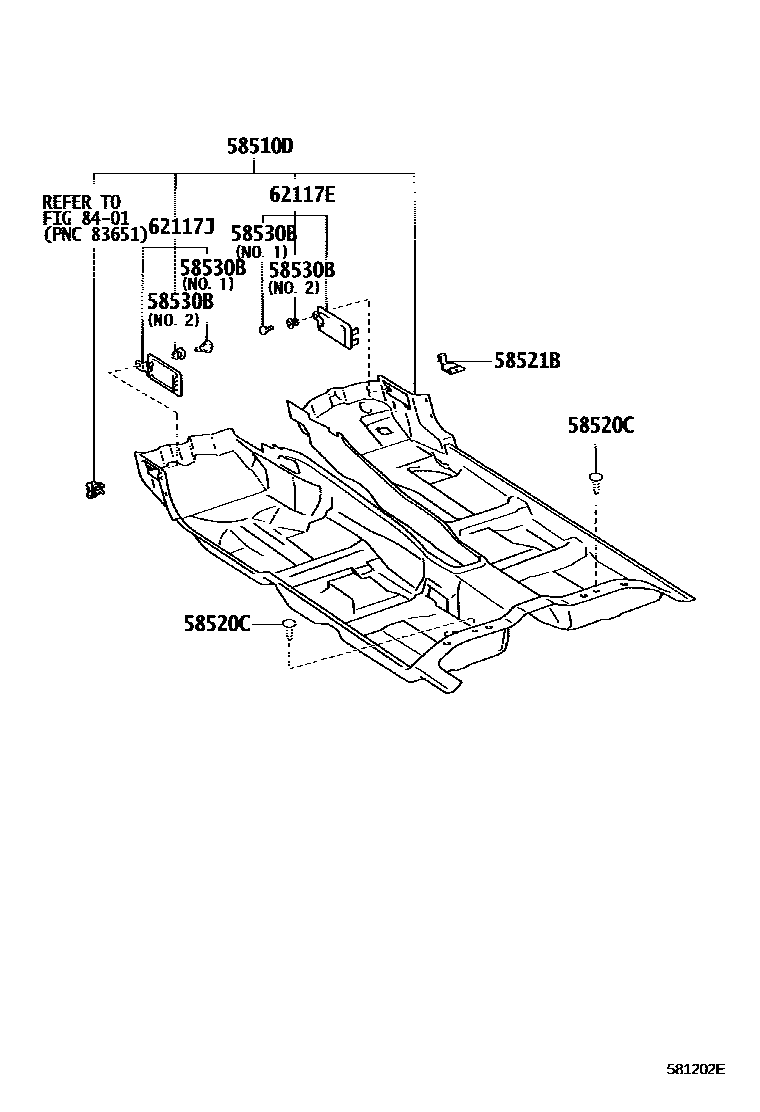

Toyota CELSIOR — MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-50470-A0i200008-200107

ECRU,TRIM03

main58510-50470-A1i200008-200107

IVORY,TRIM04

main58510-50470-B0i200008-200107

CHARCOAL,TRIM1#

main58510-50470-C0i200008-200107

BLACK,TRIM2#

main58510-50471-A0i200107-200302

ECRU,TRIM03

main58510-50471-A1i200107-200302

IVORY,TRIM04

main58510-50471-B0i200107-200302

CHARCOAL,TRIM1#

main58510-50471-C0i200107-200302

BLACK,TRIM2#

main58510-50472-A0i200302-200307

ECRU,TRIM03

main58510-50472-A1i200302-200307

IVORY,TRIM04

main58510-50472-B0i200302-200307

CHARCOAL,TRIM1#

main58510-50472-C0i200302-200307

BLACK,TRIM2#

main58510-50500-A0i200307-200411

NEW IVORY,TRIM07

main58510-50500-A1i200307-200411

ECRU,TRIM00

main58510-50500-B0i200307-200411

NEW GRAY,TRIM1#

main58510-50500-C0i200307-200411

BLACK,TRIM2#; BLACK,TRIM21,24

main58510-50501-A0i200412-200608

NEW IVORY,TRIM07

main58510-50501-A1i200412-200608

ECRU,TRIM00

main58510-50501-B0i200412-200608

NEW GRAY,TRIM1#

main58510-50501-C0i200412-200608

BLACK,TRIM2#; BLACK,TRIM21,24

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-A1×2i200008-200201

IVORY,TRIM03,04,1#,2#

main90467-07049-A0×2i200201-200307

IVORY,TRIM03,04,1#,2#

58521BHOOK, FLOOR CARPET

main58521-50030×4i200008-200307

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05015-A0×2i200008-200307

main90467-05015-A1×2i200008-200307

main90467-05015-A2×2i200307-200608

main90467-05015-B2×2i200008-200307

main90467-05015-B3×2i200307-200608

main90467-05015-C0×2i200307-200608

main90467-08031-A0×2i200008-200307

main90467-08031-A1×2i200008-200307

main90467-08031-A2×2i200307-200608

main90467-08031-B2×2i200008-200307

main90467-08031-B3×2i200307-200608

main90467-08031-C0×2i200307-200608

62117ECOVER, COWL SIDE TRIM SERVICE HOLE

main62117-50010-A0i200008-200307

IVORY,TRIM04

main62117-50010-A1i200307-200608

ECRU,TRIM00

main62117-50010-A2i200307-200608

NEW IVORY,TRIM07

main62117-50010-B0i200008-200307

MD.CHARCOAL,TRIM1#

main62117-50010-B1i200307-200608

NEW GRAY,TRIM1#

main62117-50010-C0i200307-200608

BLACK,TRIM2#; BLACK,TRIM21,24

62117JCOVER, COWL SIDE TRIM SERVICE HOLE, LH

main62117-50010-A0i200008-200010

IVORY,TRIM04

main62117-50010-A1i200008-200010

ECRU,TRIM03

main62117-50010-B0i200008-200010

MD.CHARCOAL,TRIM1#

main62117-50010-C0i200008-200010

BLACK,TRIM2#

main62117-50020-A0i200011-200307

IVORY,TRIM04

main62117-50020-A1i200307-200608

ECRU,TRIM00

main62117-50020-A2i200307-200608

NEW IVORY,TRIM07

main62117-50020-B0i200011-200307

MD.CHARCOAL,TRIM1#

main62117-50020-B1i200307-200608

NEW GRAY,TRIM1#

main62117-50020-C0i200307-200608

BLACK,TRIM2#; BLACK,TRIM21,24

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CELSIOR

This section contains 7 genuine Toyota parts for the MAT & CARPET system of the Toyota CELSIOR. Key components include: CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), HOOK, FLOOR CARPET, COVER, COWL SIDE TRIM SERVICE HOLE.
