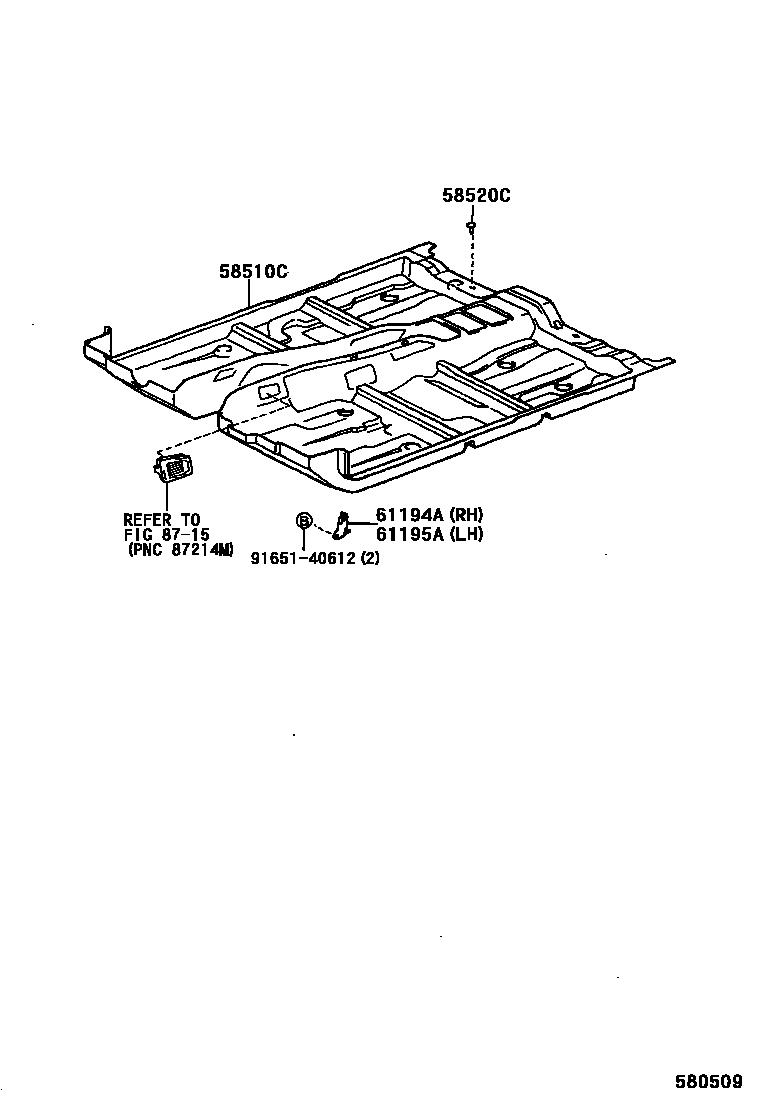

Toyota CELSIOR — MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
IVORY,TRIM0#
BLUE GRAY,TRIM1#
AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM0#,1#,6#; BLACK,TRIM1#,6#
GRAY,TRIM0#,1#,2#,6#; GRAY,TRIM03,15,62; GRAY,TRIM1#,2#,6#
61194ABRACKET, COWL SIDE TRIM, RH
61195ABRACKET, COWL SIDE TRIM, LH
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9165140612
main91651-40612
6 parts on this diagram · 1 diagram in section
MAT & CARPET for Toyota CELSIOR
This section contains 6 genuine Toyota parts for the MAT & CARPET system of the Toyota CELSIOR. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), BRACKET, COWL SIDE TRIM, RH, BRACKET, COWL SIDE TRIM, LH, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT.
