Toyota CELSIOR — LOCK CYLINDER SET

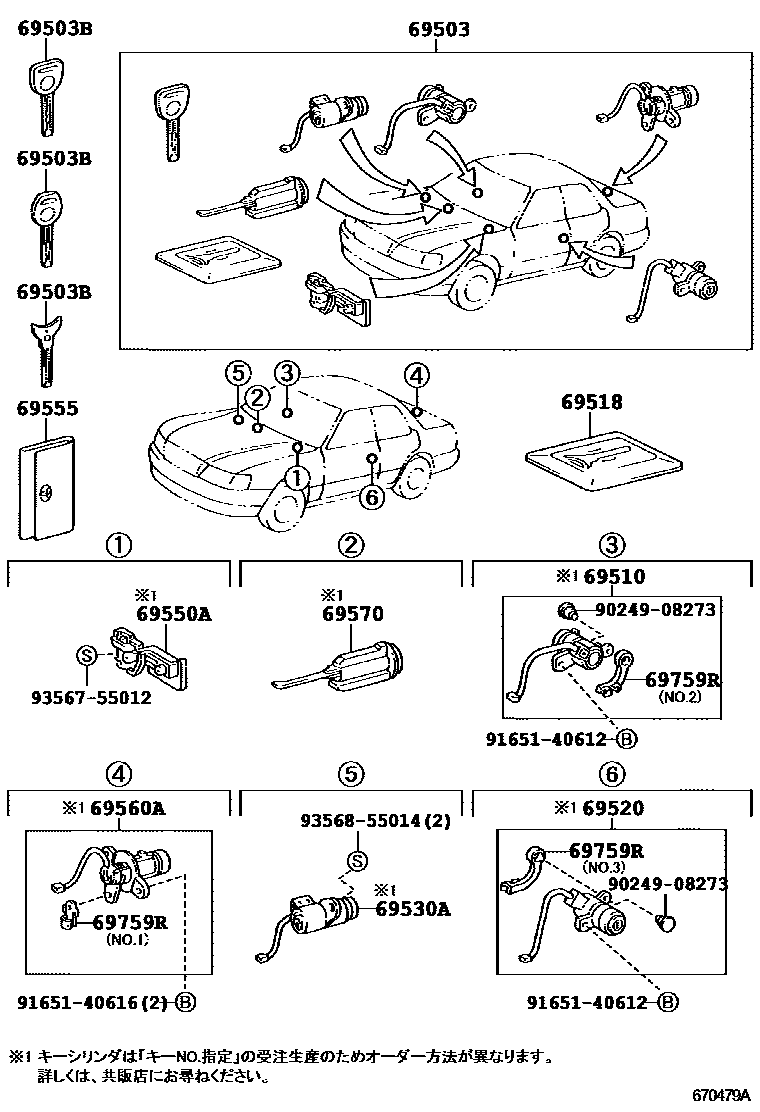

Parts diagram

69503CYLINDER SET, LOCK

main69005-50250i199410-199707

69503BKEY, CUT

main69515-50080i199410-199707

main69515-50120×2i199410-199707

main69515-50170i199707-200008

main69516-50070i199410-199707

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-50050i199410-199707

main69510-50060i199707

69518CARD, SPARE KEY

main69518-50030i199410-199707

main69518-50040i199707

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-50050i199410-199707

main69520-50060i199707

69530ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR OPENER CANCEL

main69530-30020i199707

main69530-50010i199410-199707

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-30130i199707

main69550-50020i199410-199707

69555COVER, KEY

main69555-50010i199410-199707

main69555-50020i199707

main69555-50030i199905-199908

10TH ANNIVERSARY EDITION *(A)

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-50050i199410-199707

main69560-50060i199707

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-50020i199410-199707

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-24080i199410

main69759-50110i199410-199707

main69759-50120i199410-199707

9024908273

main90249-08273

9165140612

main91651-40612

9165140616

main91651-40616

9356755012

main93567-55012

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota CELSIOR

This section contains 19 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CELSIOR. Key components include: CYLINDER SET, LOCK, KEY, CUT, CYLINDER ASSY, FRONT DOOR LOCK, RH, CARD, SPARE KEY, CYLINDER ASSY, FRONT DOOR LOCK, LH.
