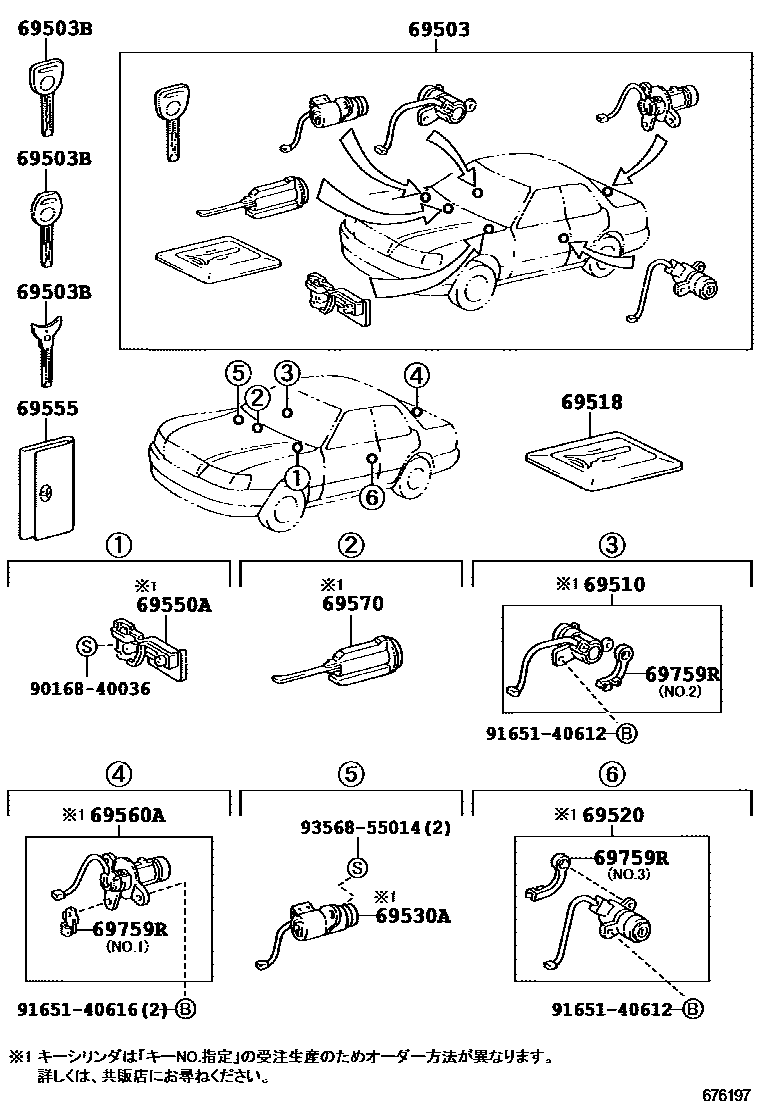

Toyota CELSIOR — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-50050i198911-199208

main69005-50170i199208-199410

69503BKEY, CUT

main69515-50050i198911-199208

main69515-50080i198911-199208

main69515-50100×2i199208-199410

main69516-50020i198911-199208

main69516-50050i199208-199410

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-50020i198911-199208

main69510-50040i199208-199410

69518CARD, SPARE KEY

main69518-50030i198911-199208

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-50020i198911-199208

main69520-50040i199208-199410

69530ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR OPENER CANCEL

main69530-50010i198911-199208

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50010i198911-199208

69555COVER, KEY

main69555-50010i198911-199410

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-50020i198911-199208

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-50010i198911-199208

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080i198911-199410

main69759-22090i198911-199410

main69759-24080i198911-199410

9016840036

main90168-40036

9165140612

main91651-40612

9165140616

main91651-40616

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota CELSIOR

This section contains 16 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CELSIOR. Key components include: CYLINDER SET, LOCK, KEY, CUT, CYLINDER ASSY, FRONT DOOR LOCK, RH, CARD, SPARE KEY, CYLINDER ASSY, FRONT DOOR LOCK, LH.
