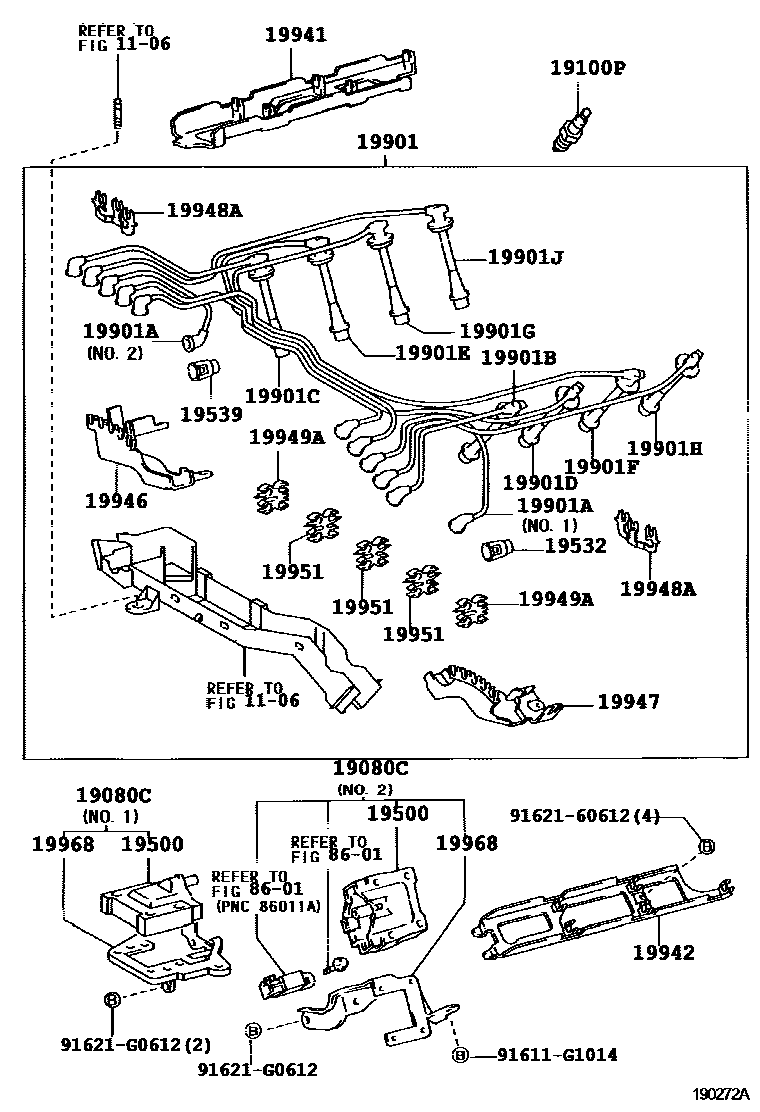

Toyota CELSIOR — IGNITION COIL & SPARK PLUG / GLOW PLUG
1106TIMING GEAR COVER & REAR END PLATE
19080CCOIL ASSY, W/BRACKET
19100PPLUG, SPARK
19500COIL ASSY, IGNITION
19532HOLDER, RESISTIVE CODE, NO.2
19539HOLDER, RESISTIVE CODE, NO.4
19901CORD SET, COIL & SPARK, W/RESISTIVE
19901ACORD, COIL RESISTIVE
19901BCORD, SPARK PLUG RESISTIVE, NO.1
19901CCORD, SPARK PLUG RESISTIVE, NO.2
19901DCORD, SPARK PLUG RESISTIVE, NO.3
19901ECORD, SPARK PLUG RESISTIVE, NO.4
19901FCORD, SPARK PLUG RESISTIVE, NO.5
19901GCORD, SPARK PLUG RESISTIVE, NO.6
19901HCORD, SPARK PLUG RESISTIVE, NO.7
19901JCORD, SPARK PLUG RESISTIVE, NO.8
19941CLAMP, RESISTIVE CORD, NO.1
19942CLAMP, RESISTIVE CORD, NO.2
19946CLAMP, RESISTIVE CORD, NO.3
19947CLAMP, RESISTIVE CORD, NO.4
19948ACLAMP, CORD, NO.5
19949ACLAMP, CORD, NO.6
19951CLAMP, CORD, NO.7
19968BRACKET, IGNITION COIL
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
91611G1014
main91611-G1014
9162160612
main91621-60612
91621G0612
main91621-G0612
28 parts on this diagram · 2 diagrams in section
IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota CELSIOR
This section contains 29 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota CELSIOR. Key components include: TIMING GEAR COVER & REAR END PLATE, COIL ASSY, W/BRACKET, PLUG, SPARK, COIL ASSY, IGNITION, HOLDER, RESISTIVE CODE, NO.2.
