Toyota CELSIOR — HEATING & AIR CONDITIONING - COMPRESSOR

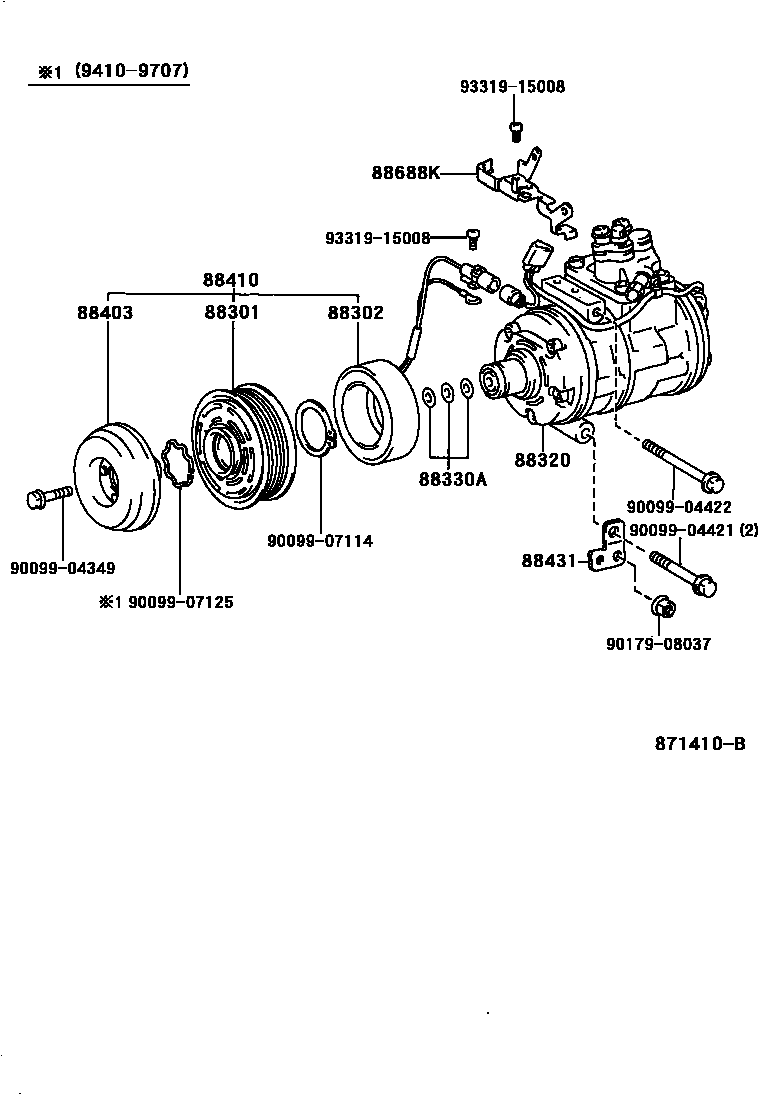

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-50030i199410-199707

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-3A030i199410-199707

88320COMPRESSOR ASSY, COOLER

main88320-50060i199410-199707

main88320-50080i199707

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i199410

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-50010i199410-199505

main88403-50020i199410

88410CLUTCH ASSY, MAGNET

main88410-50090i199410

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88433-50010i199410

88688KBRACKET, COOLER COMPRESSOR

main88688-3A570i199612

9009904349

main90099-04349

9009904421

main90099-04421

9009904422

main90099-04422

9009907114

main90099-07114

9009907125

main90099-07125

9017908037

main90179-08037

9331915008

main93319-15008

15 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CELSIOR

This section contains 15 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CELSIOR. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), HUB SUB-ASSY, MAGNET CLUTCH.
