Toyota CELSIOR — HEATING & AIR CONDITIONING - COMPRESSOR

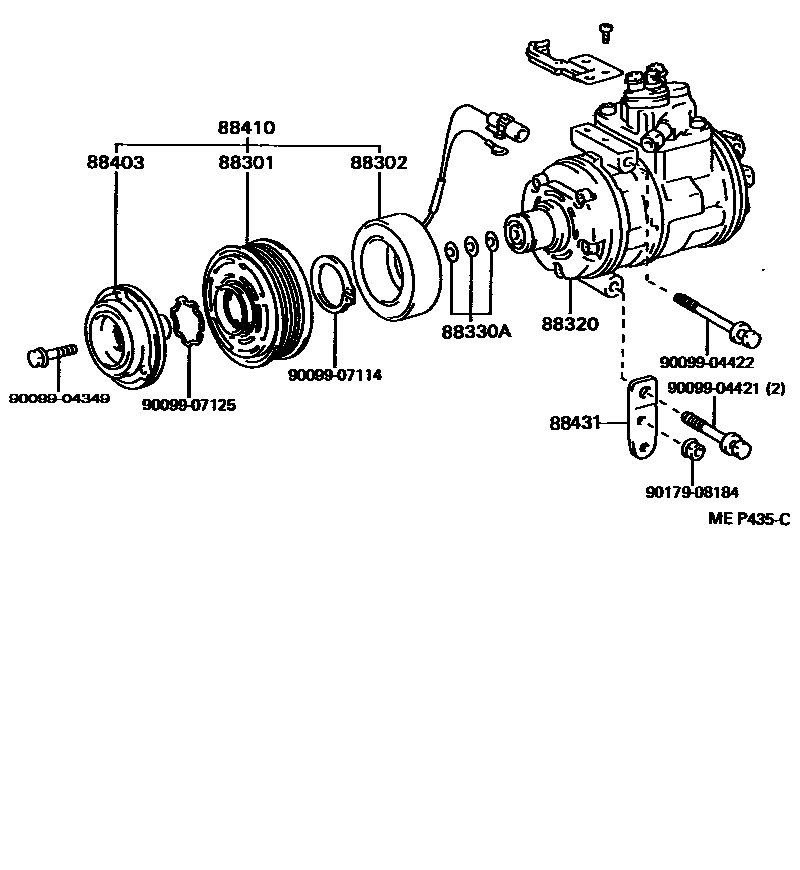

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-50030i198911-199410

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-50010i198911-199208

main88411-50030i199208-199410

88320COMPRESSOR ASSY, COOLER

main88320-50030i198911-199208

main88320-50040i199208-199410

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i198911-199410

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011i198911-199208

main88403-30290i199208-199410

88410CLUTCH ASSY, MAGNET

main88410-50020i198911-199208

main88410-50050i199208-199410

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-50010i198911-199111

main88433-50010i199111-199410

9009904349

main90099-04349

9009904421

main90099-04421

9009904422

main90099-04422

9009907114

main90099-07114

9009907125

main90099-07125

9017908184

main90179-08184

13 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CELSIOR

This section contains 13 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CELSIOR. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), HUB SUB-ASSY, MAGNET CLUTCH.
