Toyota CELSIOR — HEADLAMP

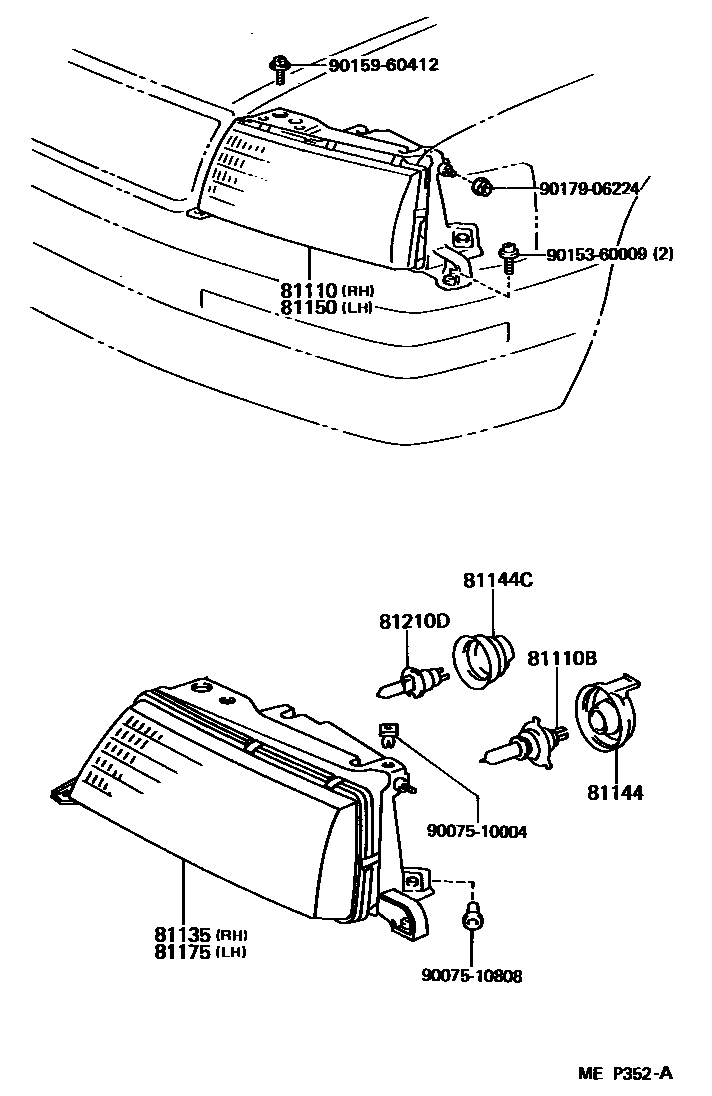

Parts diagram

81110HEADLAMP ASSY, RH

main81110-50080i198911-199208

main81110-50090i199208-199306

main81110-50091i199306-199410

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i198911-199301

main90981-22001×2i199301-199305

main90981-22004×2i199305-199410

81135UNIT ASSY, HEADLAMP, RH

main81130-50080i198911-199208

main81130-50090i199208-199306

main81130-50091i199306-199410

81144COVER, HEADLAMP, NO.1

main81139-20730×2i198911-199208

81144CCOVER, HEADLAMP SOCKET

main90075-99015×2i198911-199208

main90075-99072×2i199208-199410

81150HEADLAMP ASSY, LH

main81150-50080i198911-199208

main81150-50090i199208-199306

main81150-50091i199306-199410

81175UNIT ASSY, HEADLAMP, LH

main81170-50080i198911-199208

main81170-50090i199208-199306

main81170-50091i199306-199410

81210DBULB, FOG LAMP

main90981-13027×2i198911-199410

9007510004

main90075-10004

9007510808

main90075-10808

9015360009

main90153-60009

9015960412

main90159-60412

9017906224

main90179-06224

13 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota CELSIOR

This section contains 16 genuine Toyota parts for the HEADLAMP system of the Toyota CELSIOR. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP, NO.1, COVER, HEADLAMP SOCKET.
