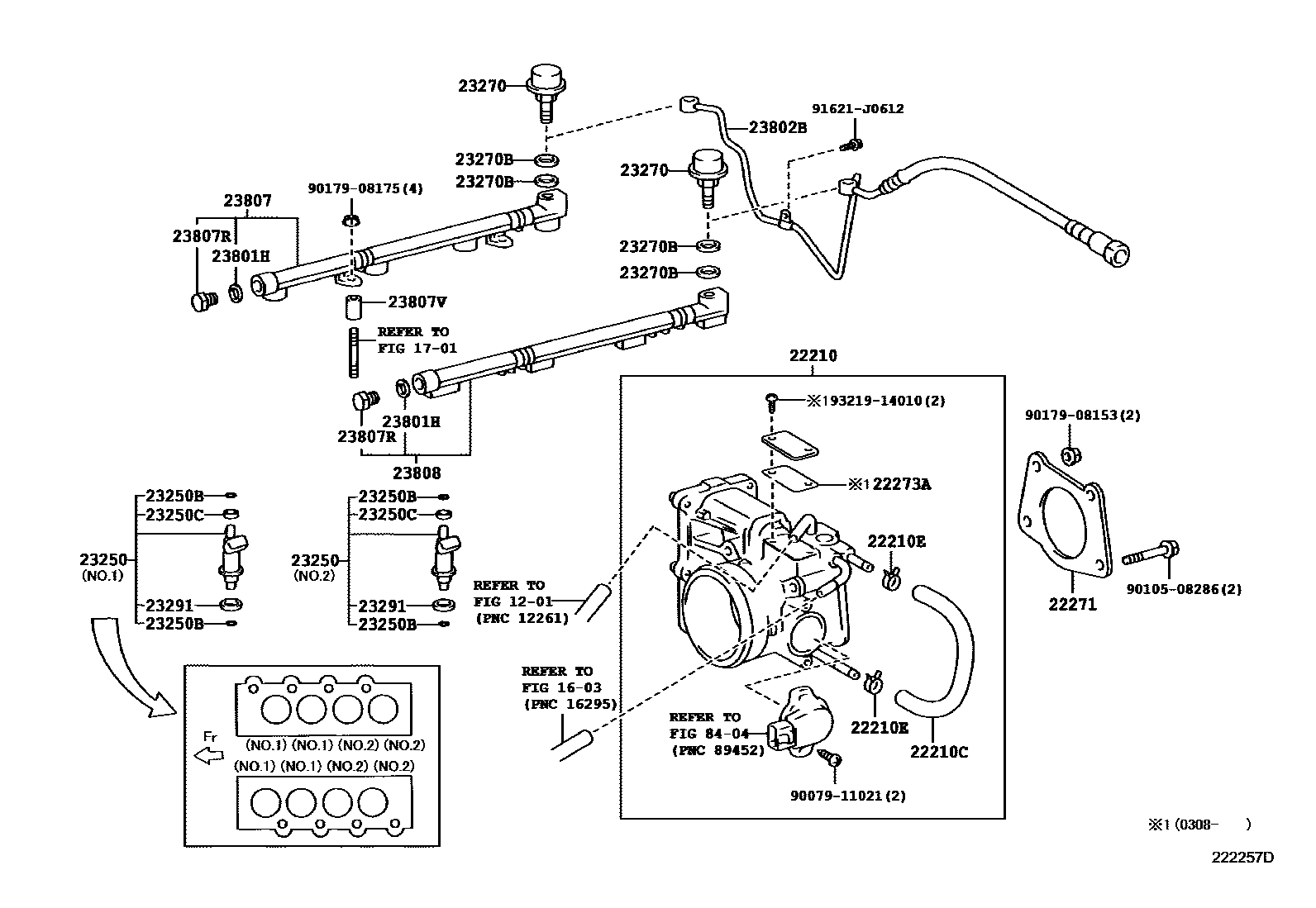

Toyota CELSIOR — FUEL INJECTION SYSTEM
1201VENTILATION HOSE
1603RADIATOR & WATER OUTLET
1701MANIFOLD
22210CHOSE, WATER BY-PASS, NO.1
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22271GASKET, THROTTLE BODY
22273AGASKET, THROTTLE BODY, NO.2
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23291INSULATOR, INJECTOR VIBRATION
23801HGASKET(FOR FUEL PIPE)
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23807RPLUG, FUEL DELIVARY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
8404ELECTRONIC FUEL INJECTION SYSTEM
9007911021
main90079-11021
9010508286
main90105-08286
9017908153
main90179-08153
9017908175
main90179-08175
91621J0612
main91621-J0612
9321914010
main93219-14010
27 parts on this diagram · 3 diagrams in section
FUEL INJECTION SYSTEM for Toyota CELSIOR
This section contains 38 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota CELSIOR. Key components include: VENTILATION HOSE, RADIATOR & WATER OUTLET, MANIFOLD, BODY ASSY, THROTTLE, HOSE, WATER BY-PASS, NO.1.
