Toyota CELSIOR — FRONT FENDER APRON & DASH PANEL

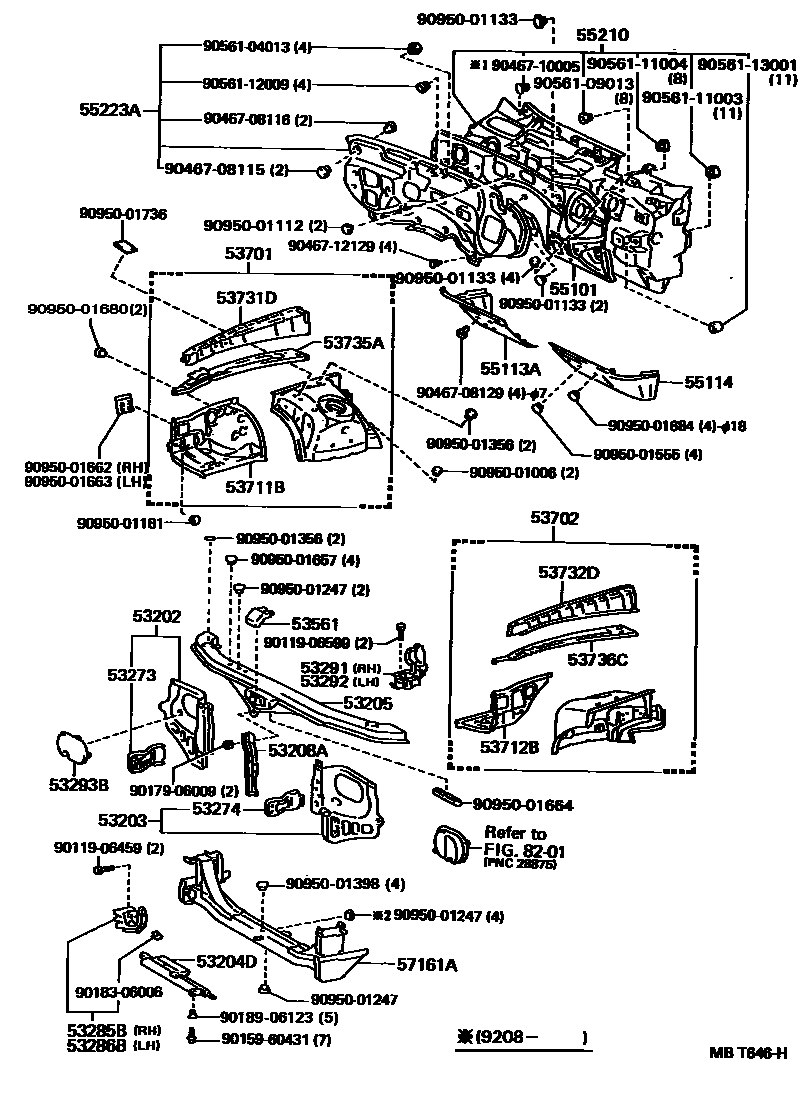

Parts diagram
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-50010i198911-199108
main53202-50011i199108-199410
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-50010i198911-199410
53204DGUIDE SUB-ASSY, LOWER WIND
main53204-50010i198911-199206
main53204-50011i199206-199410
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-50010i198911-199204
main53205-50011i199204-199208
sub53882-50020
main53205-50012i199208-199410
53208ASUPPORT SUB-ASSY, HOOD LOCK
main53217-50010i198911-199410
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
main53273-50010i198911-199410
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
main53274-50010i198911-199410
53285BSEAL, RADIATOR SIDE AIR, NO.1
main53285-50020i198911-199410
53286BSEAL, RADIATOR SIDE AIR, NO.2
main53286-50010i199308-199410
main53286-50020i199308-199410
53291SEAL, RADIATOR SUPPORT TO FRAME, RH
main53291-50020i198911-199410
53292SEAL, RADIATOR SUPPORT TO FRAME, LH
main53292-50020i198911-199410
53293BSEAL, RADIATOR SUPPORT SERVICE HOLE
main53293-50010i198911-199208
main53293-50011i199208-199410
53561GUIDE, HOOD AUXILIARY CATCH HOOK
main53561-50010i198911-199410
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-50030i198911-199208
sub53801-50012
sub53801-50022
sub53882-50020
main53701-50032i199208-199212
main53701-50033i199212-199405
sub90179-06161
main53701-50034i199405-199410
sub53701-50035
main53701-50040i198911-199208
sub53801-50012
sub53801-50022
sub53882-50020
main53701-50042i199208-199212
sub48680-50060
sub48680-50070
main53701-50043i199212-199405
sub90179-06161
main53701-50044i199405-199410
sub53701-50045
main53701-50070i198911-199208
sub53801-50032
sub53882-50020
main53701-50072i199208-199212
sub48680-50060
sub48680-50070
main53701-50073i199212-199405
sub90179-06161
main53701-50074i199405-199410
sub53701-50075
main53701-50080i198911-199208
sub53801-50032
sub53882-50020
main53701-50082i199208-199212
main53701-50083i199212-199405
sub90179-06161
main53701-50084i199405-199410
sub53701-50085
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-50050i199101-199208
sub53802-50012
sub53802-50022
sub53882-50020
main53702-50052i199208-199212
sub48680-50060
sub48680-50070
main53702-50053i199212-199405
sub90179-06161
main53702-50054i199405-199410
sub53702-50055
main53702-50060i198911-199208
sub53802-50012
sub53802-50022
sub53882-50020
main53702-50062i199208-199212
main53702-50063i199212-199405
sub90179-06161
main53702-50064i199405-199410
sub53702-50065
main53702-50090i198911-199208
sub53802-50032
sub53882-50020
main53702-50092i199208-199212
sub48680-50060
sub48680-50070
main53702-50093i199212-199405
sub90179-06161
main53702-50094i199405-199410
sub53702-50095
main53702-50100i198911-199208
sub53802-50032
sub53882-50020
main53702-50102i199208-199212
main53702-50103i199212-199405
sub90179-06161
main53702-50104i199405-199410
sub53702-50105
main53702-50112i199208-199212
sub48680-50060
main53702-50113i199212-199405
sub90179-06161
main53702-50114i199405-199410
sub53702-50115
53711BAPRON, FRONT FENDER, FRONT RH
main53711-50020i198911-198912
main53711-50021i198911-198912
53712BAPRON, FRONT FENDER, FRONT LH
main53712-50020i198911-199203
main53712-50021i199203-199410
sub53712-50901
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-50010i198911-199204
main53731-50011i199204-199208
sub53801-50012
sub53801-50022
sub53882-50020
main53731-50012i199208-199410
sub53731-50901
main53731-50020i198911-199204
main53731-50021i199204-199208
sub53801-50032
sub53882-50020
main53731-50022i199208-199410
sub53731-50900
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-50010i198911-199204
main53732-50011i199204-199208
sub53802-50012
sub53802-50022
sub53882-50020
main53732-50012i199208-199410
sub53732-50901
main53732-50020i198911-199204
main53732-50021i199204-199208
sub53802-50032
sub53882-50020
main53732-50022i199208-199410
sub53732-50900
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
main53735-50900i198911-199208
main53735-50901i198911-199208
main53735-50902i199208-199410
main53735-50903i199208-199410
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
main53736-50900i198911-199208
main53736-50901i198911-199208
main53736-50902i199208-199410
main53736-50903i199208-199410
55101PANEL SUB-ASSY, DASH
main55101-50901i198911-199206
main55101-50904i199206-199410
55113APANEL DASH, LOWER RH, W/INSULATOR
main55113-50901i198911-199410
55114PANEL DASH, LOWER LH, W/INSULATOR
main55114-50901i198911-199410
55210INSULATOR ASSY, DASH PANEL
main55210-50020i198911-199208
main55210-50021i199208-199410
55223AINSULATOR, DASH PANEL, OUTER
main55223-50020i198911-199205
main55223-50021i199205-199208
main55223-50022i199208-199410
main55223-50030i198911-199205
main55223-50031i199205-199208
main55223-50032i199208-199410
57161AMEMBER, FRONT CROSS, FRONT W/REAR
main57104-50030i198911-199212
sub90950-01759
main57104-50031i199212-199410
8201
9011906459
main90119-06459
9011906599
main90119-06599
9015960431
main90159-60431
9017906009
main90179-06009
9018306006
main90183-06006
9018906123
main90189-06123
9046708115
main90467-08115
9046708116
main90467-08116
9046708129
main90467-08129
9046710005
main90467-10005
9046712129
main90467-12129
9056104013
main90561-04013
9056109013
main90561-09013
9056111003
main90561-11003
9056111004
main90561-11004
9056112009
main90561-12009
9056113001
main90561-13001
9095001006
main90950-01006
9095001112
main90950-01112
9095001133
main90950-01133
9095001181
main90950-01181
9095001247
main90950-01247
9095001356
main90950-01356
9095001398
main90950-01398
9095001555
main90950-01555
9095001657
main90950-01657
9095001662
main90950-01662
9095001663
main90950-01663
9095001664
main90950-01664
9095001680
main90950-01680
9095001684
main90950-01684
9095001736
main90950-01736

60 parts on this diagram · 1 diagram in section
